Lenovo ThinkPad T410s Palm-rest Replacement

Written By: Nathan Barganier
  • Comments: 2
Lenovo ThinkPad T410s Palm-rest Replacement

Difficulty

Moderate

Steps

10

Time Required

25 minutes

Introduction

Is your Lenovo ThinkPad T410s mouse not moving or frozen? You might want to replace your palm-rest, and this guide will help you replace it!

  1. ESxyhMXepWMyjNXC

    • Flip the laptop over.

    • Push and hold the locking switch to the left.

    • Pull the battery out with your other hand.

  2. KpaADrpQlAoTgYyK
    KpaADrpQlAoTgYyK
    y4BTVxKW3qpDnFeN

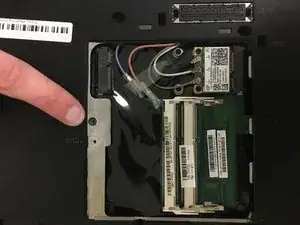

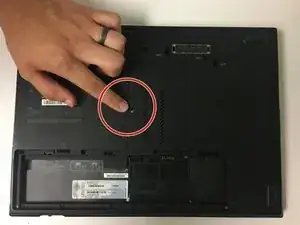

    • Remove the single Phillips #0 screw grin the back panel.

    • Pull the back panel off.

    Where place SSD?

    Emi Fukada -

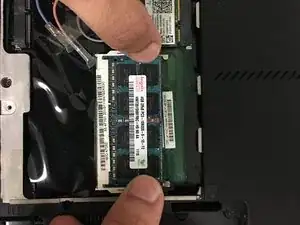

  3. NHy5rnPjbmj6JXY4
    NHy5rnPjbmj6JXY4
    h2AQL2Ubt6wFfVXk
    t2I4LBc4Q1w5CwMM

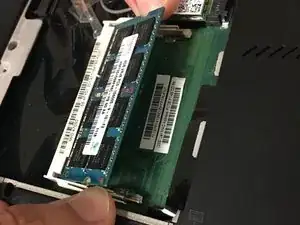

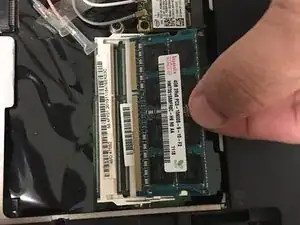

    • Pull the metal prongs at the side of the RAM away from each other.

    • The RAM will pop out of its socket when done correctly.

    • Pull the RAM out.

  4. N3RY2mQfLCbMSKH4

    • Remove the Flathead 2.5mm screw.

    • Flip the laptop over.

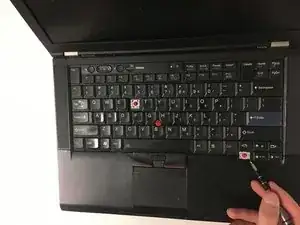

  5. KDaelvZM5V1yjx4H
    KDaelvZM5V1yjx4H
    MFLxNsjGqEV5og54

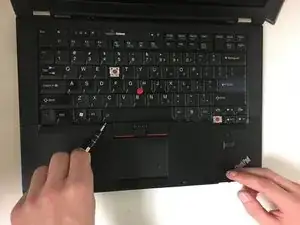

    • Wedge the flat end of a spudger, or plastic opening tool, under the end of the keyboard and pry up.

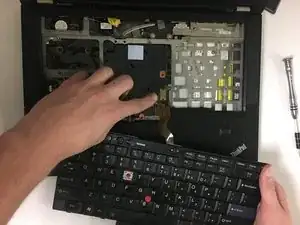

  6. NQSUdXRUCkBDCDO6
    NQSUdXRUCkBDCDO6
    KFajVvo5hUSjKDiD

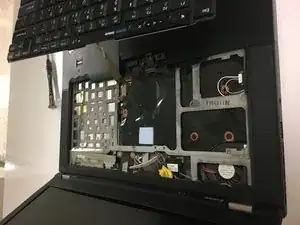

    • Slide the keyboard out of the way until you can see what's underneath it.

    • The keyboard is still attached with a ribbon cable so don't try to fully remove it.

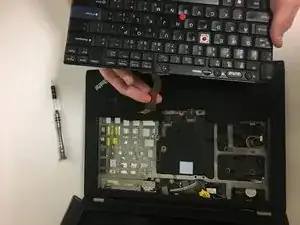

  7. uqCllDAOZDr6f4eJ

    • Use the flat end of a spudger to unplug the keyboard connector from the laptop.

    • Pull the keyboard out.

  8. BbyUCeBUBYGqH4U1

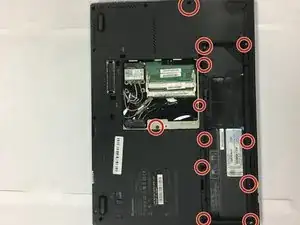

    • Remove the twelve Phillips #0 screws from the back panel.

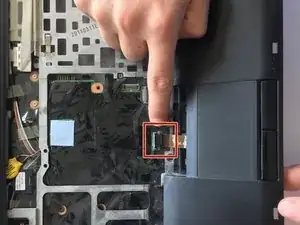

  9. YCO6eKGWsAtHZLm3
    YCO6eKGWsAtHZLm3
    psEiWOOLDbdYmWMT

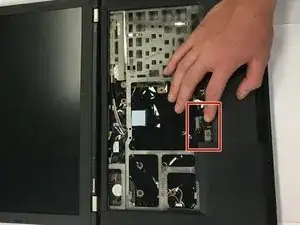

    • Up the flat end of a spudger to lift up the black tab on the ZIF connector.

    • Pull out the ribbon connector from the ZIF connector.

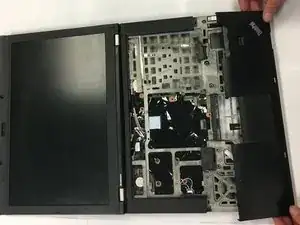

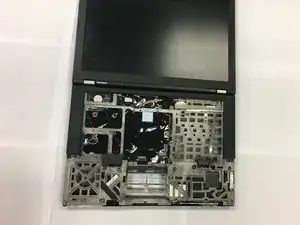

  10. T6adGQjtfvjDfs2P
    T6adGQjtfvjDfs2P
    CvlCBCplMQPTD3DF

    • Remove the palm rest from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
