Lenovo Tab 2 A8 Battery Replacement

Written By: Carli Ollerman
  • Comments: 2
Lenovo Tab 2 A8 Battery Replacement

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

This guide will show you how to safely remove the battery component of your tablet.

  1. 6qECp5iWUTFMapUe
    6qECp5iWUTFMapUe
    qXi1TqxFYKNmB4Dr
    O4xScjB5KuilPhxZ

    • Place the tablet face down on a soft, stable surface that will protect the screen.

    • Next, Scrape off the seal over the screw in the back of the tablet with a Metal Spudger.

    • Use the Phillips #000 Screwdriver to remove the M1.4 × 2.5 screw.

    • If the seal covering the screw has already been removed, please proceed to the next step in the process.

    • As the screw is small, you may wish to extract it using a pair of tweezers.

  2. JJsjKoQNdvvAwVmq
    JJsjKoQNdvvAwVmq
    WEnfcVIb5QFdqVa2
    iVTWtV356NURBbs6

    • Starting on the side, work your way around the the tablet to pop off the back cover. You will want to utilize a metal Spudger for this.

    • Some force may be required initially to pry the back cover off.

    • Note that the button tabs for this device are loose inside the case and will fall out when opening.

  3. sYmw4LuUcDZiMNxO
    sYmw4LuUcDZiMNxO
    kV4Fb6ZxRDejVxKK

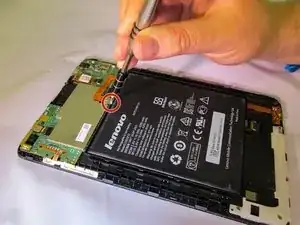

    • Using a counterclockwise motion with the Phillips #000 screwdriver, remove the M1.4 × 2.5 screw that holds down the copper strip connected to the battery.

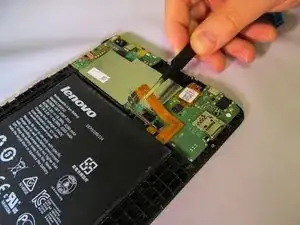

    • With a pair of Tweezers, carefully unplug the strip connecting the battery to the motherboard.

  4. V14jsP25NtukntWy
    V14jsP25NtukntWy
    VCUPpMSLdYsNCoWc
    Qx2TMDWMav62ksWu

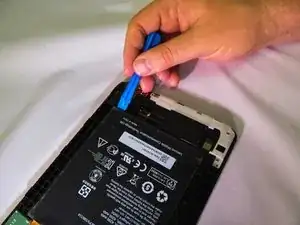

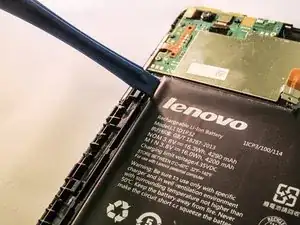

    • Working your way around the edge of the battery, pry out the battery using a plastic opening tool

    • Be aware that the battery is held in by double-sided tape on the underside

Conclusion

To reassemble your device, follow these instructions in reverse order.
