Lenovo Tab 2 A10-70 Rear Facing Camera Replacement

Written By: Tyler Hagenlocher
  • Comments: 0
Lenovo Tab 2 A10-70 Rear Facing Camera Replacement

Difficulty

Very easy

Steps

4

Time Required

3 minutes

Introduction

The removal and replacement of the camera requires detaching the camera from the tablet's motherboard.

  1. 6jTUmkgv3YDwC5J2

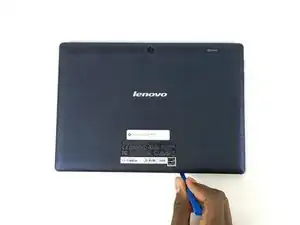

    • Before removing the camera, make sure the device is powered off

    • Use a plastic opening tool to pry open the back cover of the tablet..

  2. NyBpGJS4eWYWUryZ

    • Locate the cable that is connecting the camera to the tablet

  3. gkJjRkoY3quSy3mQ

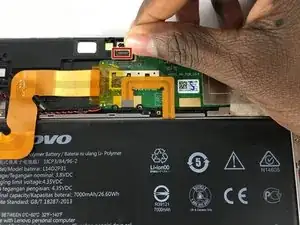

    • Disconnect the cable that is connecting the camera to the tablet

  4. JtRY4rgUVFcQeXJG
    JtRY4rgUVFcQeXJG
    r3siXi4IsHubjBqb

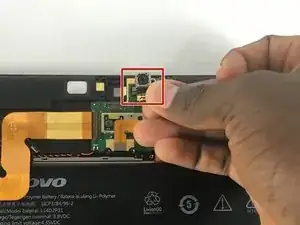

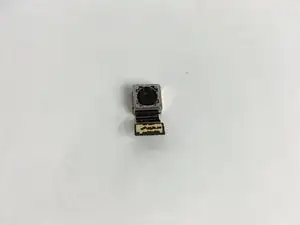

    • Simply remove the camera from the tablet by lifting it up

    • Repeat Steps in reverse order with a new camera for reassembly

Conclusion

To reassemble your device, follow these instructions in reverse order.
