Lenovo Tab 2 A10-70 Power Button Replacement

Written By: Tyler Hagenlocher
  • Comments: 1
Lenovo Tab 2 A10-70 Power Button Replacement

Difficulty

Moderate

Steps

3

Time Required

15 minutes

Introduction

In order to remove and replace the power button on your tablet, a soldering iron will be needed.

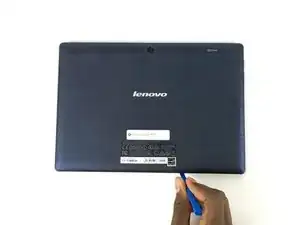

  1. raWpNER5KtS2NIkW
    raWpNER5KtS2NIkW

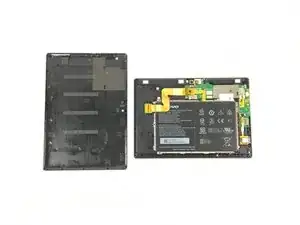

    h5CDiusswaaZkPrk

    • Use a plastic opening tool to pry open the back cover of the tablet.

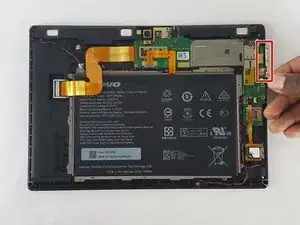

  2. bgeCea3BvXDXefme

    • The power button strip is only held in place by a small piece of double-sided tape.

    • Gently use the precision tweezers to separate the power button strip from the interior frame of the tablet.

  3. JdhfYDPEBGHBh6Q6

    • Be careful with the soldering iron to avoid injury.

    • Remove the power button from the motherboard.

    • Use the soldering iron to heat up the connections. Gently pull away from the motherboard after connections are detached.

Conclusion

To reassemble your device, follow these instructions in reverse order.
