Lenovo Ideapad Yoga 2 11 Speakers Replacement

Written By: Andria Chen
  • Comments: 0
Lenovo Ideapad Yoga 2 11 Speakers Replacement

Difficulty

Easy

Steps

7

Time Required

8 minutes

Introduction

If your speakers no longer work correctly, this guide will teach you how to remove the laptop's speaker.

  1. EWSfhXHOK3w2dwkF

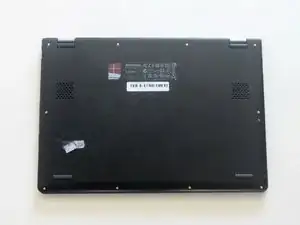

    • Begin by turning your closed laptop so that you are looking at the bottom panel.

  2. NMUm6rQXw5NbaAD3
    NMUm6rQXw5NbaAD3
    rAZkW4k3sM2CMPYr

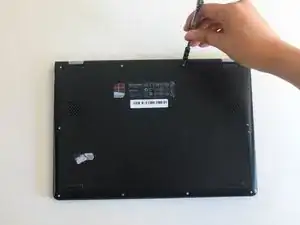

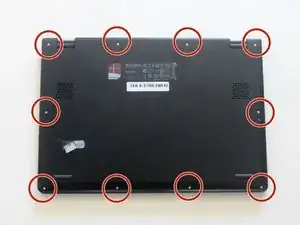

    • Locate the 10 screws (6mm) around the border of the panel.

    • Using the Torx T5 Screwdriver, remove the screws.

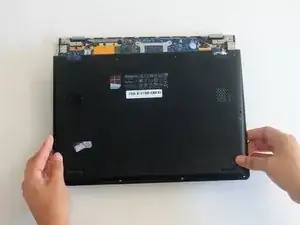

  3. VPUgDIUBErbtVFqN

    • Now that the screws are removed, gently lift the back panel upwards to detach it from the rest of your laptop.

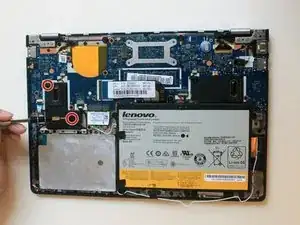

  4. WAECWQ6rS5VIveg5
    WAECWQ6rS5VIveg5
    IwveBPyErXyhXNXH

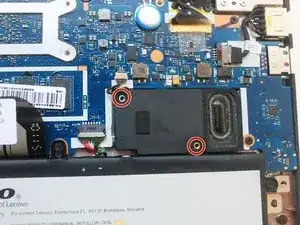

    • Remove 2 screws (2mm) from each of the speakers, 4 screws total, using the PH #000 screwdriver.

  5. mKJNyW6Y2DgYkZHQ
    mKJNyW6Y2DgYkZHQ
    rLy4eDfZL3mNLUYt

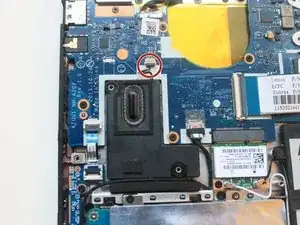

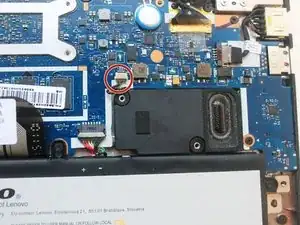

    • Locate the connecting cables.

  6. BNljKJgjMqRnalqE
    BNljKJgjMqRnalqE
    xNpDWsanJSTwnmoX

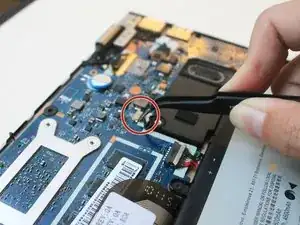

    • Unclip the cables by pulling downwards gently using tweezers.

  7. qQoF5SDaGyI4OC2S

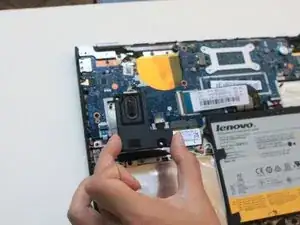

    • After the cables are disconnected, remove the speakers by lifting the speakers up.

Conclusion

To reassemble your device, follow these instructions in reverse order.
