Lenovo Ideapad Gaming 3 15ACH6 Battery Replacement

Written By: Clay Eickemeyer
  • Comments: 1
Lenovo Ideapad Gaming 3 15ACH6 Battery Replacement

Difficulty

Moderate

Steps

7

Time Required

15 - 30 minutes

Introduction

Use this guide to replace the battery in your Lenovo IdeaPad gaming 3 15ACH6.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. HPhuetqYflX5CeT5
    HPhuetqYflX5CeT5
    rXLCOyP5qywNFGEW

    • Use a Phillips screwdriver to remove the 10 screws securing the lower case:

    • Six 12 mm screws

    • Four 4.5 mm screws

  2. dylbWEGULAWP1TvI
    dylbWEGULAWP1TvI
    bDAUAVD4NvmNoLcp

    • Insert an opening pick between the lower case and the chassis on the front right edge.

  3. N6WRCXbxdBc1igll
    N6WRCXbxdBc1igll
    wfFUZOqUNyTNuUmL
    t55IUEGMClDEhZpG

    • Slide the pick along the front edge to release the clips securing the lower case.

    • Continue sliding the opening pick along the left and right edges to release the remaining clips.

  4. aFGUYH6XSscA3rpf
    aFGUYH6XSscA3rpf
    qUNUjcKWs6u63m1V
    cBetHH2deID2UNXl

    • Lift the lower case from the chassis and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

    May be important to note that the power button is in the middle top of the keyboard and thus it would be safest to open the lid sideways with the lid partly open on a clean surface as to not drop or touch the pcb/mother board with the work surface.

    The Muse -

  5. BvlLv5VLwbsbfbAf
    BvlLv5VLwbsbfbAf
    CFWPhS4XTQsy2SK6
    6dwh1PKQLUPl4Jrj

    • Use the pointed end of a spudger to push each side of the battery connector until it comes out of the socket.

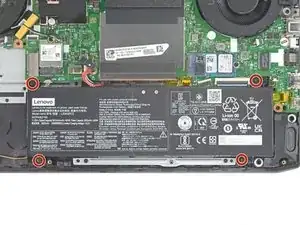

  6. K2BQ2Qs35HDipJAq

    • Use your Phillips screwdriver to remove the four 5.6 mm-long screws securing the battery.

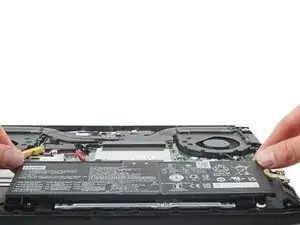

  7. c24b2FeBjYWTFMtc
    c24b2FeBjYWTFMtc
    kJaVVZGdX3yRbe5X

    • Remove the battery from its recess.

Conclusion

To reassemble your device, follow these instructions in reverse order.

For optimal performance, calibrate your newly installed battery after completing this guide.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Lenovo IdeaPad answers community for help.
