Lenovo IdeaTab S6000 Vibration Motor Replacement

Written By: Gabriel Delgado
  • Comments: 2
Lenovo IdeaTab S6000 Vibration Motor Replacement

Difficulty

Moderate

Steps

7

Time Required

10 minutes

Introduction

The following guide details the necessary steps that you have to follow in order to replace the vibration motor for the Lenovo IdeaTab S6000.

  1. PsUJfLXuNB1vCknu

    • Remove the speaker screens by working them loose with a plastic opening tool. You may need to first loosen them with tweezers or a craft knife.

    • These screens are held in place by glue that is hard to remove. Please take your time to ensure that that this step is done correctly.

    I little bit of heat goes a long way when taking off the speaker screens.

    iHelpU.Tech -

  2. iVfVDxnYOKkoPuBX

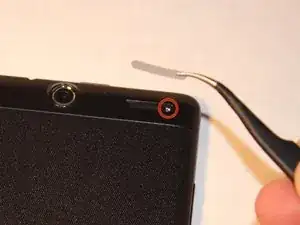

    • Remove the screws from both of the spots that were covered.

  3. dCtAIW4dGgVEkAtn

    • DO NOT USE A METAL TOOL FOR THIS.

    • Go all around the casing, prying the screen away from the backing with the spudger.

    • It will make a popping sound each time one of the lock tabs is disconnected.

    • Take your time as you move all around the device when prying the backing off.

  4. D3JPUggmKoY6psgv

    • Pull off the plastic that is covering the battery cable.

  5. 2B6VZHmrTEb242v6
    2B6VZHmrTEb242v6
    ZBcIKU6YeU6qnVc2

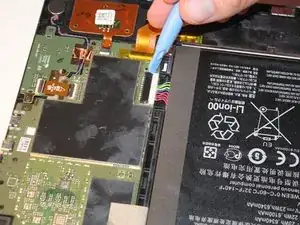

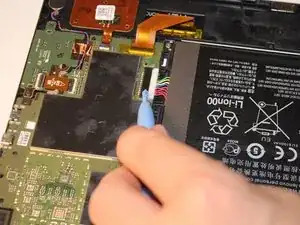

    • Using either the plastic opening tool or your fingers, gently pull on both sides of the plug to release it.

  6. rPT5qVMRWKvWCZGL

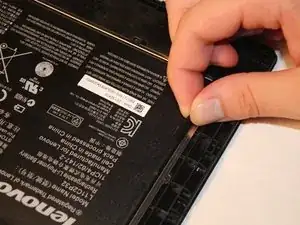

    • Remove the battery by grabbing the tab shown and pulling up.

    • The battery is held to the device by adhesive. Pull the battery up from the tab and it will lift out with a bit of effort.

    MERCI POUR LE TUTORIEL, et courage pour vulgariser la technique!

    KISANTU -

  7. sBQGINmrnfe2FJVx

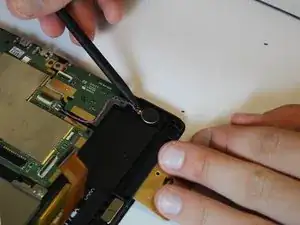

    • Use the spudger to pry up the vibration motor.

Conclusion

To reassemble your device, follow these instructions in reverse order.
