Lenovo IdeaTab G50 HDD, SSD Replacement Replacement

Written By: ZFix
  • Comments: 1
Lenovo IdeaTab G50 HDD, SSD Replacement Replacement

Difficulty

Easy

Steps

2

Time Required

10 minutes

Introduction

Compatible models:

Lenovo IdeaTab G50-30, G50-45, G50-70, G50-80

How to replace / upgrade the memory module.

  1. WFvSVvYmXSepvtGX
    WFvSVvYmXSepvtGX
    AfLa6AtOZTt1t61w
    DGwE3QEFmWpYm4RW

    • Switch off the laptop.

    • Remove 3x Phillips screws.

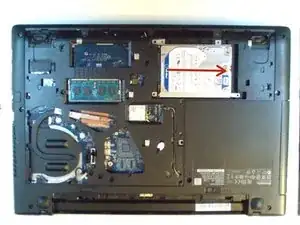

    • Slide forward the HDD cover and remove it.

  2. L53qGYH5lkAEWwdR
    L53qGYH5lkAEWwdR
    WftcbIsUcZyVaNWD
    1qJYUlkpHKtNf4FC

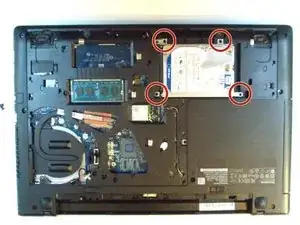

    • The HDD is secured by 4x Phillips screws. Remove them.

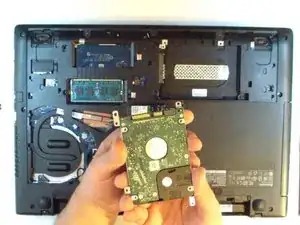

    • Two metal brackets are secured to the HDD by 4x Phillpis screws. Remove and install them to the new HDD or SSD.

    • Storage - Hard Drive Serial ATA-300, 2.5inch.

    • .

    • Please SUBSCRIBE to my channel ツ

Conclusion

To reassemble your device, follow these instructions in reverse order.
