Lenovo IdeaPad Flex 5-1470 Motherboard Replacement

Written By: Randall Welton
  • Comments: 0
Lenovo IdeaPad Flex 5-1470 Motherboard Replacement

Difficulty

Moderate

Steps

6

Time Required

20 - 25 minutes

Introduction

This is a guide for how to replace a Lenovo IdeaPad Flex 5-1470 motherboard. Common reasons to replace the motherboard are because of overheating, power surges, old age or just overuse.

  1. h4f2IxJTkqCRG5UV

    • Remove all ten 6.6 mm screws with a Phillips #00 screwdriver.

  2. nO5vhpUNeoqgOO3r
    nO5vhpUNeoqgOO3r
    Tfi2aK5FGoQXC6PH

    • Use the plastic opening tool to lift up and remove the casing.

  3. 1qZkwhunSHKWvtcw

    • Remove the single 3.6 mm screw using a Phillips #00 screwdriver.

    • The SSD will pop up on its own after removing the screw.

  4. akWN4tqGCbWl1VuA
    akWN4tqGCbWl1VuA
    SImn1UkEG2Eq2D3W
    WcxNZM6CDOAZQ1mb

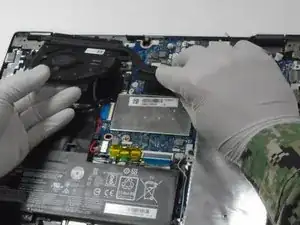

    • Use a Phillips #00 screwdriver to remove the three screws securing the fan.

    • Lift the fan up and out.

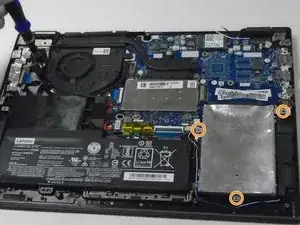

    • Use a Phillips #00 screwdriver to remove the three screws securing the hard drive.

    • Lift the hard drive up and out.

  5. jDLT41m2iQmDNfek
    jDLT41m2iQmDNfek
    a4fkxFcPOdeLROjO

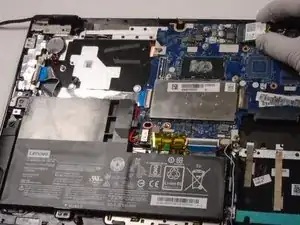

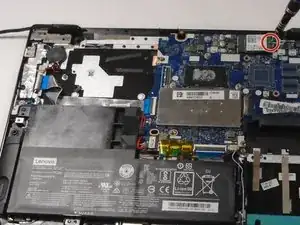

    • Use a Phillips #00 screwdriver to remove the single screw securing the Wi-Fi card.

    • The Wi-Fi card will slightly lift away from the motherboard.

    • Pull the Wi-Fi card directly out of its port.

  6. cUZfEB2QxIgbLcNP
    cUZfEB2QxIgbLcNP
    JwYZJLGT1mwLm6vr

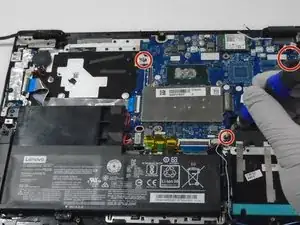

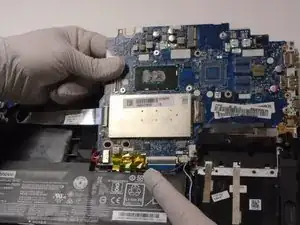

    • Use a Phillips #00 screwdriver to remove the three screws securing the motherboard.

    • Gently disconnect the cables and ribbon cables connected to the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Randall Welton

Member since: 11/02/22

250 Reputation

0 comments
