Introduction
This is a step by step guide to replace the Wi-Fi card inside the Lenovo IdeaPad Flex 5 Chrome 13ITL6.
-
-

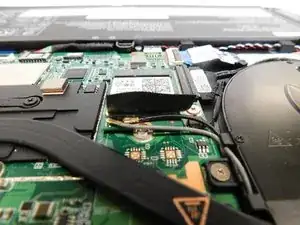

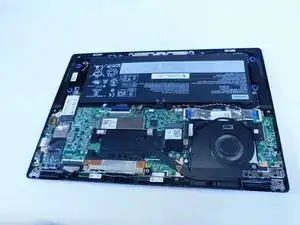

Locate the Wi-Fi card. For this device, it can be seen next to the fan.
-

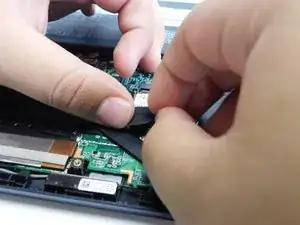

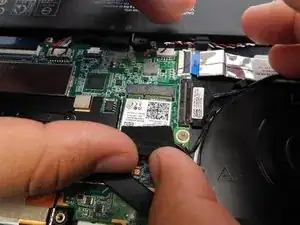

Lift up the black tape to expose the cables, and gently disconnect them.
-
-
-

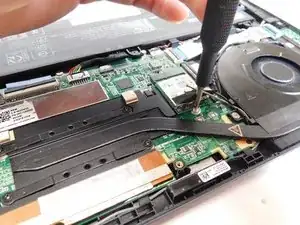

Use a Phillips #00 screwdriver to remove the screw that secure the Wi-Fi card.
-

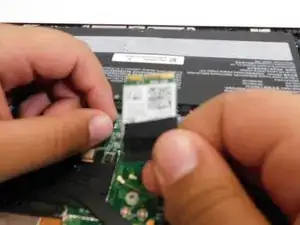

To remove the card, lift up and pull.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
