Lenovo IdeaPad Flex 5 Chrome 13ITL6 Battery Replacement

Written By: Rigoberto
  • Comments: 0
Lenovo IdeaPad Flex 5 Chrome 13ITL6 Battery Replacement

Difficulty

Easy

Steps

7

Time Required

9 minutes

Introduction

If you need to reinstall a new battery for your Lenovo IdeaPad Flex 5 Chrome 13ITL6 this is a step by step guide to follow. For this guide the following tools will be needed.

This guide is estimated to take 15 minutes

  1. P1FTDhWZKWH3lrtL
    P1FTDhWZKWH3lrtL
    iFRHu4U5E1bIxbM4

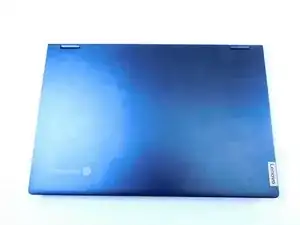

    • Make sure the computer is powered off and disconnected.

  2. uKgikfpdkw2nl2uQ
    uKgikfpdkw2nl2uQ
    2RQVKfrttVwMRGZn
    4MyMDalFjOgLS64R

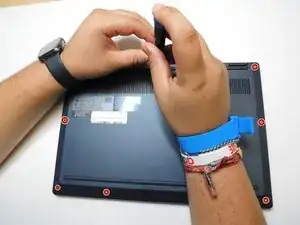

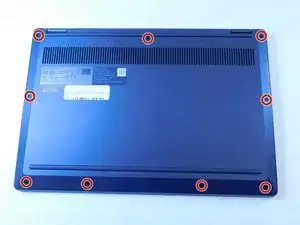

    • Flip the computer over.

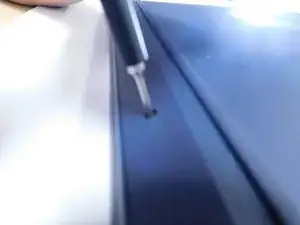

    • Unscrew the 9 case screws with the T5 screwdriver.

  3. VvJywdIXlUGeDBkh

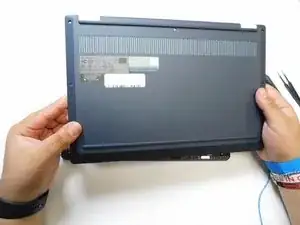

    • Open the back of the device this will require some pressure it is recommended to use the opening tool for this task.

  4. STlvXsIuoIvLkKyE
    STlvXsIuoIvLkKyE
    NYYwwhsD2XZL4v22

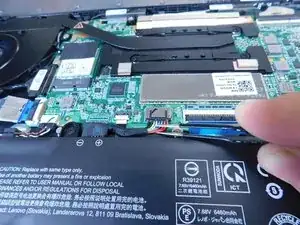

    • Disconnect the 8 cable pin that is connected to the battery.

  5. gsoQ1iO5EeBiDnRw
    gsoQ1iO5EeBiDnRw
    PTCqxQqYZJsM1S41

    • Remove the 5 screws that secure the battery using the Phillips #0 screwdriver.

  6. NoAWqPHxHBLfDUZZ

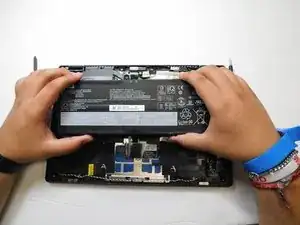

    • Take out the battery and replace it with the new one.

  7. nSHvXJyWGJAIw2EE
    nSHvXJyWGJAIw2EE
    1TdBABabUnDKeGnM
    VPZwxDxR1MmDMIqk

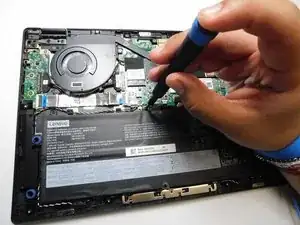

    • Do the reverse to put device back

Conclusion

To reassemble your device, follow these instructions in reverse order.
