Lenovo IdeaPad 330-15AST RAM Replacement

Written By: Chloe Powell
  • Comments: 0
Lenovo IdeaPad 330-15AST RAM Replacement

Difficulty

Easy

Steps

6

Time Required

10 - 15 minutes

Introduction

Guide to safely and effectively replace the Lenovo IdeaPad 330-15AST RAM without damaging the device.

  1. WCIJeGS1GOqHbLtI

    • Remove the 7 mm Phillips screw from the back of the laptop that secures the optical drive in place.

  2. ZNEkgVdPDghFGvEq

    • Carefully slide the optical drive out of the laptop.

  3. 2SxCdkIJEOMFBL6J

    • Remove the twelve 7 mm Phillips screw from the back of the device.

  4. jdULFeK2QsOvsshP

    • Use opening picks or a plastic pry tool to remove the cover on all sides then lift.

  5. krBiHoskyPoIoEKw

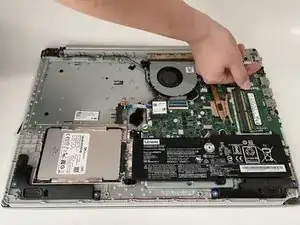

    • Pull the metal arms out slightly that hold the RAM secure by applying pressure with your finger.

  6. xxCe51G44LMr3ecg

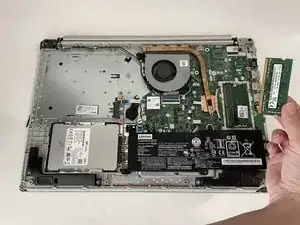

    • Slide the RAM stick out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
