Lenovo IdeaCentre K410 Optical Drive Replacement

Written By: Timothy Grebe
  • Comments: 0
Lenovo IdeaCentre K410 Optical Drive Replacement

Difficulty

Moderate

Steps

4

Time Required

15 minutes

Introduction

  1. UBTUMVnaBEja4ZX4

    • Lay the computer down on its side as shown.

    • Remove the two 14mm screws shown. The screws are loose enough to unscrew with your hands.

  2. QnWISHe21gjfTKhK

    • Gently slide the side panel straight back and remove from the computer.

  3. pGxs4mkNmvHaeA4Q
    pGxs4mkNmvHaeA4Q

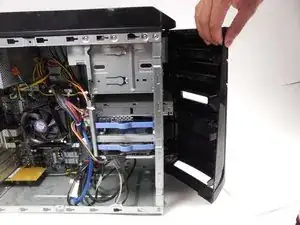

    MKsPHsXsWyXWAFQe

    • Pull up on the three tabs shown

    • Swivel the front panel so the front is open, and gently pull the cover off

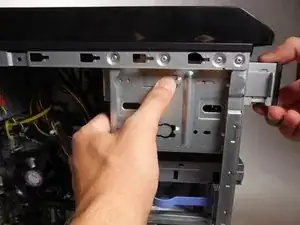

  4. QHNr6afo3Set1pGD

    • Push down on the button that says "push" while pulling the optical drive outward.

Conclusion

To reassemble your device, follow these instructions in reverse order.
