Lenovo Flex 2-15 RAM Replacement

Written By: Levi McCauley
  • Comments: 0
Lenovo Flex 2-15 RAM Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

  1. 1rEsJd3WXdrsSRv2

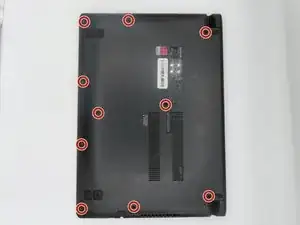

    • Begin by taking the back plate off of your device.

    • Using a Phillips head screw driver, take out the highlighted screws for your device.

  2. QseE4RnPvioWxTLX
    QseE4RnPvioWxTLX
    FUOBTyVRCDGCQvky

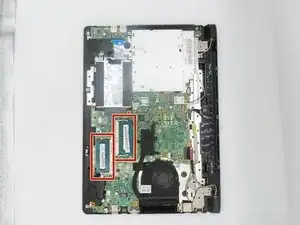

    • Once the back plate is off, locate the RAM sticks that lie next to one another on the device's motherboard.

    • The RAM is highlighted here.

  3. gkvyEnhAfNgSUs4b
    gkvyEnhAfNgSUs4b
    G6V2i4YOq6YHRbSo
    jGDtEEs4EDNPAJvr

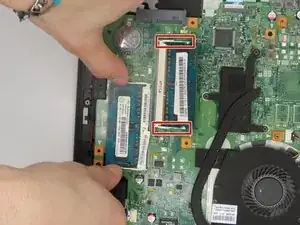

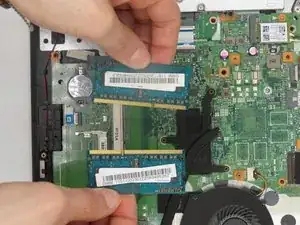

    • Pull the small metal tabs holding the RAM sticks in place outward to free it.

    • Be sure to be gentle with the tabs when removing the RAM as they can be considered delicate or fragile.

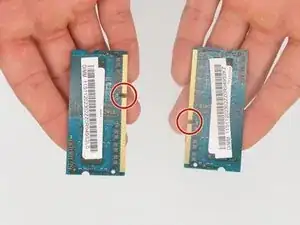

    • Note when reinstalling your RAM replacements, be sure to line the highlighted grooves up with the designated slot and push the tabs inward to seat the new RAM correctly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
