Lenovo A8-50 Battery Replacement

Written By: Jay Shah
  • Comments: 0
Lenovo A8-50 Battery Replacement

Difficulty

Easy

Steps

5

Time Required

5 - 10 minutes

Introduction

You will need a screwdriver with a PH000 head, and a prying tool.

  1. jGvj6GhrdxRbcgpu

    • Remove the back cover by prying it open with the metal spudger tool.

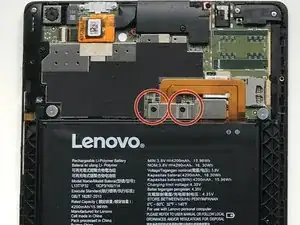

  2. LGEBTpMbYKhe3TKj

    • Remove the two screws with a PH000 head screwdriver.

    • Keep all your screws in one place.

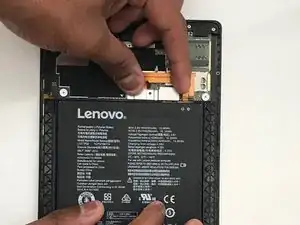

  3. BJrBG4CHgQTxELZM

    • Remove the metal piece.

    • Keep this piece safe, as you will need it to reassemble the device again.

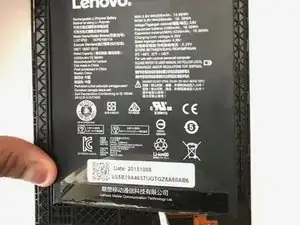

  4. UZyHVSR3PGsKd4DG

    • Remove the battery by lifting it up using a plastic spudger.

  5. CdYFDSoOCnUCNm4x

    • Disconnect the cable from the connection.

    • Be careful not to tear or bend the cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
