Lenovo 300e Chromebook 2nd Gen Trackpad Replacement

Written By: Sam Addington
  • Comments: 1
Lenovo 300e Chromebook 2nd Gen Trackpad Replacement

Difficulty

Moderate

Steps

5

Time Required

5 - 15 minutes

Introduction

  1. TQJDdlidJVfwKMVT
    TQJDdlidJVfwKMVT
    QlfdhyZmxX2yJ4eJ
    JPhTCDBnfACvvkMt

    • Make sure you power off your Chromebook first as you will be disconnecting the battery!

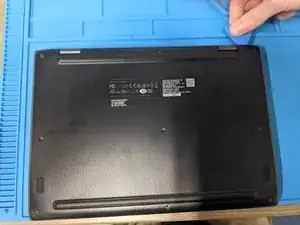

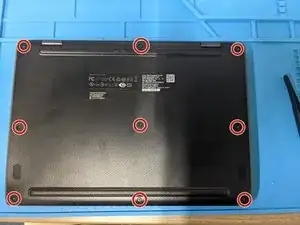

    • Remove all 9 screws on the back of the Chromebook with a Phillips #0 screwdriver

    • The screws circled on this Chromebook's back casing are all identical!

    • Use an opening tool such as a spudgerand carefully work your way around the laptop to remove the back cover

  2. 1BqgnWMaNFDApOyr
    1BqgnWMaNFDApOyr
    pg2P2dZfcAJGXuKZ

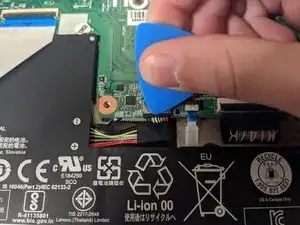

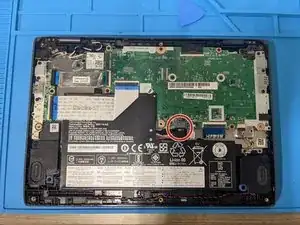

    • Remove the black tape covering the connector, then using a spudge tool, carefully unplug the battery from the motherboard

  3. MshbOByYC1VUAp1j
    MshbOByYC1VUAp1j
    NUBKfYLxSvDHVPIU

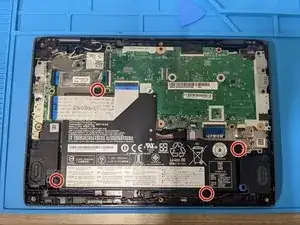

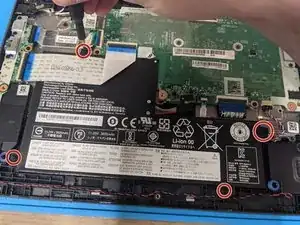

    • Remove the 4 screws holding in the battery and set them aside

    • Make sure to separate the screws for the battery from the screws for the backing that were removed in the first step!

  4. Ci6SIZkiJrj3TdY5
    Ci6SIZkiJrj3TdY5
    ZhKyQYDVtbkrSlEv
    PbmrqVWpSVGY53ci

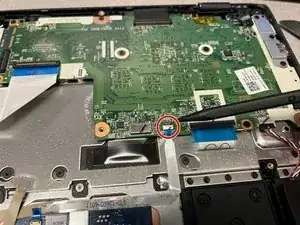

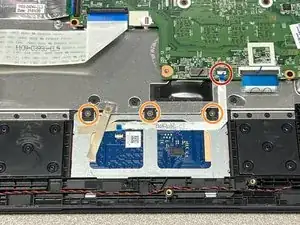

    • Disconnect the Trackpad Cable by lifting the Connector.

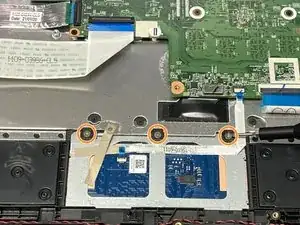

    • Remove the 3 screws holding in the top of the trackpad with a Phillips #0 screwdriver

  5. BWKNlY1U1mAHfp4L

    • Please make sure the Chromebook is open as the trackpad will come out from the inside of the device.

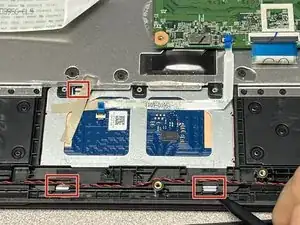

    • There are 3 tabs (2 at the bottom and 1 at the top left of the trackpad), using the Spudger, push the tabs to remove the Trackpad from the case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
