Lenovo 100e Chromebook (1st Gen) Wi-Fi/Bluetooth Card Replacement

Written By: Franco Iván Bello Rojas
  • Comments: 0
Lenovo 100e Chromebook (1st Gen) Wi-Fi/Bluetooth Card Replacement

Difficulty

Easy

Steps

5

Time Required

10 - 15 minutes

Introduction

Issues with your Wi-Fi/Bluetooth Card? No problem, it can be easily replaced!

  1. phJ26ipaHCIwEtyR
    phJ26ipaHCIwEtyR
    NmO2MASAPA16DTjW

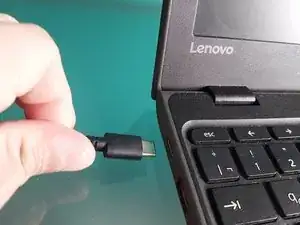

    • Unplug and turn off the chromebook device.

  2. xGq5pRZrWkAFnofX
    xGq5pRZrWkAFnofX
    crxcKjyRSjhkgTVr
    drxEnrxrbH2hYNBm

    • Turn the laptop over.

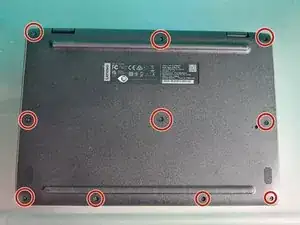

    • Remove the 10 phillips head screws and keep them organized.

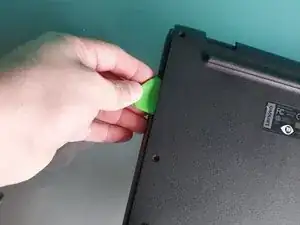

    • Using a Spudger, carefully separate the cover from the corner. It snaps back in, so make sure to not break any clips.

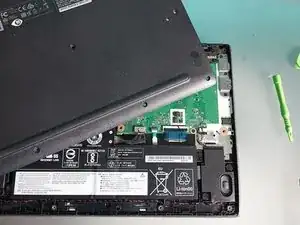

    • Take out the cover and set it aside.

  3. crTNusPZaBrJdvVF
    crTNusPZaBrJdvVF
    YiqxxZn1P34FMcbd

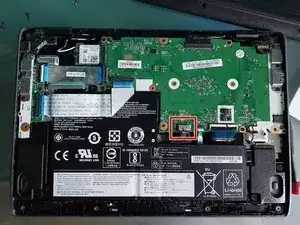

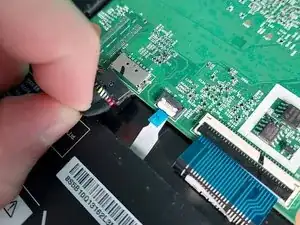

    • In the lower side of the motherboard you will find the battery connector.

    • To disconnect the battery, carefully pull the black connector in a parallel direction to the laptop.

    • Remember to take the conector out fully to avoid any shortcircuits.

  4. lRCGkUmsaXuBql6R
    lRCGkUmsaXuBql6R
    TVGyJ4qYHi5FsP2Z
    TUWphDlJypKsAXpD

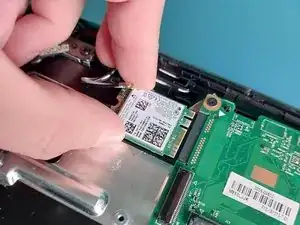

    • You will find the Card on the top left corner of the chassis.

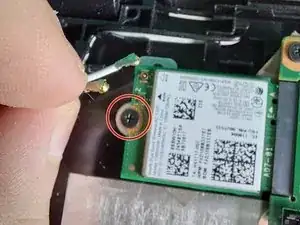

    • Carefully disconnect the antenna cables from the card with an upward movement.

    • Notice these cables have colors that match the ones printed on the sticker of the Card.

    • Remove the Phillips head screw.

    • Pull from the motherboard in a parallel direction.

  5. hcVWuZXPCdyohZT4
    hcVWuZXPCdyohZT4
    wIA4RuPt1FV6rGDN

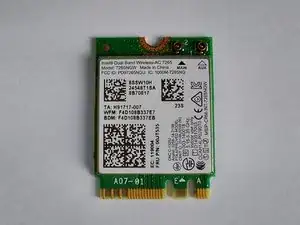

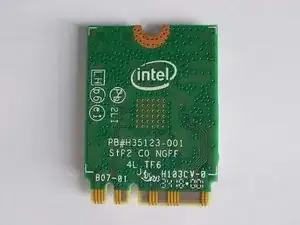

    • This is an Intel WiFi + Bluetooth Combo card. The model on this card is "7265NGW".

    • It has a M.2 1216 size format.

    • Wi-Fi 5 (802.11ac) and Dual Band (2.4 GHz and 5.0 GHz) compatible.

    • Bluetooth 4.2 compliant.

Conclusion

To reassemble your device, follow these instructions in reverse order. Congrats! You've upgraded your Wi-Fi Card.
