LG VX4500 display interconnect cable

Written By: David Foster
  • Comments: 0
LG VX4500 display interconnect cable

Difficulty

Difficult

Steps

22

Time Required

30 minutes

Introduction

Replacing the ribbon cable.

  1. ohT1vlqSxrOAdC5y

    • Turn the closed phone so that the back panel is facing you.

    • Press down and forward firmly on the gray tab in the middle of the phone.

  2. ACd62H4DpVReZaXb
    ACd62H4DpVReZaXb
    VQvYZ5fXOMC2dbQx

    • Now just lift up on the battery and remove it from the phone.

  3. uYNrOQUgl541HkbN

    • Remove the rubber grommet using a spudger.

  4. EdyHnK5CZWhtGYQM

    • Be sure not to lose the screws. They are small!

    • Remove the five screws using a Phillips #00 Screwdriver.

  5. XshLOkMrK3rYqjR3
    XshLOkMrK3rYqjR3
    vJ1oDroZYaVryoD4
    AYUiXChrxXxxQHRk

    • When removing back cover, be careful not to break the speaker wires.

    • Using an Opening Tool, carefully pry off the back cover.

    • Using tweezers, gently pull the speaker wires out.

  6. kNBesMtWdpIalaUJ

    • Separate the two halves.

  7. ChVJW3bfmQ6hKR6Q
    ChVJW3bfmQ6hKR6Q
    tIwehvTFrZprYHfG
    FiXQPCibPFDucpQT

    • Carefully pry and lift up on the logic board using an iPod Opening Tool.

  8. JJWbtqEBlxMHmJPR

    • Carefully flip the logic board up and out of the way.

  9. RQCkCYIpviY4O4sm
    RQCkCYIpviY4O4sm
    LvhIUKqFRHO4UYFK
    1OrdJhkiw1ekZSL1

    • Use an iPod Opening Tool to lift up on the keypad and pull it out.

  10. P31xjmYXFoFJgQUj

    • DO NOT TOUCH SOLDERING IRON. IT IS EXTREMELY HOT.

    • Use a soldering iron to desolder the solder joint on the front of the motherboard.

    • If you need more information on soldering, refer to this guide.

  11. iou1wXnhS2Vo2ygD

    • Desolder the joint on the back using a soldering iron.

  12. XNScLXogyNnFfN5N
    XNScLXogyNnFfN5N
    gPCXEEPhAlkAgbQb
    ZEbKSjHJOERUNdTB

    • Carefully detach the ribbon cable and remove the motherboard.

  13. OKZkQUp5oOtTZoXG

    • Remove 4 rubber grommets using the Spudger.

  14. KDwvnZhssAbSLa5G

    • Remove 4 screws using the Phillips #00 Screwdriver.

  15. IADSm6pAqXPTCmeu
    IADSm6pAqXPTCmeu
    V1uLBqbmJRRYRAHt
    bXVSNMAiri2KDbkC

    • Carefully pry off outer cover using iPod Opening Tool.

  16. KXLEAaRROHTSbRfk
    KXLEAaRROHTSbRfk
    QGQqFsRiSQIsfBA2

    • Remove speaker using the Spudger.

  17. EMQNRWLBdQeY4EMH
    EMQNRWLBdQeY4EMH
    yosQpNgf3fWNimCZ

    • Remove vibrator using the Spudger.

  18. bZx3EqCobITsVQrE
    bZx3EqCobITsVQrE
    2pBv6uPIZ6hmhsGI

    • Lift up LCD display using iPod Opening Tool.

  19. UEUHHUpjqFH2biuK

    • DO NOT TOUCH THE SOLDERING IRON. IT IS EXTREMELY HOT!

    • De-solder solder joint using Soldering Iron.

  20. paD3royYLcIRlwxi
    paD3royYLcIRlwxi
    1BtrvYUiR5eCZ4S1

    • Pry off ribbon cable using iPod Opening Tool.

  21. xGPboncRDY5ZlhVl
    xGPboncRDY5ZlhVl
    Kta1jqxtFJp4ZmIE
    sJkQ5QhaapbDuHxV

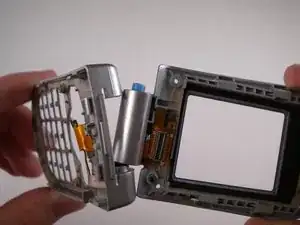

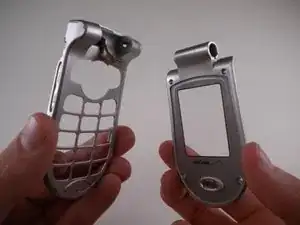

    • Turn phone so that the back side is facing you.

    • Press blue button and remove top half using Spudger.

  22. CoQOFruJHQ3EOXWW
    CoQOFruJHQ3EOXWW
    nJEQKKoEOIT6obyR

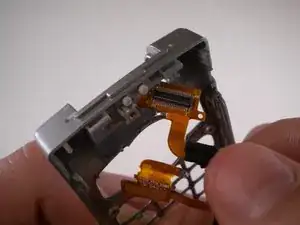

    • Remove cable from bottom section.

Conclusion

To reassemble your device, follow these instructions in reverse order.
