LG Motion 4G MS770 Rear Facing Camera Replacement

Written By: Zarna Patel
  • Comments: 0
LG Motion 4G MS770 Rear Facing Camera Replacement

Difficulty

Moderate

Steps

8

Time Required

7 - 10 minutes

Introduction

Replacing the rear facing camera that is malfunctioning or has a cracked lens and is unusable.

  1. lOj6OmOhCyDw3VnE

    • Use a plastic opening tool to remove the back cover.

  2. lLyrPuVyyMosanJt

    • Use a plastic opening tool to remove the battery, lifting from the bottom right corner.

  3. SsBQvGY2TMpHi6nk

    • Use a Phillips #00 Screwdriver to remove all eight 4mm screws.

  4. NCn4rAXXTDWlQnWJ
    NCn4rAXXTDWlQnWJ
    AAmvJEvQqn3VcUEe

    • Use a plastic opening tool to remove the back trim by working around all of the edges.

  5. OGDhhVOMxAPudF46
    OGDhhVOMxAPudF46
    HUl1GRtUiPeUYx5B

    • Remove the volume buttons from the side.

  6. OI4ggXAeULt4BLlI
    OI4ggXAeULt4BLlI
    OgbeN1JFcml13iYV

    • Use a plastic opening tool to lift the speaker off by prying under the silver square as shown.

    • Note: There is a small tab underneath the speaker that will be lifted off when the speaker is removed.

  7. cYU6m6TtvfJXpxWS

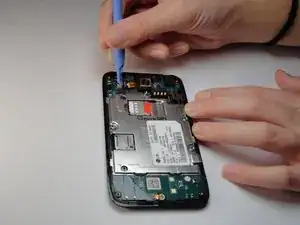

    • Pry slightly underneath the tab attached to the camera until it pops off.

  8. w46YwpsqWOUGva26

    • Use tweezers to remove the camera, you will need to use some force as it is glued on.

Conclusion

To reassemble your device, follow these instructions in reverse order.
