LG Motion 4G MS770 Motherboard Replacement

Written By: Zarna Patel
  • Comments: 0
LG Motion 4G MS770 Motherboard Replacement

Difficulty

Moderate

Steps

10

Time Required

15 minutes

Introduction

If phone will not turn on or has system errors and the troubleshooting did not help then replace the broken motherboard with a new one.

  1. lOj6OmOhCyDw3VnE

    • Use a plastic opening tool to remove the back cover.

  2. lLyrPuVyyMosanJt

    • Use a plastic opening tool to remove the battery, lifting from the bottom right corner.

  3. SsBQvGY2TMpHi6nk

    • Use a Phillips #00 Screwdriver to remove all eight 4mm screws.

  4. NCn4rAXXTDWlQnWJ
    NCn4rAXXTDWlQnWJ
    AAmvJEvQqn3VcUEe

    • Use a plastic opening tool to remove the back trim by working around all of the edges.

  5. OGDhhVOMxAPudF46
    OGDhhVOMxAPudF46
    HUl1GRtUiPeUYx5B

    • Remove the volume buttons from the side.

  6. OI4ggXAeULt4BLlI
    OI4ggXAeULt4BLlI
    OgbeN1JFcml13iYV

    • Use a plastic opening tool to lift the speaker off by prying under the silver square as shown.

    • Note: There is a small tab underneath the speaker that will be lifted off when the speaker is removed.

  7. cYU6m6TtvfJXpxWS

    • Pry slightly underneath the tab attached to the camera until it pops off.

  8. w46YwpsqWOUGva26

    • Use tweezers to remove the camera, you will need to use some force as it is glued on.

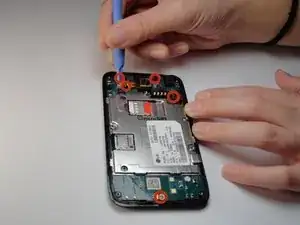

  9. Kp53VMxccrhU3sQS

    • Pry off the circled tabs using a plastic opening tool to release the motherboard.

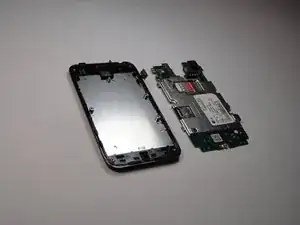

  10. 1ieSsJbad4KVOGLr

    • Lift the motherboard off of the phone. It should come right out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
