Introduction
This guide will show you how to replace a motherboard in your LG Leon LTE.
-
-

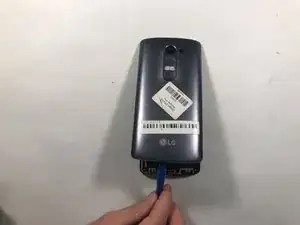

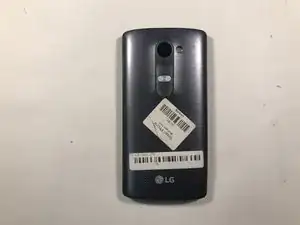

Insert your opening tool in the incision at the bottom center of the phone.
-

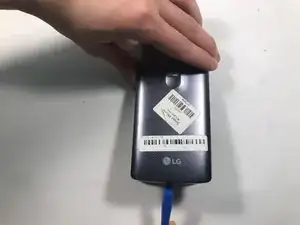

Push upward with the opening tool to pry the back of the phone open.
-

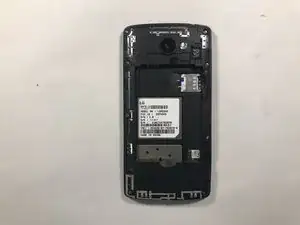

Remove the back completely and set aside.
-
-
-

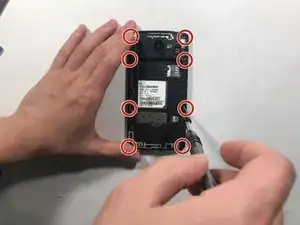

Using the Phillips #0 screwdriver, unscrew the 8 screws that secure the back frame to the body of the phone.
-

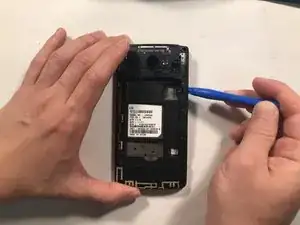

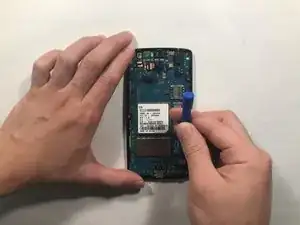

Once all screws are removed, use the opening tool to pry the back frame of the phone free.
-
-
-

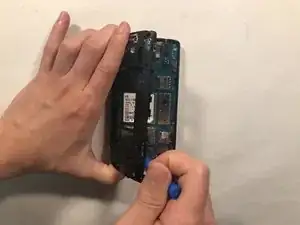

Using the opening tool, gently pry the phone's earpiece off. Set aside.
-

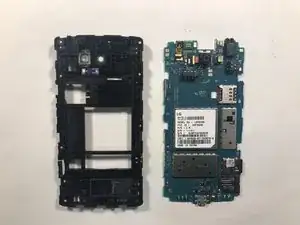

Separate the old motherboard from the phone fixture by pulling it apart.
-
Gently press the replacement motherboard into the phone fixture.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
