Introduction
Parts
-
-
Remove the back cover by placing your fingernail in the crease between the cover and the charging port.
-
Pry upward and the cover should pop off easily.
-
-
-

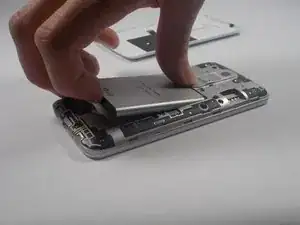

Remove the battery from the battery bay by prying with your finger at the groove on the lower end of the battery bay.
-
-
-

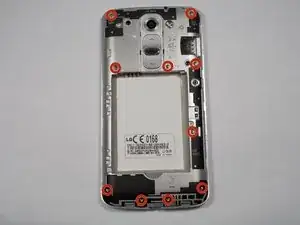

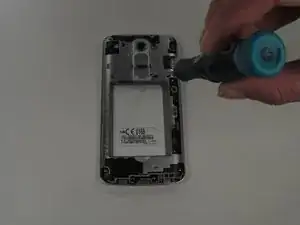

Use a plastic spudger tool to pry away the cover by placing it between the cover and the screen bezel.
-

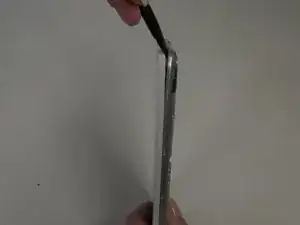

Pry all the way around the phone about every centimeter until the cover is completely separated from the phone.
-
-
-
Locate the rear facing camera.
-

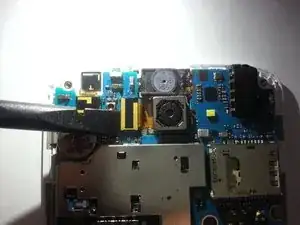

Pry the ribbon cable off of it's connector using the plastic spudger tool.
-

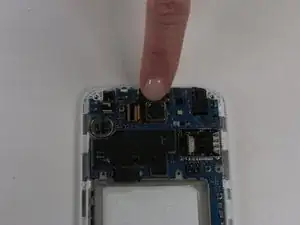

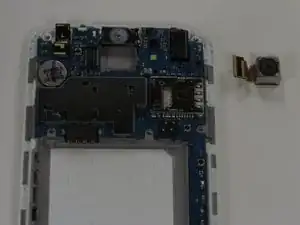

Use your finger to remove the camera.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
