LG G2 Charging Port Replacement

Written By: Nathan David Yellow Guy
  • Comments: 0
LG G2 Charging Port Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

The LG G2 (Except F320 Korean Variants) Have a replacable charging port which can be done by replacing the Sub board/Daughterboard or whatever you want to call it.

This guide is also a requirement for simple repairs such as battery replacements or screen replacements as the Battery and screen flex was burried under the Sub board

  1. 2Mdo2BGSHjCCYESd
    2Mdo2BGSHjCCYESd
    RKXC3C6xahHDbgyo
    OpW4HCxRKhcyNdBK

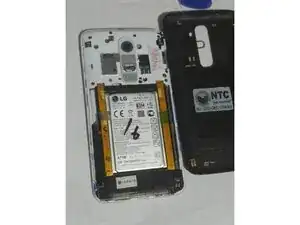

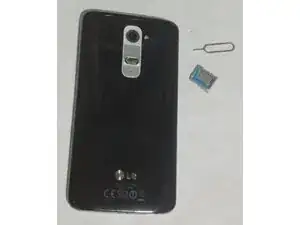

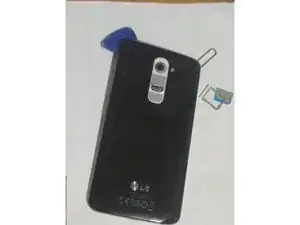

    • Removing the back cover was pretty easy on the LG G2, no adhesive, no heating required. All you need is a pick and your nails.

    • 1. Remove your SIM Card tray

    • 2. Pry on the back cover with your nails, then you can slide a guitar pick on it to continue to removal

  2. AMLpkSokhkLSCssL
    AMLpkSokhkLSCssL
    HIUQTIH3mcfRUXT2
    swUTjMf3hkUfGCal

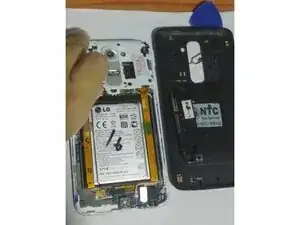

    • You can start with any part could be either the top or the bottom speaker part, as long you removed the screws

  3. uZo5SaKhvVlE5PxA
    uZo5SaKhvVlE5PxA
    VZCbGQKIMgqSG4HI
    3SRVRAZSBO6TuNvj

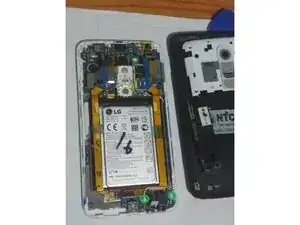

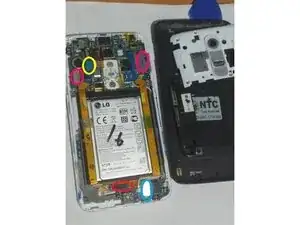

    • There are several connections to remove

    • Top digitizer connector

    • Sub board/Daugtherboard connections

    • Screen connection

    • Bottom digitizer connector

    • Antennas

    • Be aware that the Daughterboard connectors are adhered to the EMI Shield, in this case you can use tweezers to remove the shield along with the connectors. Please be careful using tweezers for this method

    • It is always recommended to disconnect the battery first before you disconnect any connections to avoid short circuit or other accidents occurring

  4. GixN1JfDCbsylXoU
    GixN1JfDCbsylXoU
    jwYHksiXQCHcYtXb
    3HXqZ2BV2v4UN6fZ

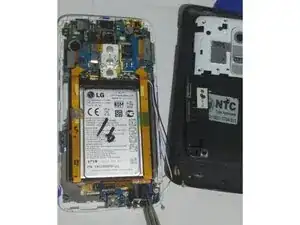

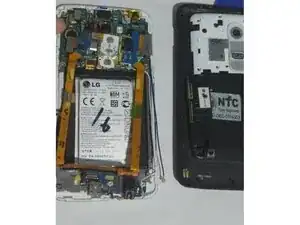

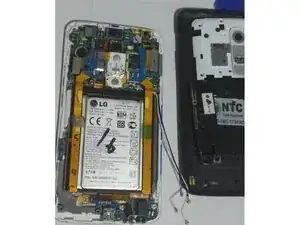

    • So you already disconnected everything and released the EMI shield which hides the eMMC chip on it, the daughterboard can be free with the use of tweezers

    • You can use tweezers or screw driver and insert it to the headphone jack but don't go far with it as you can damage your headphone jack if you go deep on it.

  5. 5iVBqRnqxaSOjVd3
    5iVBqRnqxaSOjVd3
    ybNrSZeqnLYr4LuL

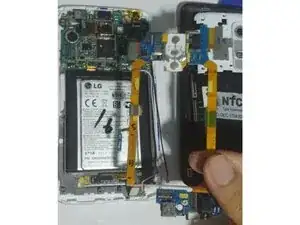

    • You now removed the daughterboard which has the charging port on it, this guide should work on every LG G2 variants except Korean LG G2 variants which is much similar to the LG G3.

    • This procedure is also required for the simplest repairs like battery replacements or screen replacements or motherboard repairs.

    • Just to simplify things up i decided to go up with this guide as removing the sub board isn't easy as there are some adhesives holding up but things can be done easier and successful with patience and care

Conclusion

To reassemble your device, follow these instructions in reverse order.

This applies to all LG G2 variants except Korean variants
