LG G Pad X 8.0 Motherboard Replacement

Written By: [deleted]
  • Comments: 3
LG G Pad X 8.0 Motherboard Replacement

Difficulty

Moderate

Steps

8

Time Required

15 minutes

Introduction

The motherboard replacement is more time extensive than a simple battery swap but should still be manageable for any novice. Keep track of your screws since they are tiny and easy to lose.

  1. 2KvRBgmpdrXnBPTq

    • Power off the device before starting battery replacement.

    • Remove SD card and SIM Card.

    • With the opening tool, gently pry the back plate away from the main board. The corners are the easiest spots to start at.

  2. RLQZ2PdbkcroKSJV
    RLQZ2PdbkcroKSJV
    e6cGLaxZUZJrTiKu

    • Gently pull the back cover away from the adhesive on the battery.

    • It may be possible to use a blow dryer on low heat but I'd advise against it unless absolutely necessary.

  3. Yax6RVDDUQL6Paca
    Yax6RVDDUQL6Paca
    2b3KFROPFb2HMRDF
    BoQRlLuytRGMMfmI

    • Slowly and gently lift the power cable upwards.

    • Unscrew the 4 screws keeping the battery in place, set aside.

  4. Q2gLrZjGXVVNVheD

    • Remove the battery by pulling up gently.

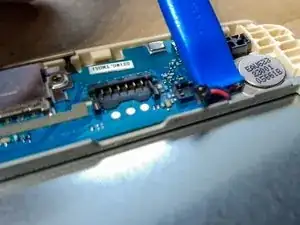

  5. 4aUdI5Me4lK6pXrI
    4aUdI5Me4lK6pXrI
    hLk3aWOLYRPqNL4C
    rEPgFLfENMwIerIE

    • Pry the connector for the camera up.

    • Pry the connector for the USB module up.

    • Pry the cable connecting the metal circle.

    What is the metal circle??? Ive looked high and low AMD cannot find the answer! Email me at haileyalberger@gmail.com I would be so grateful :)

    Hailey Alberger -

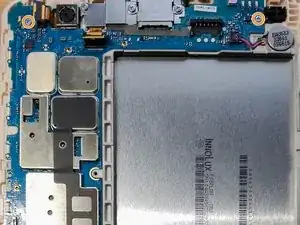

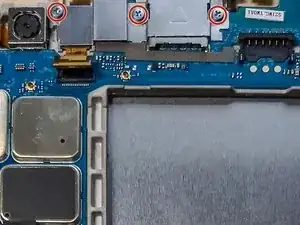

  6. iBZnRJXInUUoKstM
    iBZnRJXInUUoKstM
    wMEyBFywPjrO5PlY
    s6JmGEoI4pGJxJHE

    • Unscrew the 3 screws holding the USB module down.

    • Unscrew the 2 screws keeping the motherboard in place.

    • Finally, the two screws for the micro USB port.

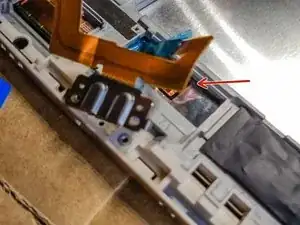

  7. hOMe42SDnWVjRXWs

    • Gently lift up the display connector.

    • Be careful, too much pressure can cause the digitizer/screen to crack as it is right below the metal.

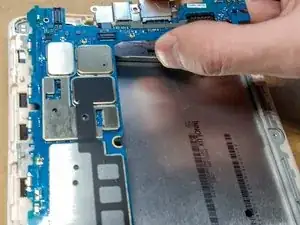

  8. mJGGsMtFiAUZTdEh

    • Remove the motherboard by pulling it straight up and away from the tablet body.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

[deleted]

Member since: 18/05/17

1176 Reputation

2 comments

Would my motherboard to my pad be no good due to water damage it’s been 3 months still won’t turn on. The little sticker is pink still but my battery smells burnt. Could I take out the mother and use some air dust ?

Joe -

You may need to replace the battery as it sounds like it shorted out. A burnt smell more than likely means the battery is damaged.

Have you tried replacing the battery yet?

[deleted] -
