Introduction
If the phone has trouble reading your touch input to its touch screen, the digitizer may be damaged or broken. If that is the case, a replacement is in order. This guide will instruct you on how to safely take apart the device to change out the digitizer.
-
-

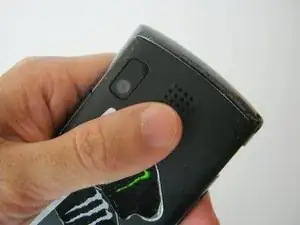

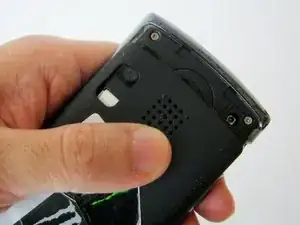

Press down on the back of the phone, applying moderate pressure.
-
Slide the back casing down to separate it.
-
-
-
Remove the back casing to expose the battery.
-

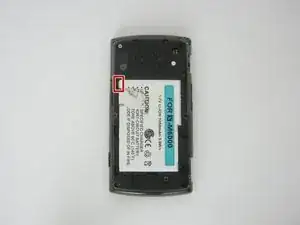

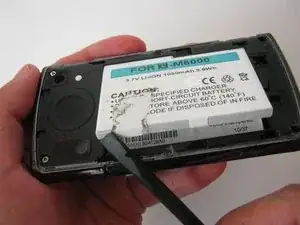

Use a plastic spudger to lift the battery out using the battery's groove on its top left corner.
-
-
-

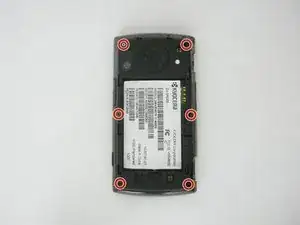

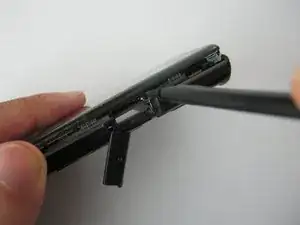

Insert the flat end of the spudger between the front and back panels, and pry it apart by running the spudger along the side to further separate them.
-
Go all the way around, prying as you go, until the back casing completely separates from the rest of the phone.
-
-
-

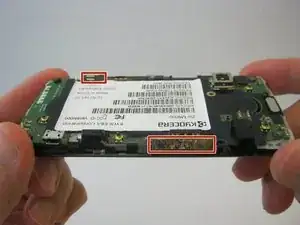

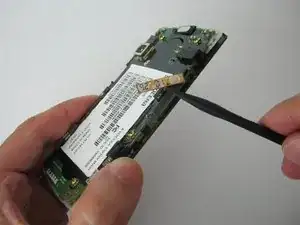

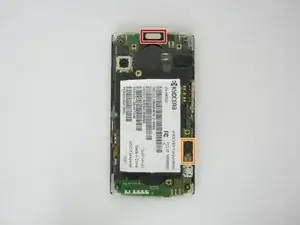

Unclip the two flex cables -- a small one located on the left side on the lower half of the motherboard, and a longer one on the right side, higher up.
-
-
-

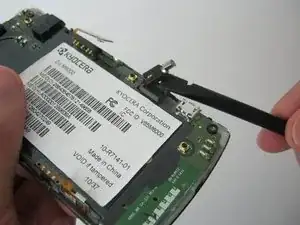

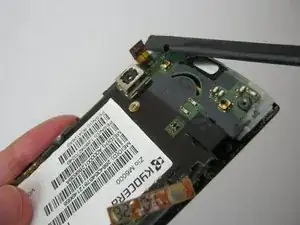

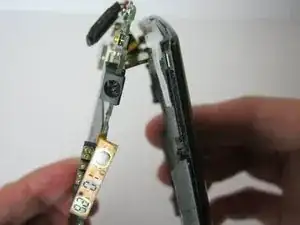

Pry out the earpiece speaker using the spudger.
-

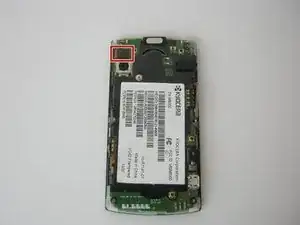

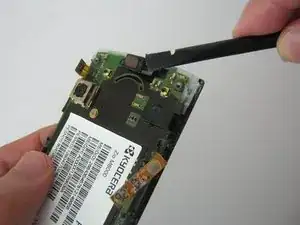

Pry out the vibration motor using the spudger.
-
-
-
Place the flat end of the spudger underneath the digitizer connector and pry it up to disconnect it.
-
-
-

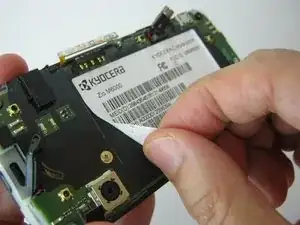

Remove the sticker to uncover the screws underneath.
-

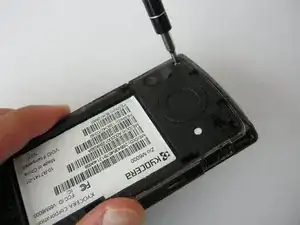

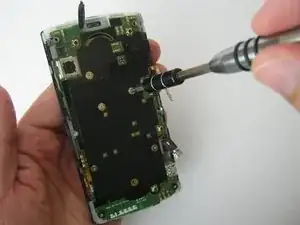

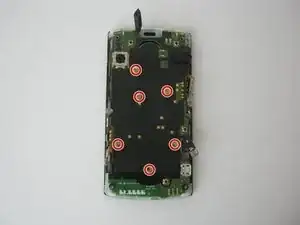

Remove the six 1.59 mm screws using a Phillips 00 screwdriver.
-
-
-

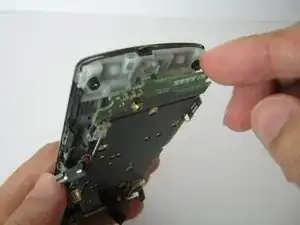

Lift the bottom portion of the motherboard away from the front panel.
-

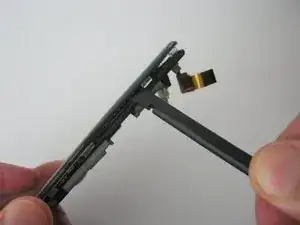

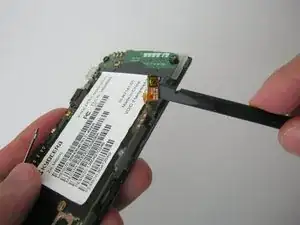

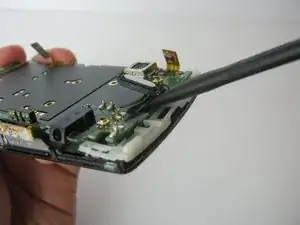

Insert the flat end of the spudger in between the panel and motherboard to unfasten the connector.
-
-
-

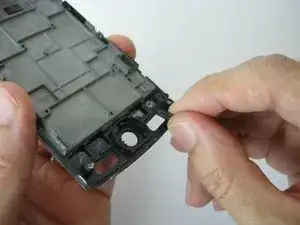

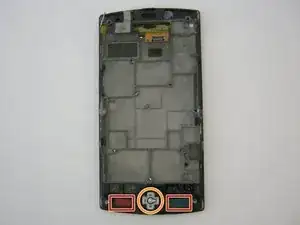

Remove the red Power button and green Talk button from the bottom of the casing.
-

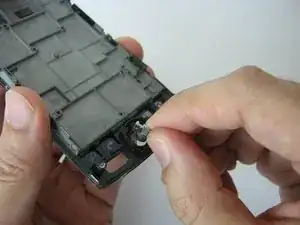

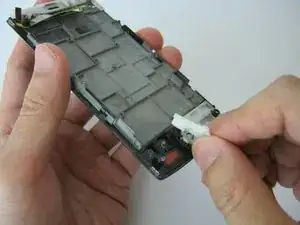

Remove the trackball, also at the bottom of the casing.
-
-
-

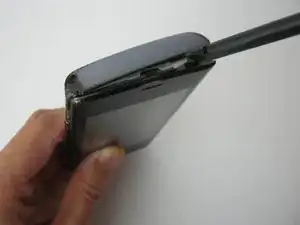

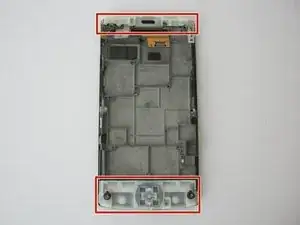

Pry the bottom edge of the bezel with the flat end of the spudger.
-

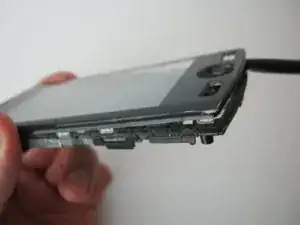

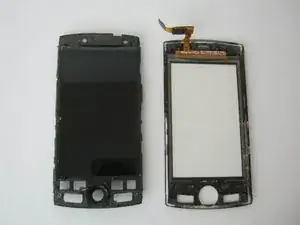

Carefully run the spudger up the sides until the digitizer is free.
-
To reassemble your device, follow these instructions in reverse order.
