Keurig B70 Platinum Base Replacement

Written By: Steven Tran
  • Comments: 0
Keurig B70 Platinum Base Replacement

Difficulty

Difficult

Steps

8

Time Required

15 - 20 minutes

Introduction

Cracked base? Or maybe you feel like taking it out for a thorough wash?

This guide will show you how to remove the plastic base surrounding the Keurig B70 Platinum device.

You will need a Phillips #2 screwdriver to complete this guide.

  1. Jnggbu5nqlWsYXVC
    Jnggbu5nqlWsYXVC
    AAuPUqhVRhIxYiWq

    • Turn off and unplug the Keurig before starting.

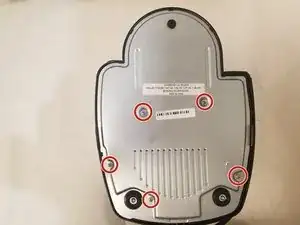

    • Turn the Keurig upside down so the metal base is exposed.

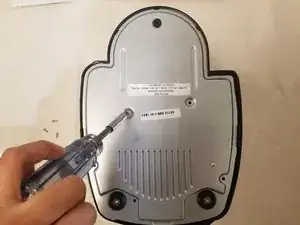

    • Remove the five 12.0 mm screws.

  2. Ak6LNbIrXBJLwwn3
    Ak6LNbIrXBJLwwn3
    WNFI4qbkALrcTILR

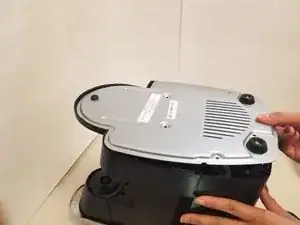

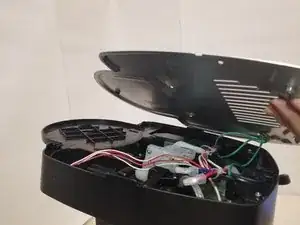

    • Lift the metal plate off the Keurig and hang it over the side of the device.

    • Be careful! The metal plate is sharp!

    • There are wires connected to the metal plate. Make sure the wires are not in the way of the internal components.

  3. 4URDOGmRCrZcT4Jq
    4URDOGmRCrZcT4Jq
    UucRbFCjO44e1Sba
    o2YrUUZonsqNCL31

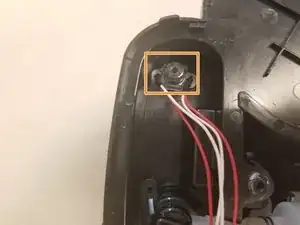

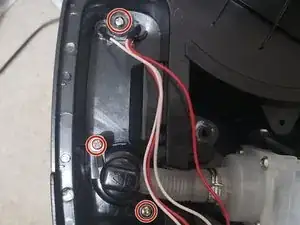

    • Remove the three 11.0 mm screws located on the upper left side of the base from within the tub-looking area.

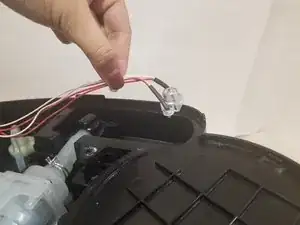

    • Pull out the red and white wires and put it off to the side of the Keurig.

  4. 1TtsWbxGTiIxIhxm
    1TtsWbxGTiIxIhxm
    rHYjcAmUaxVpAQk4
    ZITPkJAgKb6EgIVV

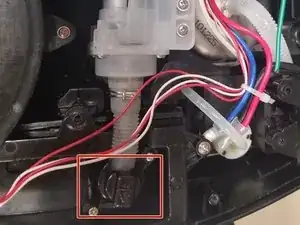

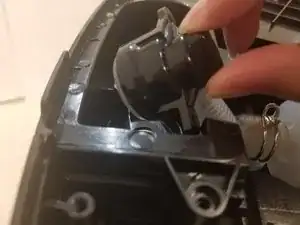

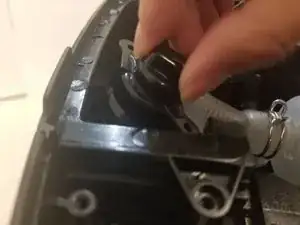

    • Pull out the water collector by gripping it tightly and lifting upwards.

  5. HtYZ2kjFnNYmEejm
    HtYZ2kjFnNYmEejm
    5UsTdKwA4wppZTqy
    jvW6rYB4bBhrEYsP

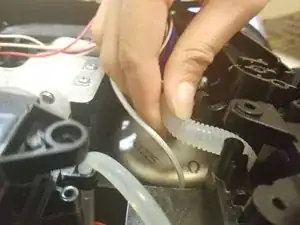

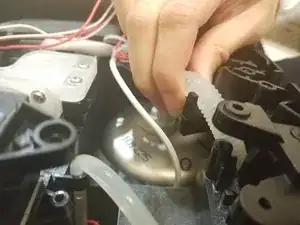

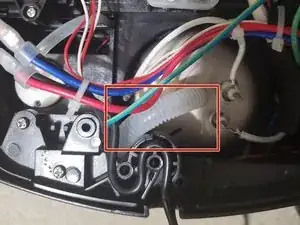

    • Lift the tube, connected to the tank, off the black plastic hook and leave it off to the side of the hook.

  6. eTTUpQLMWjgJgVFD
    eTTUpQLMWjgJgVFD
    qLNXk6uADW6ltnGJ
    BAmgYK4QTHADCCgn

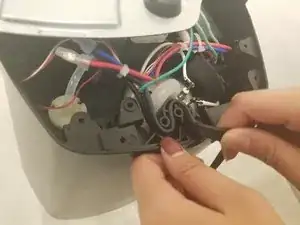

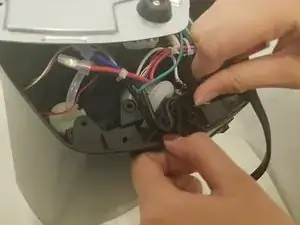

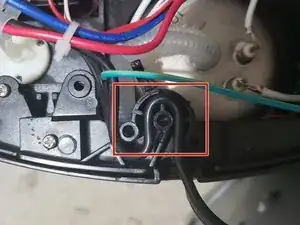

    • Pull the power cord out from the plastic holder located near the water tank.

    • This step requires a bit of force so don't be afraid to pull harder!

  7. E1J4XTaMiiogZxrv
    E1J4XTaMiiogZxrv
    BpXZEyvfTJAKY1FN

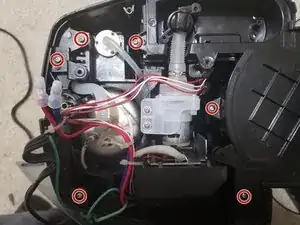

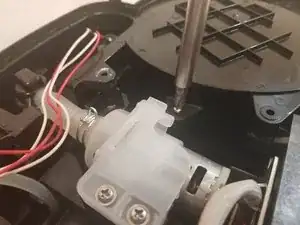

    • Remove the six 13.0 mm screws.

  8. p3gDXBGQAAV3HSNh
    p3gDXBGQAAV3HSNh
    xDujdNNRkQqp6roV
    tOoLkZfU3MTgWSsZ

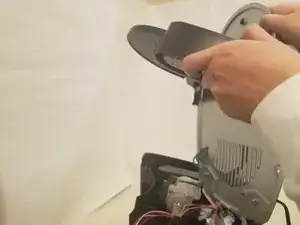

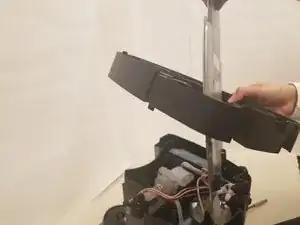

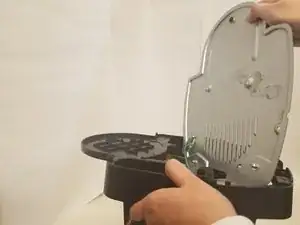

    • Lift the metal base and hover it over the opening of the black plastic base.

    • Carefully raise the plastic base over the metal base until it is removed.

    • Make sure to pull the power cord through the base as well!

Conclusion

To reassemble your device, follow these instructions in reverse order.
