JBL Pulse 4 Drivers Replacement

Difficulty

Difficult

Steps

25

Time Required

30 - 45 minutes

Introduction

If your JBL Pulse 4 Bluetooth speaker has distorted sound, low volume, or no sound at all, this guide will show you how to replace the internal speaker drivers.

The speaker drivers are the parts that create sound. If they stop working, you might hear buzzing, crackling, or nothing at all. To reach them, you’ll need to take apart the speaker by removing the outer casing, LED display, battery, and motherboard.

Before starting, make sure the problem isn’t due to a Bluetooth connection or software issue. Try restarting the speaker and connecting it to different devices.

Be sure the speaker is powered off and unplugged before starting. If the battery looks swollen or damaged, don’t continue the repair. It’s also a good idea to work in a clean, static-safe area to avoid damaging any parts.

  1. xX2YDUHXhMDyxRWk

    • Power off the device before doing any repairs.

    • Hold the power button for 3+ seconds to power down the device.

  2. gGaUdnNkgqVQ5HjM
    gGaUdnNkgqVQ5HjM
    lsCMryIqHebSE1wi
    yVULMU4OatTjrH3P

    • Remove each rubber end cap using a plastic pry tool.

    • Go around each end of the speaker slowly popping up a small section of the rubber cap until there is a gap on all sides.

    • Remove the top by hand.

  3. uboGrABfuNKPgRoM
    uboGrABfuNKPgRoM
    stTxAIaIiZ6E1ZiJ
    THVXNnRUqpoA2dCx

    • Remove the charging port cover using a plastic pry tool.

    • Remove the two 12.7 mm Phillips #1 screws.

    • Remove the charging port housing from the casing.

  4. 6XMByfymt2cIqpTo
    6XMByfymt2cIqpTo
    fqOfua1A4eOd3xou
    uOC2SrZ61V2YSe2R

    • Disconnect the charging port connector by pulling the connector away from the port.

    • Disconnect the battery level indicator light by pulling the wire away from the lights.

  5. bYRHHZYOhFFbV4Gi
    bYRHHZYOhFFbV4Gi
    lkMUuXTF1KwOLqEb

    • Remove the six 8 mm Phillips #1 screws from the end of the speaker with the grill that says "JBL."

    • Remove the plastic piece where the 6 screws came out of.

  6. m4E3MAgLjAjvIlUd

    • Remove the six 9.5 mm screws using a Phillips #1 screwdriver.

  7. SEciKSBwrvyyMgtP
    SEciKSBwrvyyMgtP
    Ml1aopuJx25RVDvu
    R1vYatjOuecuRQER

    • Flip the speaker to the other end.

    • Use a pry tool to pry between the casing of the speaker and the internals.

    • Go around the entirety of this end of the speaker slowly prying apart the two pieces.

  8. NSiGUWDJZNuNkgWA

    • The casing is now fully detached from the internal components.

    • You can now replace the outer casing of the speaker.

  9. 3115iUbRtQUS1NvG
    3115iUbRtQUS1NvG
    VNNwUDw3qRUOJkn4

    • Place the speaker on the table with the button board side down.

    • Remove the three black 5 mm screws using a Phillips #1 screwdriver.

    • Remove the white casing by pulling it away from the button board.

  10. NRajDvHwkauEe21O

    • Clip off the two zip-ties using the zip tie cutter.

  11. RgMwlNJLcqU6AgRP

    • Peel each LED strip off of the speaker using an iFixit opening pick.

  12. pdaui3H15TJsULGv
    pdaui3H15TJsULGv
    Mx3IKwxqJlghsBlc

    • Remove the four black 5 mm screws using a Phillips #1 screwdriver.

    • Remove the white plastic piece that is held in place by the screws.

  13. C3XWRwo1OGkHYBun

    • Remove the red/white cable from the white connection.

  14. QfXXBVsx2AMxcEdA

    • Remove the LED light display from the speaker.

  15. 3PHOcdY51YPUNI1H
    3PHOcdY51YPUNI1H
    5erGIcHlPmdFhQsY
    hVwjGdwSSebNXkKc

    • Remove the three black 5 mm screws using a Phillips #1 screwdriver.

  16. Q5bgV2NWqyoGfsWy
    Q5bgV2NWqyoGfsWy
    oPiQfGdn2bMXMQcq

    • Unplug the cable connecting the battery to the motherboard.

  17. G16GDQjiKYbRXkDD
    G16GDQjiKYbRXkDD
    3vWrCOaHArV6oNZ4

    • Feed the wire out of the central housing unit.

    • Pull the battery out of the central housing unit.

  18. KsAiumBfbS6uFBya

    • Cut the black cable off the motherboard using cutters to remove the button board.

  19. OqHUQSMDWYGXLHQW
    OqHUQSMDWYGXLHQW
    3TAyRXRjUAFmHSjj

    • Using the tweezers, gently unplug the three connections attached to the motherboard.

  20. jVmxlYYJiDMYadnb
    jVmxlYYJiDMYadnb
    XmLPxlINReiSwRVF
    U3siXJUpjvR4NlSq

    • Pull the motherboard out of the frame.

    • The only connection the motherboard has to the frame now should be the soldered-on black wire.

  21. mjBJ1QpfeniPrfjZ
    mjBJ1QpfeniPrfjZ
    CoIgLKocSQfW3Ygo
    gXNOwO3EBAPxtjrK

    • Desolder the wire from the motherboard.

    • Remove the motherboard from the speaker.

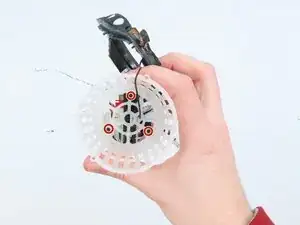

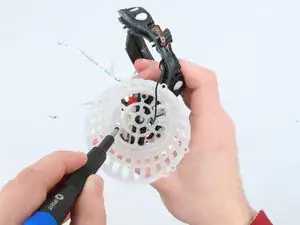

  22. kMYESiFxqiixhDVa
    kMYESiFxqiixhDVa
    DsuyJOwq5PoPZayk

    • Use a Phillips #00 screwdriver to remove the three 5 mm screws securing the plastic housing.

    • Remove the bumper assembly.

  23. ntrio3adwYSllTZq

    • Pull the bumper assembly away from the rest of the speaker.

    • Caution: Be gentle with the attached wires to avoid damaging them. Do not disconnect the wires while separating the parts.

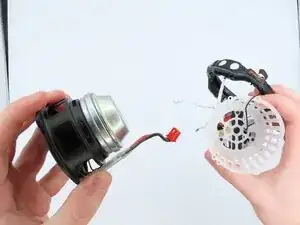

  24. qrUnTZlAilCxv4oG

    • Disconnect the connector attached to the driver by gently pulling it apart.

    • Caution: Avoid pulling on the wires directly to prevent damage to the connector or internal wiring.

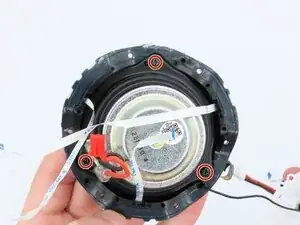

  25. GQFYF5aJGCyTUASS
    GQFYF5aJGCyTUASS
    DgBRPFHEGbMsGBxF

    • Remove the driver from the plastic housing by gently pulling them apart.

    • Hold both the driver and housing firmly during this process.

    • Use a Phillips #00 screwdriver to remove any screws securing the driver, if necessary.

    • Caution: Avoid putting pressure on the driver or its connections to prevent damage.

Conclusion

To reassemble your device, follow these instructions in reverse order.
