How to replace the extension handle on my trolley?

Written By: VAUDE Reparaturteam
  • Comments: 1
How to replace the extension handle on my trolley?

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

You can use these instructions for almost all VAUDE trolleys and replace the handle yourself. For our models Futuna, Rotuma, Turin and Tuvana, however, we recommend you ask a repair specialists at VAUDE to do the replacement.

  1. bBTLYeSZWyjfQVZP

    • Open the zip inside the trolley to expose the handle.

  2. NTMJknfObJZEMcKc
    NTMJknfObJZEMcKc

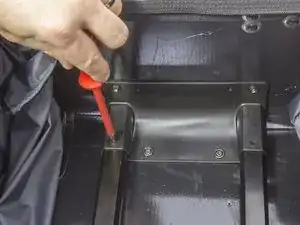

    21yu6GJHSaMGYQSp

    • Unscrew the two screws in the lower section on the handle assembly using a Phillips screwdriver.

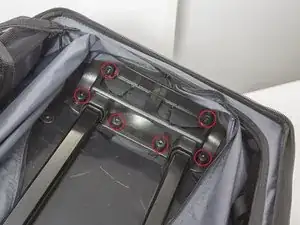

  3. kWD5gXykSYqOZblA
    kWD5gXykSYqOZblA

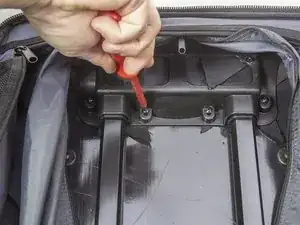

    TUDYVwOEsfCZPKUL
    aDvMtO1Eeed1jdJA

    • Using a Phillips screwdriver, unscrew the 6 marked screws attaching the handle to the upper section.

  4. wGQLSIAVSwaQv2KI
    wGQLSIAVSwaQv2KI

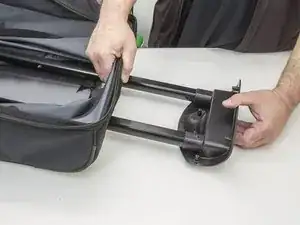

    CcVFFKStByHHsgKV

    • After unscrewing all screws, it is easy to remove the entire handle assembly.

Conclusion

Follow the instructions in reverse order, to complete the repair/replacement.
