How to diagnose Samsung Galaxy A40 Charging Problems

Written By: ZFix
  • Comments: 2
How to diagnose Samsung Galaxy A40 Charging Problems

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

This guide will help you diagnose the Samsung Galaxy A70, Samsung Galaxy A50, and the Samsung Galaxy A20. This guide might also work for other Samsung models.

  1. Nc1C1jIcXh2C2Afi
    Nc1C1jIcXh2C2Afi
    mWqKQO1hwA2MHIRw
    QESdxt6bPX2bpN1H

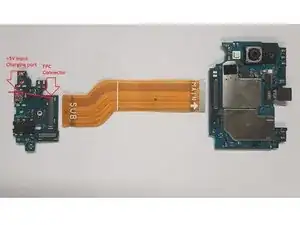

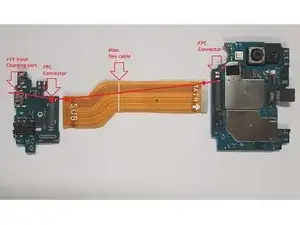

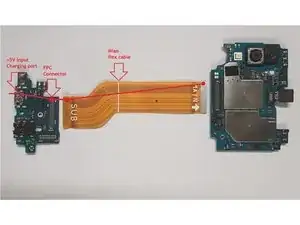

    • This is the +5V line from the Charging port to the Motherboard.

  2. w3peaAuhRJCOY5ie
    w3peaAuhRJCOY5ie
    56X1JPL6tnL6Aute
    PSZ4aMveIRQUGbhY

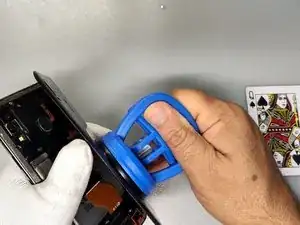

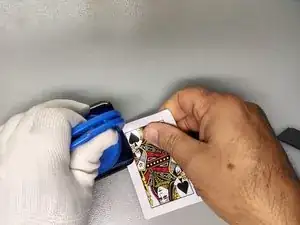

    • Warm the device to soften the adhesive.

    • Use Sanction cup, Plastic tools and isopropyl alcohol.

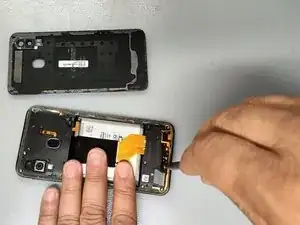

    • Remove the silver Phillips screws from the device's frame.

  3. fKZLMT2MJboodTGQ
    fKZLMT2MJboodTGQ
    V2Eb1YUZLrafvUSU
    gHeRrkRyvoMUBX2s

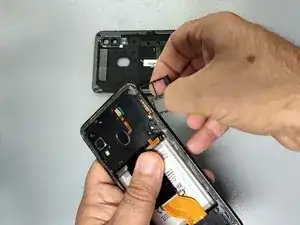

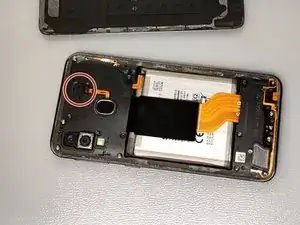

    • Remove the plastic cap from the Fingerprint flex cable connector and disconnect the cable.

    • Remove the SIM Tray.

  4. xSJuKCGaZKU1eOIK
    xSJuKCGaZKU1eOIK
    DXgdFEDPJDPpxUT6
    ZW2OZsPQZRPrtdW2

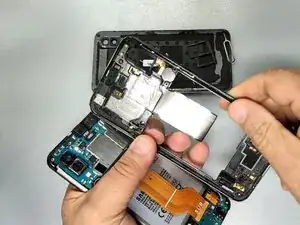

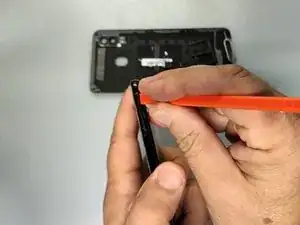

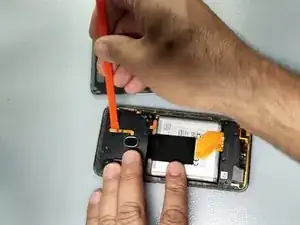

    • Use a plastic tool to separate the back cover from the frame. Start from the SIM tray hole.

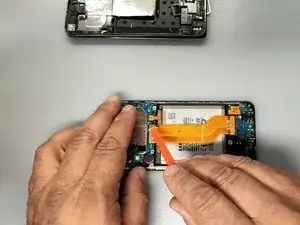

    • Disconnect the battery.

  5. HeENCSgrFLebvOOf
    HeENCSgrFLebvOOf
    xUPUwWdFAaseRLeN
    qlXRePrbvSbWmGy5

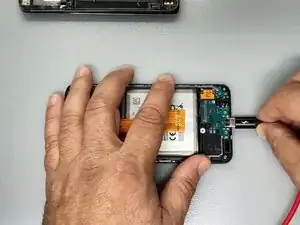

    • Disconnect the main flex cable and connect the charger.

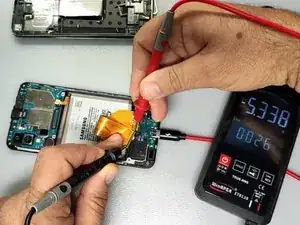

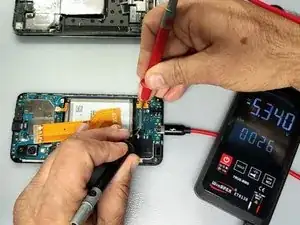

    • Use a multimeter to measure the voltages at the large end pins of the FPC connector of the charging board. (See the second image)

    • If the reading is okay (~5V) continue with the next step, if not - change the Charging board.

    • Attach the main flex cable and measure the large end pins of the Main flex FPC connector - pic.3.

    • If the reading is okay, continue with the next step, if not - change the Main flex cable.

  6. YG1GWNZoSARCsE6a
    YG1GWNZoSARCsE6a
    CLCXx2taF4BODgQ4
    r3YmokoYYZdlSRNR

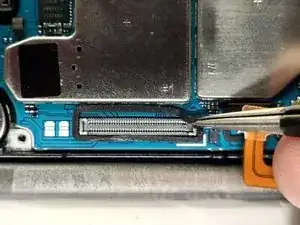

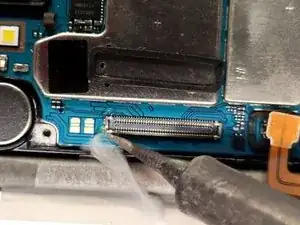

    • Remove the adhesive rubber around the main flex connector on the logic board.

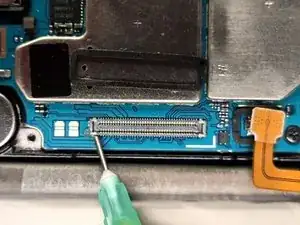

    • Use some flux and a soldering iron to re-solder the first pin of the motherboard FPC.

    i thought this was just diagnostic why are we soldering

    darth mango -

Conclusion

To reassemble your device, follow these instructions in reverse order.
