How to Replace the Thermal Paste Inside Your Framework Laptop 12

Written By: Arthur Shi
  • Comments: 0
How to Replace the Thermal Paste Inside Your Framework Laptop 12

Difficulty

Moderate

Steps

23

Time Required

15 - 45 minutes

Introduction

Follow this guide to replace the thermal paste (aka thermal compound, thermal grease, or TIM—Thermal Interface Material) in your Framework Laptop 12.

If your laptop is a few years old and is running uncharacteristically hot, the thermal compound may no longer be transferring heat effectively. Replacing it may resolve the problem.

The Framework Laptop 12 comes with Honeywell PTM7958 installed from the factory. You can, however, replace it with most commercial thermal pastes or PTM pads.

If you're using the Framework Heatsink and Fan Kit, follow this guide instead.

You'll encounter some component terms in this guide:

  • The Input Cover is the part that contains the keyboard and trackpad.

  1. ENj2nRYJffBN2QaN
    ENj2nRYJffBN2QaN
    YjlDgdAsDVIlgqUJ
    GRNSY6XxqDVbUVQJ

    • Before you begin repairs, unplug your laptop and shut it down from the operating system. This ensures that the laptop isn't in standby/suspend mode.

    • The indicator LEDs along the edges should be unlit. The laptop should be silent.

    • If you accidentally turn on the laptop during repair, hold the power button down for 10 seconds to shut it down.

    • Make sure your Framework Screwdriver has the T5 Torx bit (labeled as T-5) facing outwards. If it's not, pull the bit out and flip it.

  2. ubIRwnfForMuSctD

    • Set your Framework Laptop face-down on a clean work surface.

  3. uSiaYQJxHWQEtBTp
    uSiaYQJxHWQEtBTp
    4PYD5BWmLBijnqFr

    • Use your Framework Screwdriver to fully loosen the eight captive T5 Torx screws on the bottom of your laptop.

    • Most screws in your Framework Laptop (including these) are captive—they're designed to stay in place after you loosen them.

    • Your laptop comes with a spare set of screws in the frame above the battery. Be careful—the replacement screws aren't captive.

  4. UomOMxHFjJlXOmVI

    • Flip your laptop over so it's face-up on your work surface.

  5. BAlEsafUboQ4NySF
    BAlEsafUboQ4NySF
    IOc5J3IPRwcuJcrW

    • Open the laptop lid so that both the screen and the base lie flat on your work surface.

  6. 1rUg25vLV4eVwDT1
    1rUg25vLV4eVwDT1
    PI4YlkgvqAGikOsI
    P4UYnHUqKXiVjnPu

    • Use your fingers to grip the Input Cover in the hinge cutouts.

    • Lift upwards to swing the Input Cover up from the base of the laptop.

    • There are magnets holding the Input Cover down, so you'll feel some resistance. If it feels like a lot of force is required, check that you've fully loosened all the screws on the bottom of your laptop.

    • Remove the Input Cover.

  7. b5AQM3feYGn4ttQZ

    • Use your Framework Screwdriver to loosen the six captive T5 Torx screws securing the battery.

  8. QMPLTpItI3EVDGEI
    QMPLTpItI3EVDGEI
    qXL3hfIHcHhpCpPg

    • Grab the orange battery tab with your fingers and lift straight up to disconnect the battery.

    • The battery connector can be tight, requiring some force. If it feels like part of the battery won't come up, check that the battery screws are fully loosened.

  9. vBhTTUMPMdexvY2I
    vBhTTUMPMdexvY2I
    BpR3xLIgaPNfTJcs

    • Lift and remove the battery from the laptop.

  10. 1bPYQVXFKQWqo6Hy

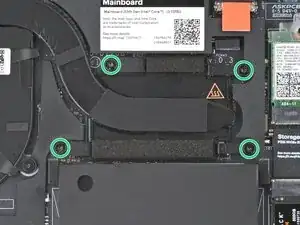

    • Use your Framework Screwdriver to loosen the four captive Torx T5 screws securing the heatsink.

  11. 2HEj5Ue6rCIpB2XQ
    2HEj5Ue6rCIpB2XQ
    prJt2SdQiwKQCLIC
    oFqURCBgAqvaSVyY

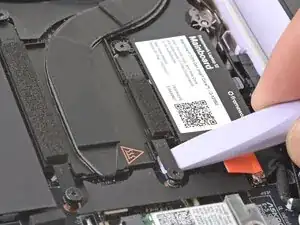

    • Slide the flat end of your Framework Screwdriver under the heatsink arm labeled "2".

    • Twist the Framework Screwdriver to lift the heatsink arm and loosen the heatsink.

    • You'll feel some resistance from the thermal compound holding the heatsink in place.

    • If the heatsink won't budge, make sure you've fully loosened the four screws securing the heatsink.

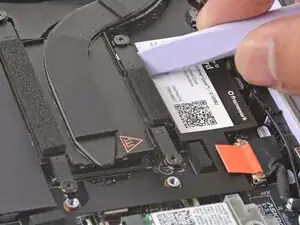

    • Repeat the procedure with the heatsink arm labeled "3".

  12. lbr3ULwjB1WFbT5J
    lbr3ULwjB1WFbT5J
    EXXi2HGGrnrolIUN

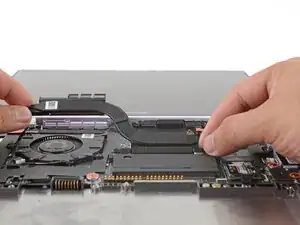

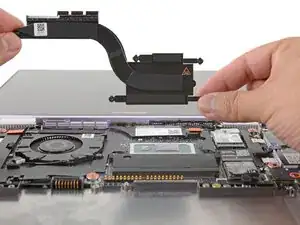

    • Lift and remove the heatsink.

  13. GFISPDuIsRdKxMhT

    • Congratulations on completing disassembly! The remaining steps will show how to reassemble your Framework Laptop.

  14. kWXgdcHNiYLOOHsO
    kWXgdcHNiYLOOHsO
    oeKAwGODEskWBRUh

    • Use the flat end of your Framework Screwdriver to scrape off and remove the thermal compound residue from the processor.

    • Use a few drops of high concentration (>90%) isopropyl alcohol and a lint-free cloth to wipe away the remaining residue.

  15. nshXpApcjTx1F6qV
    nshXpApcjTx1F6qV
    rGneo3eKECpYlXpF

    • If you're reusing the heatsink:

    • Use the flat end of your Framework Screwdriver to scrape and remove the thermal compound residue from the heatsink.

    • Use a few drops of high concentration (>90%) isopropyl alcohol and a lint-free cloth to wipe away the remaining residue.

  16. 25SIONCSisN4UNLB

    • Apply a small bead of thermal paste to the small rectangle on the processor.

    • Apply a small line of thermal paste to the larger rectangle on the processor.

    • Thermal paste is non-conductive, so don't worry if it spills over the rectangles.

  17. XJdhyOqqhVmmcK3H
    XJdhyOqqhVmmcK3H
    tADDAB5oBMqbuYv1

    • Carefully align and lay the heatsink over the processor.

    • Use your Framework Screwdriver to gradually tighten the heatsink screws in the marked order until they're snug:

    • First screw

    • Second screw

    • Third screw

    • Fourth screw, then back to the first

    • This helps compress the thermal compound evenly under the heatsink and apply even pressure over the processor.

  18. vBhTTUMPMdexvY2I

    • Lay the battery in its recess in the laptop.

  19. imAYGO4LaFApYYha
    imAYGO4LaFApYYha
    1vygrQS4WHMONa6d

    • Use your finger to push the battery down near its connector to reconnect it.

  20. geOhoFNlOEfYyTpp

    • Use your Framework Screwdriver to tighten the six captive T5 Torx screws to secure the battery.

    • Tighten the screws until they're snug. Don't over-tighten them, or you may strip the screws.

  21. HlXOsUPuPR5UTUnF
    HlXOsUPuPR5UTUnF
    euBDDIJMdxks34JT
    DPSECZI1O3LHVTTb

    • Angle the bottom edge of the Input Cover towards the base of the laptop.

    • Align and insert the bottom edge of the Input Cover into the base of the laptop.

    • Make sure the slots along the bottom edge of the Input Cover slide into the tabs in the base.

    • Lower the Input Cover's top edge onto the laptop until the magnets snap it in place.

    • Make sure the Input Cover sits neatly within the laptop frame and no corners are popping up.

  22. rk4BwMiYBUtyOqmu
    rk4BwMiYBUtyOqmu
    OKkxrqofAHaEk2Ul

    • Close the laptop lid.

    • Flip your laptop face-down on a clean work surface.

  23. uSiaYQJxHWQEtBTp
    uSiaYQJxHWQEtBTp
    4PYD5BWmLBijnqFr

    • Use your Framework Screwdriver to tighten the eight captive T5 Torx screws on the bottom of your laptop.

    • Tighten the screws until they're snug. Don't over-tighten them, or you may strip the screws.

Conclusion

You finished fixing your Framework Laptop!

Take your e-waste to an R2 or e-Stewards certified recycler.

If you need help, contact Framework support.
