How to Replace a Logitech M325c Scroll Wheel

Written By: nicolec9
  • Comments: 0
How to Replace a Logitech M325c Scroll Wheel

Difficulty

Easy

Steps

6

Time Required

2 - 5 minutes

Introduction

Mouse scroll wheels often stop working. They can get stuck inputting one direction, or just stop working all together. If this happens to your Logitech M325c mouse scroll wheel, then you're in the right place! Here is a guide to replacing this scroll wheel.

  1. NAYOH3HLbLlOPdYh

    • Slide the mouse’s case open to reveal the battery compartment.

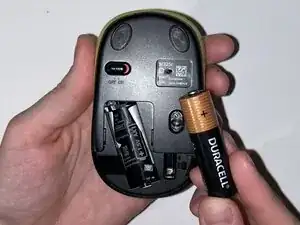

  2. tkfWmKERJhg1NeyE
    tkfWmKERJhg1NeyE
    K5taxFyItIcmbo1s
    F5jmK2E4HsToyM1k

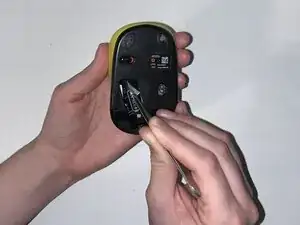

    • Remove the AA battery.

    • Peel off the sticker at the bottom of the compartment.

    • Remove the single Phillips screw.

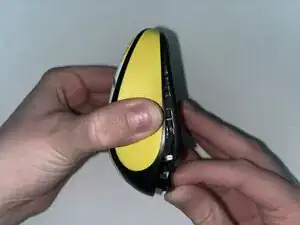

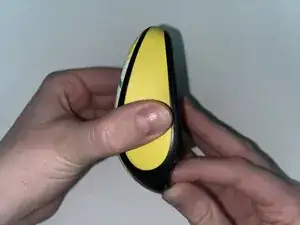

  3. KjWlNIBTMrak2scJ
    KjWlNIBTMrak2scJ
    CBnSlJxRICPpCJsh
    4ehUZaineBQEU2gM

    • Pinch the lower case and carefully pull it to reveal the internal parts and scroll wheel.

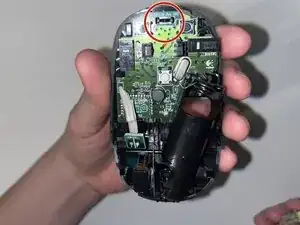

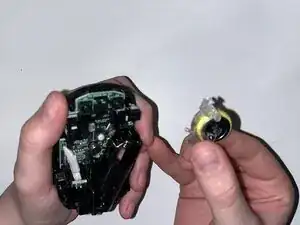

  4. 3eDLRIxVuF4kOW3g
    3eDLRIxVuF4kOW3g
    fWPG2gQujeDyOtrB
    blpLyrMAGEW2BDRu

    • Carefully pop the scroll wheel out and replace it with the new wheel.

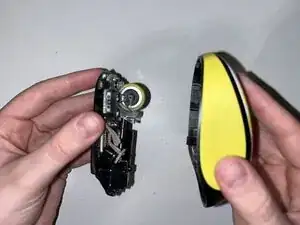

  5. QYfhuc1cS1cdHIC2
    QYfhuc1cS1cdHIC2
    l1NRPXETRIP2Ydwe

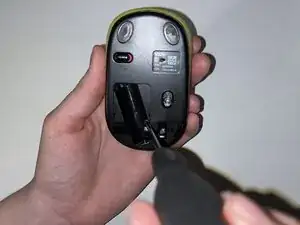

    • Reattach the bottom of the mouse and fasten the single Phillips screw in the battery compartment.

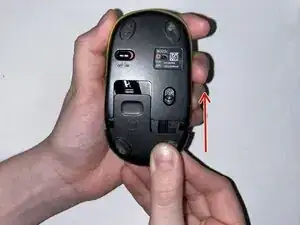

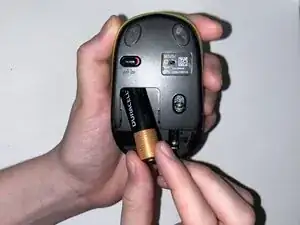

  6. kj2jbtXo3bTdXGIY
    kj2jbtXo3bTdXGIY
    5JBnXGT1WBrp1CmH
    KJtiRcSpW32Rb4Vs

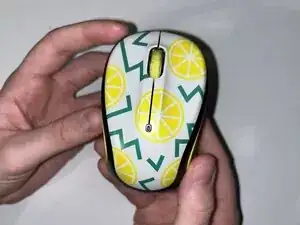

    • Replace the AA battery and reinstall the battery compartment cover.
