How to Repair the Buttons on a Logitech Pebble Mouse

Written By: Emma Whitmer
  • Comments: 4
How to Repair the Buttons on a Logitech Pebble Mouse

Difficulty

Easy

Steps

6

Time Required

6 - 10 minutes

Introduction

If you need to repair the buttons on your Logitech Pebble M350/M355 mouse, follow this guide. This guide will show you how to disassemble the mouse to reach the scroll wheel and buttons and apply a small amount of lubricant to them.

Many users of this mouse have encountered a problem where the buttons eventually stop working. Since this isn't ideal for a device you use every day, the purpose of our guide is to provide a simple solution for this common problem.

  1. PDTxy4dPBRuIZQOw
    PDTxy4dPBRuIZQOw
    MRcFpfZBYJFBmNUH
    YpMiburQTeFXOOh1

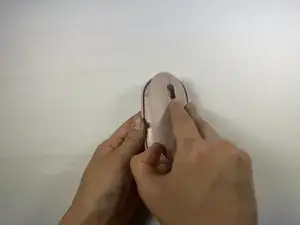

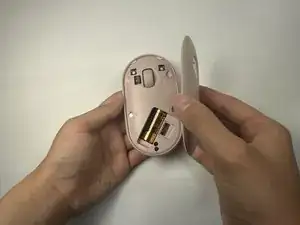

    • Use your hands to remove the magnetic top panel of the mouse.

  2. ruwsxoxUtChuAbPd
    ruwsxoxUtChuAbPd
    Ob2BuBSWmjiARaEh
    LtTNMPqjBVfh5i16

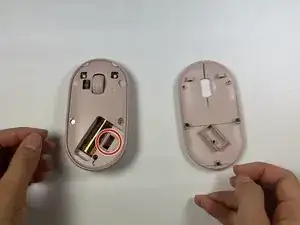

    • Remove the USB adaptor in the small rectangular hole on the lower right corner.

    • Remove the battery.

  3. sI2LZoA6otwNvVNo
    sI2LZoA6otwNvVNo
    xVqfVFMToRHGHGyV

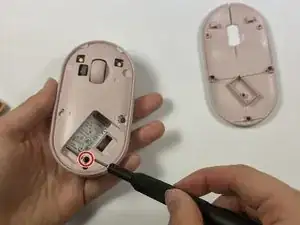

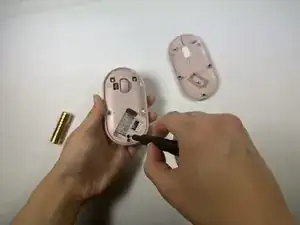

    • Use a Phillips #000 screwdriver to remove one screw holding the inner panel in place.

  4. UDVUkMpLgiyeuW6Q
    UDVUkMpLgiyeuW6Q
    XVY4vxlnjymEY3cT
    X6ULCcUXnX6sZyQX

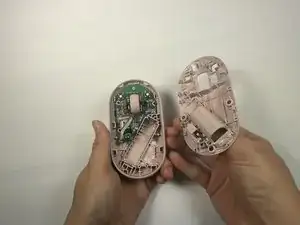

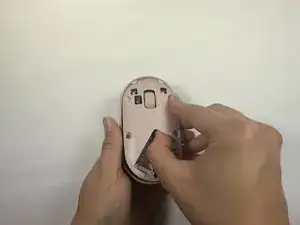

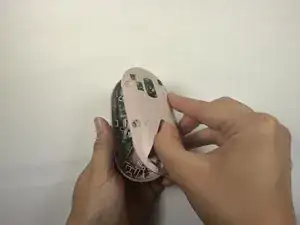

    • Remove the the inner panel.

    • This may take a little bit of effort but it should come off fairly easily.

    • You can use the battery socket as leverage to remove the panel. To avoid breaking the panel, be gentle but firm.

  5. YOPGSJQEvqvLLGPS

    • Use a fine-tipped object or a Q-tip and dip it in a small amount of oil.

  6. baTs6xILoxvQSBeZ
    baTs6xILoxvQSBeZ
    ZBWnrqTYY6drZPEB
    LqGwN2r3MTKKSiSf

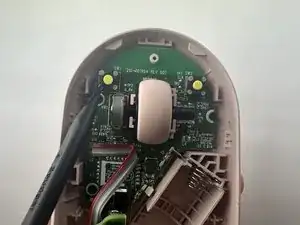

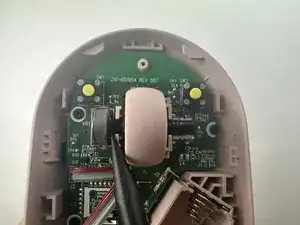

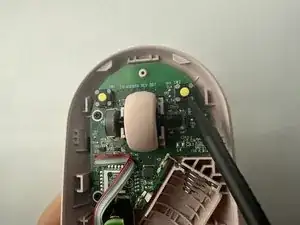

    • Gently wipe the metal axle where the scroll wheel is mounted with a small amount of 3-in-1 oil.

    • Repeat for the left and right click buttons.

Conclusion

To reassemble your device, follow these instructions in reverse order.
