Introduction

Follow this guide to install a new battery in your Samsung Galaxy S22 Ultra.

If you haven't already, follow this guide to remove the battery.

  1. HRhJRRalK12YtoN5
    HRhJRRalK12YtoN5
    phqcZZGejBJRg6QO

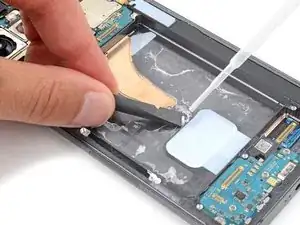

    • Use your fingers or tweezers to peel up and remove any large pieces of adhesive from the frame.

    • Apply a few drops of highly-concentrated isopropyl alcohol (greater than 90%) to the remaining adhesive.

    • Use the flat end of a spudger to scrape off all remaining adhesive.

  2. FfblyWbmTpOyiV4t

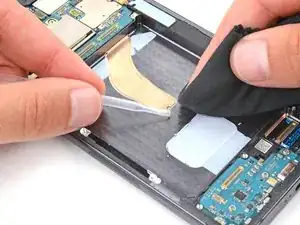

    • Apply a few more drops of highly-concentrated isopropyl alcohol (greater than 90%) to any adhesive residue on the frame and wipe it away with a microfiber or lint-free cloth.

  3. hDMCNUDWWspLL6l4
    hDMCNUDWWspLL6l4
    uvffgnvvbogeCCPw
    XY3ZwkQmUSoXGmh2

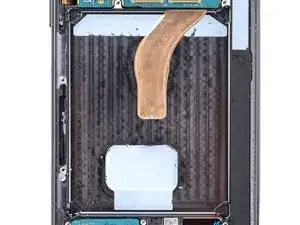

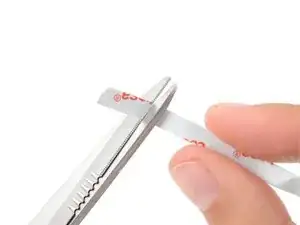

    The kit now comes with pre-cut adhesive.

    Takes a bit to line up, but the hold is much better.

    Anthony S -

  4. BMpRSmEAGWaniaxt
    BMpRSmEAGWaniaxt
    I2KULyNPPD2BqlBD
    2yJnC4MfjqaXSADW

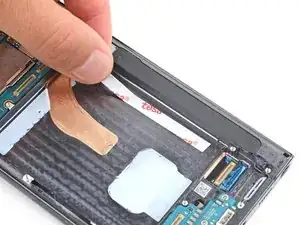

    • Lay a strip of tape onto the frame.

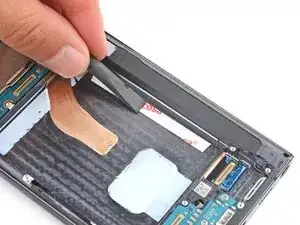

    • Use the flat end of your spudger to press down firmly along the whole strip to secure it.

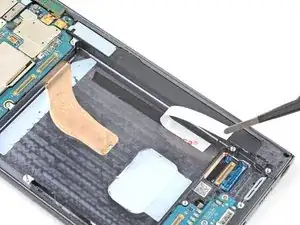

    • Use tweezers to remove the liner from the strip of tape.

  5. WTdKwi5ktB4dqhtZ
    WTdKwi5ktB4dqhtZ
    iOmB5NC4MjEoiDhZ
    QTmbN6wbZAq6fJLP

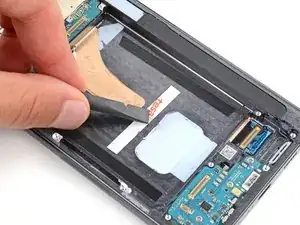

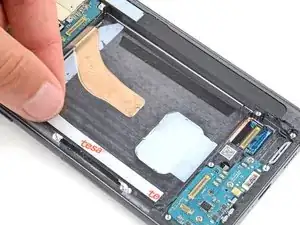

    • Repeat the previous step to apply the remaining strips of tape.

  6. AvmSU1rROHYvHg1A
    AvmSU1rROHYvHg1A
    2wvSfSPqTMlfcKRI
    mx2BYs5oggl3iJWa

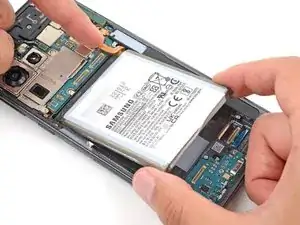

    • While holding the battery above its recess, reconnect the battery cable.

    • This ensures the battery is properly aligned.

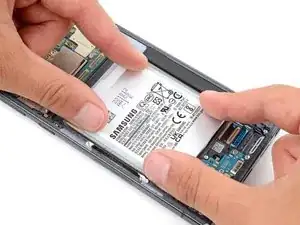

    • Lay the battery into its recess in the frame.

    • Press down firmly on the entire surface of the battery to secure it with the tape.

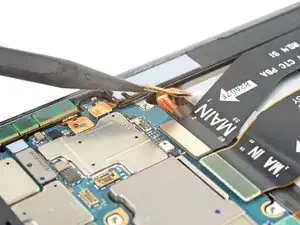

    • Disconnect the battery.

    • Return to your repair guide and continue reassembly.

    The battery cable is very stiff, but will hold the shape you mold it to. The bend is at about the white vertical line on the shielding.

    Anthony S -

Conclusion

For optimal performance, calibrate your newly installed battery after completing your repair.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
