How to Identify Your Apple Watch

Written By: Evan Gattuso
  • Comments: 0
How to Identify Your Apple Watch

Difficulty

Very easy

Steps

15

Time Required

1 - 5 minutes

Introduction

Are you unsure of which Apple Watch you own? If you are looking for repair information or replacement parts you need to know the series and model number.

  1. ACCVTsn3S1Ph5mGm

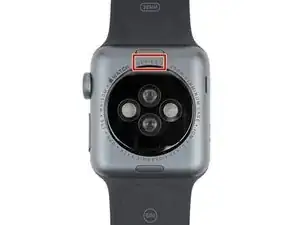

    • To find the series of your Apple Watch...

    • Turn the watch over so that you're looking at its back cover and the screen faces away from you.

    • The series number is engraved on the back cover, in small text.

    • The series is listed with other information such as the watch’s size and materials.

  2. DHsVbcvNi3O4rFIR
    DHsVbcvNi3O4rFIR
    lg3sgZHGlwGTjxBd
    LaPXwPmlYFKRw4rx

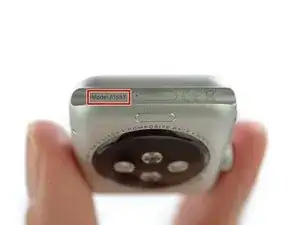

    • To find the model number of your Apple Watch...

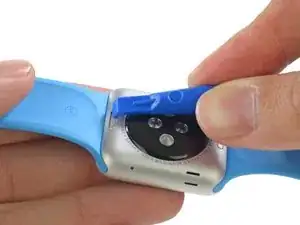

    • Remove the wristband from the watch. Press the button on the back case to slide the band out.

    • The model number is engraved where the band is held.

    • The model number starts with the letter 'A' followed by four digits (e.g. A1757).

  3. D3YGIwXRnwb4OmL6
    D3YGIwXRnwb4OmL6
    KaoDxNvcMXIUdcby
    brRm1WDHK2UCRTRc

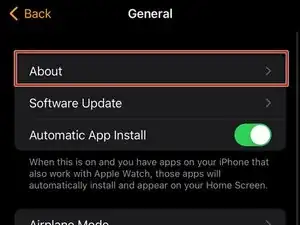

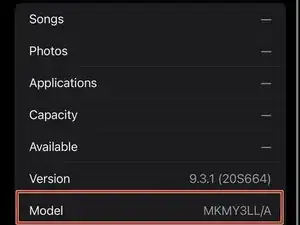

    • If you can't read the engraved text on the watch or don't want to remove the band, the model number can be found in iOS settings.

    • Open the Watch app on your iPhone and select the "My Watch" tab.

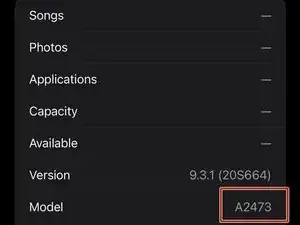

    • Select General > About and then scroll to the "Model" field. A number will be displayed as a combination of letters and numbers starting with “M”.

    • Tap the "Model" field. You should see the model number which starts with “A” (e.g. A2473).

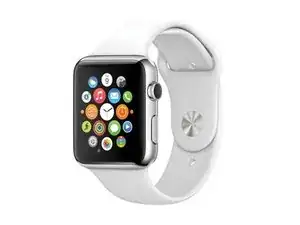

  4. eYZdL2rRcYFTkoBW
    eYZdL2rRcYFTkoBW
    5yYLmnOIhpClItqa
    JaITNEtOZQJsx4xN

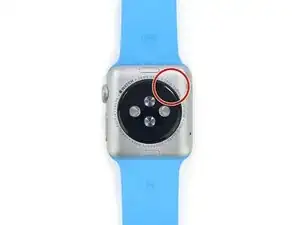

    • Model Numbers

    • A1553 (38mm)

    • A1554 (42mm)

    • The back cover is composite, with "Composite Back" and “7000 series” text written on it.

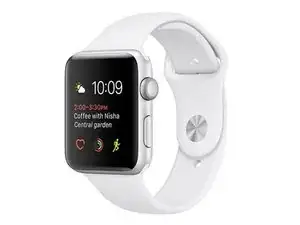

  5. R6NTBgLcu6qgYTFG

    • Model Numbers

    • A1802 (38mm)

    • A1803 (42mm)

    • Apple took their original Apple Watch, slapped in a faster processor, and called it the Series 1.

    • Composite back with 'Series 1' written on it.

  6. Hjsw4aZ4dpyXFePH
    Hjsw4aZ4dpyXFePH
    b4XpNTewa41nbetl

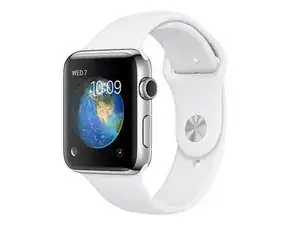

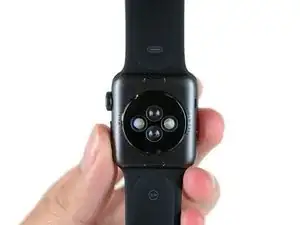

    • Model Numbers

    • A1757 (38mm)

    • A1758 (42mm)

    • A1816 (38mm)

    • A1817 (42mm)

    • Similar design to previous models but with the addition of built-in GPS. The back cover is ceramic, with 'Ceramic Back' and 'Series 2' written on it.

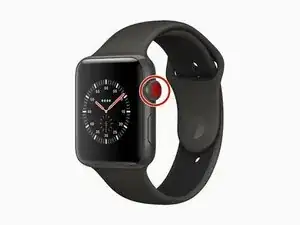

  7. TWevSjrJ2yi1ri3W
    TWevSjrJ2yi1ri3W
    WOM6gJqwrWRHZKdf
    4FSKcZDaAZwfKCsF

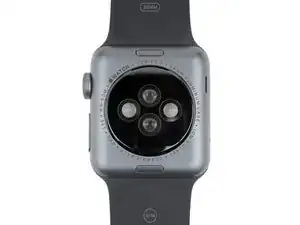

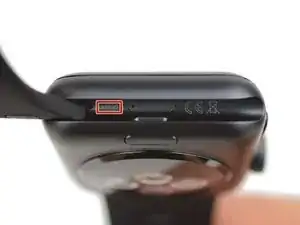

    • Model Numbers

    • A1858 (38mm GPS)

    • A1859 (42mm GPS)

    • A1860 (38mm GPS + Cellular)

    • A1861 (42mm GPS + Cellular)

    • Apple introduced a red dot on the Digital Crown if a GPS + Cellular model.

    • GPS-only models: the back cover is composite, with 'Composite Back' and 'Series 3' written on it.

    • GPS + Cellular models: the back cover is ceramic, with 'Ceramic Back' and 'Series 3' written on it.

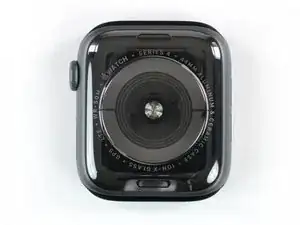

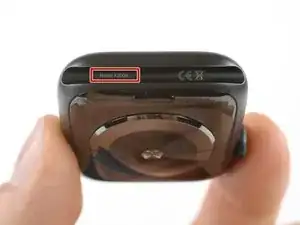

  8. jnPeKDonorDIHSAR
    jnPeKDonorDIHSAR
    fnUoIPUV1ERaDTlJ
    xsMaC3LgmoXJ3MDK

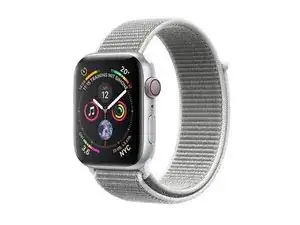

    • Model Numbers

    • GPS Only

    • A1977 (40mm), A1978 (44mm)

    • GPS + Cellular

    • A1975 (North America, 40mm), A2007 (Europe, Asia Pacific, and China mainland, 40mm) A1976 (North America, 44mm), A2008 (Europe, Asia Pacific, and China mainland, 44mm)

    • GPS + Cellular models feature a red ring on the Digital Crown.

    • Features a thinner body compared to the previous series.

    • The back cover is black ceramic with 'Series 4' written on it.

  9. RAST5Zf2WbyOGrjc
    RAST5Zf2WbyOGrjc
    mbDoEWNXKTUSDK1i
    UtmdyHIuHlDL3IyP

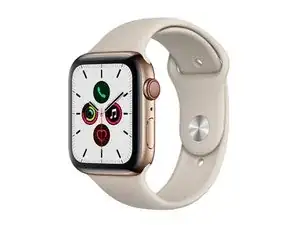

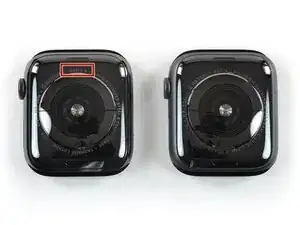

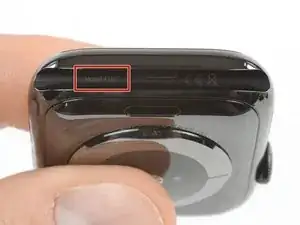

    • Model Numbers

    • GPS Only

    • A2092 (40mm), A2093 (44mm)

    • GPS + Cellular

    • A2094 (North America, 40mm), A2156 (Europe, Asia Pacific, and China mainland, 40mm), A2095 (North America, 44mm), A2157 (Europe, Asia Pacific, and China mainland, 44mm)

    • GPS + Cellular models feature a red ring on the Digital Crown.

    • Similar design to Series 4, but introduces the Always-On display.

    • The back cover is black ceramic, with 'Series 5' written on it.

  10. vSGunElYfG2THFkD
    vSGunElYfG2THFkD
    wbIqo6vSUBBBlujQ

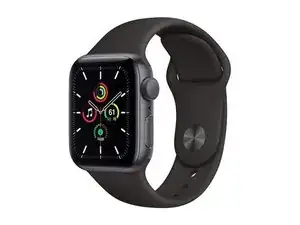

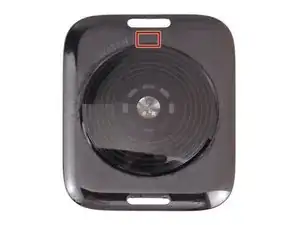

    • Model Numbers

    • GPS Only

    • A2351 (40mm), A2352 (44mm)

    • GPS + Cellular

    • A2353 (North America, 40mm), A2354 (North America, 44mm), A2355 (Europe, Asia Pacific, China mainland, 40mm), A2356 Europe, Asia Pacific, China mainland, 44mm)

    • GPS + Cellular models feature a red ring on the Digital Crown.

    • Similar design to Series 4 and 5, but lacks the Always-On display.

    • The back cover is ceramic, with 'SE' written on it.

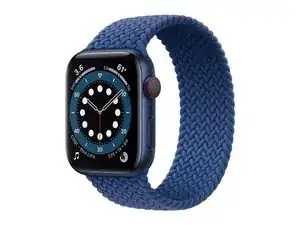

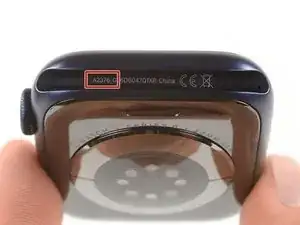

  11. MAfZLWSVnCMctJeC
    MAfZLWSVnCMctJeC
    pqZwQoFoTMKClw5Q
    bJ3waKq2VdjpmMEV

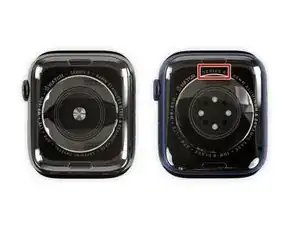

    • Model Numbers

    • GPS Only

    • A2291 (40mm), A2292 (44mm)

    • GPS + Cellular

    • A2293 (North America, 40mm), A2294 (North America, 44mm), A2375 (Europe, Asia Pacific, China mainland), A2376 (Europe, Asia Pacific, China mainland)

    • GPS + Cellular models feature a red ring on the Digital Crown.

    • Very similar design to Series 5, but introduces a Blood Oxygen sensor.

    • The back cover is ceramic, with “Series 6” written on it.

  12. 2C6kXBKgKYedsVXs
    2C6kXBKgKYedsVXs
    WVmJTG3ICcYcrs6V

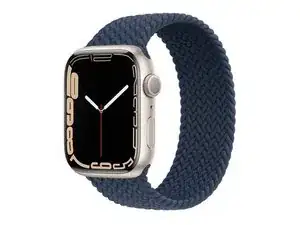

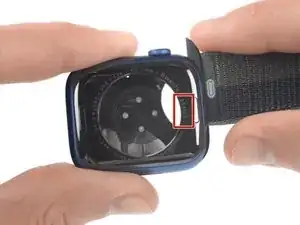

    • Model Numbers

    • GPS Only

    • A2473 (41mm), A2474 (45mm)

    • GPS + Cellular

    • A2475 (North America, 41mm), A2477 (North America, 45mm), A2476 (Europe, Asia Pacific, China mainland, 41mm), A2478 (Europe, Asia Pacific, China mainland, 45mm)

    • GPS + Cellular models feature a red ring on the Digital Crown.

    • Very similar design to Series 6 with the Blood Oxygen sensor.

    • The back cover is ceramic, with “Series 7” written on it.

  13. rc2D4smwBiosdaBU
    rc2D4smwBiosdaBU
    wMSBkyXZOhuPDZpS

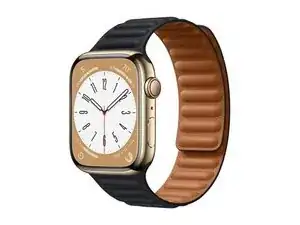

    • Model Numbers

    • GPS Only

    • A2770 (41mm), A2771 (45mm)

    • GPS + Cellular

    • A2772 (41mm North America), A2773 (41mm Europe, Asia Pacific), A2774 (45mm North America), A2775 (45mm Europe, Asia Pacific), A2857 (41mm China mainland), A2858 (45mm China mainland)

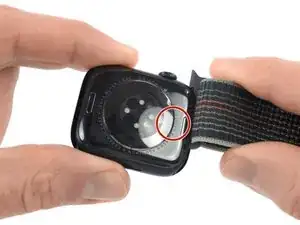

    • GPS + Cellular models feature a red ring on the Digital Crown.

    • Very similar design to Series 7 with the Blood Oxygen sensor.

    • The back cover is ceramic, with “Series 8” written on it.

  14. HFMuMCNWFMO1uINh

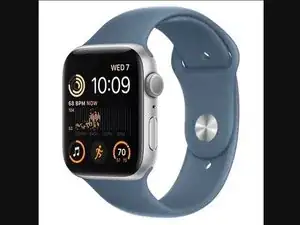

    • Model Numbers

    • GPS Only

    • A2722 (40mm), A2723 (44mm)

    • GPS + Cellular

    • A2724 (Europe, Asia Pacific, 44mm), A2725 (Europe, Asia Pacific, 40mm)

    • A2726 (North America, 40mm), A2727 (North America, 44mm)

    • A2855 (China mainland, 40mm), A2856 (China mainland 44mm)

    • GPS + Cellular models feature a red ring on the Digital Crown.

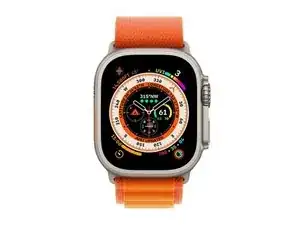

  15. 3H34p5NN5HXJfhCm
    3H34p5NN5HXJfhCm
    WoVZIuxovkXUT3di

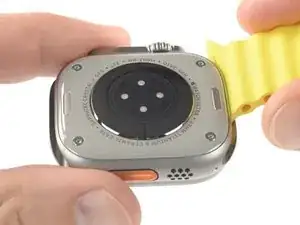

    • Model Numbers

    • A2622 (North America, 49mm)

    • A2684 (Europe, Asia Pacific, 49mm)

    • A2859 (China mainland, 49mm)

    • The crown has an orange ring on it.

    • It is a larger and more rugged watch than previous models and can be identified by “Watch Ultra” written on the back.

    • There are 4 visible pentalobe screws on the back.

Conclusion
  • If you see a red dot, red ring, or orange ring on the Digital Crown you have a GPS + Cellular model.
  • You can find the model number by removing the wrist strap or in the general iOS settings.
  • You can find the series on the back of the watch.
  • There are special Hermès and Nike versions of most of these watches which can be identified by their logos.
