How to Clean and Apply Thermal Compound

Written By: Reina Godeck
  • Comments: 0
How to Clean and Apply Thermal Compound

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

  1. M6CSbnO1ZxQ1MOnt

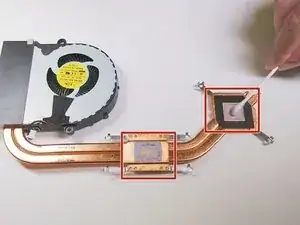

    • Saturate a cotton swab with isopropyl alcohol, and remove the thermal compound from the thermal plates on your component using gentle circular motions.

    • As the cotton swab becomes saturated with thermal compound, discard and continue with a freshly dipped cotton swab. The compound plate is clean when the cotton swabs come away clean.

  2. Sw4dGRjrGcJaiqQc
    Sw4dGRjrGcJaiqQc
    STWGCnaBsejsWWwi

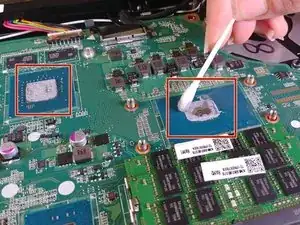

    • Repeat the same cleaning process from the previous step on the matching thermal plates on the motherboard.

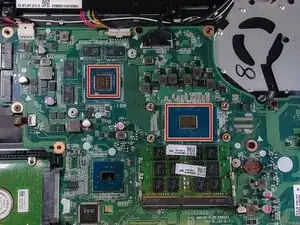

    • Avoid touching the thermal compound areas once they are clean. Dirt or oil on either surface can disrupt cooling performance and lead to overheating or thermal throttling.

  3. myZOgTJq12FKpILi
    myZOgTJq12FKpILi
    OMOk1QKFCYNOoaBN

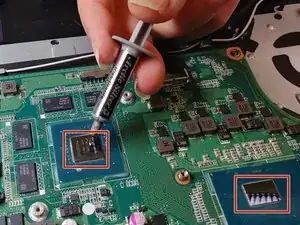

    • Apply a small amount of thermal compound, about the size of a grain of rice, on the corner of each the cleaned thermal plates on the motherboard.

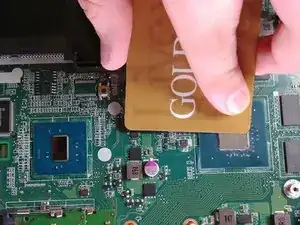

    • Using a clean plastic card, carefully spread the thermal compound evenly over the surfaces of each thermal plate.

    • You need to clean the thermal plates on both the component and the motherboard, but you only need to apply thermal paste on the motherboard thermal plates.

    • Avoid applying too much or too little thermal compound, as it can impede crucial heat transfer. Once spread, the compound should be about as thick as a single sheet of paper.

  4. B4nN6jgmDMdLIerS

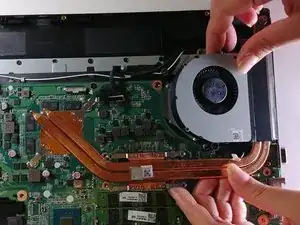

    • Gently re-seat your component, making sure that the thermal plates align correctly.

Conclusion

Please refer to the previous guide in order to reassemble your device.
