How To Disable the Oxygen Sensor (O2) Dash Light in a 1989–1994 Isuzu Amigo or Pickup

Written By: Carsten Frauenheim
  • Comments: 0
How To Disable the Oxygen Sensor (O2) Dash Light in a 1989–1994 Isuzu Amigo or Pickup

Difficulty

Moderate

Steps

11

Time Required

20 - 40 minutes

Introduction

Follow this guide to remove the bulb from the O2 sensor warning light on the dash of a 1989–1994 Isuzu Amigo or Pickup equipped with a tachometer, to disable/turn off the light forever.

The oxygen sensor warning light permanently illuminates after 90,000 miles. It being on does not mean you need to replace your O2 sensor; it's just a reminder, although O2 sensor replacement every 90,000 miles is a good recommendation. It will continue to illuminate after oxygen sensor replacement.

The proper procedure to turn off the light is to move a screw on the rear of the instrument cluster from one hole to another to reset it. Then, the light will re-illuminate at 180,000 miles, and the process is repeated.

An easier solution is to just remove the bulb that illuminates the O2 sensor light. This does not require unscrewing the speedometer cable from the back of the cluster.

Note: Some emissions testing requires proof that the light is functional in order to pass a smog check. Some testers will check if the light illuminates at key-on. If it doesn't, you risk not passing. Keep that in mind before you take apart your dash.

  1. bkUciKGoPKdWLkTP

    • Pop the hood.

    • Disconnect the negative battery terminal.

  2. 2NXyYCFNbpP2XKMi

    • Locate the sheathed speedometer cable. It runs along the firewall, at the back of the engine bay.

    • A malleable metal tab (green) holds a white plastic lock section (blue) of the speedometer cable in place.

    • Pry up the metal tab and unlock the speedometer cable, so it has slack and can shift back and forth.

  3. Ni4eZaPNiAUZVqDf

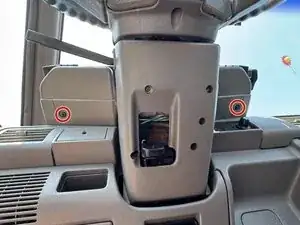

    • Inside, use a Phillips #2 screwdriver to remove the two screws holding the cluster surround in place.

  4. Y1uwEXHrLEipGkTA
    Y1uwEXHrLEipGkTA

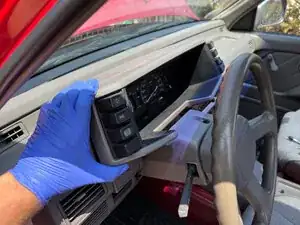

    YlKVeeCPfl4BVb2R

    • Adjust the steering wheel tilt to the lowest setting.

    • Pivot the bottom edge of the cluster surround out towards the steering wheel.

    • A row of clips holds the cluster surround in place along the top edge.

    • Pull the surround straight out. Keep in mind that it's still connected with cables on either side.

  5. KVVj2bo4Vl2LwJoL
    KVVj2bo4Vl2LwJoL

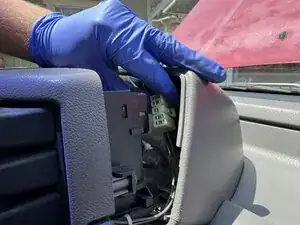

    PZymVw1riitv6Ftv
    FJTlPANMchutiKjH

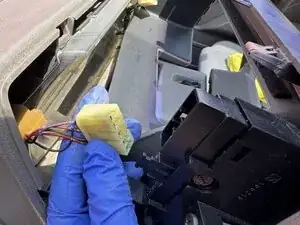

    • Pinch and disconnect the two button connectors on either side of the cluster surround.

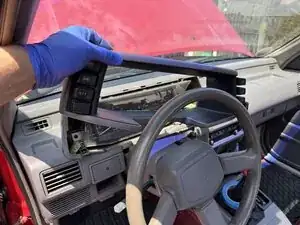

    • Remove the cluster surround.

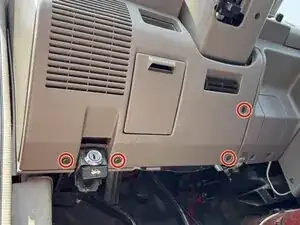

  6. ubMVAMSBfTpPA2hy

    • Use a Phillips #2 screwdriver to remove the four screws securing the under-dash cover.

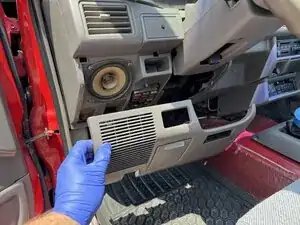

  7. TBqt6iewIFaiH6Zr

    • Some alignment clips along the upper edge hold the cover in place.

    • Pull the under-dash cover straight out and remove it.

  8. w3VpKpoeVv4wUwry
    w3VpKpoeVv4wUwry
    3dUrVbBdiBJjIr35

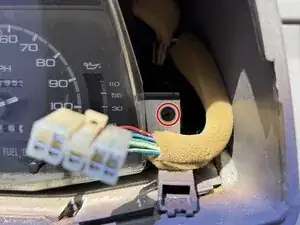

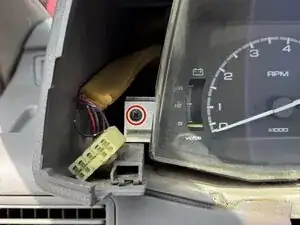

    • Use a Phillips #2 screwdriver to remove the two screws holding the front of the cluster in place.

  9. 4boCbiNIryVZ4hJv
    4boCbiNIryVZ4hJv

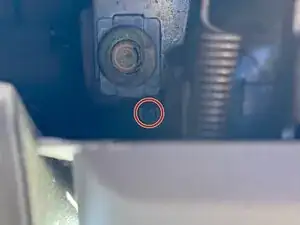

    vWj2DVn6elxu3WOr
    WXEGmIrbMGEKtc3F

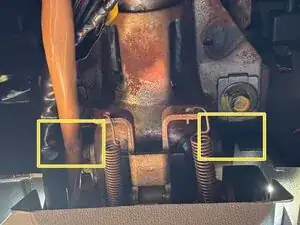

    • Two more screws secure the cluster from the underside, and they can be difficult to access. Lay down on your back, looking up at the steering column.

    • Focus on the yellow marked areas.

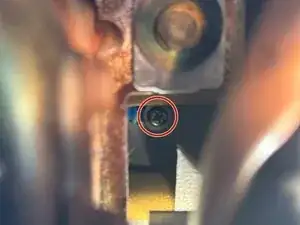

    • Use a long-shank Phillips #2 screwdriver to remove the two screws securing the bottom of the cluster.

    • Once loose, these screws might get caught on various bits under the dash. Take your time to locate them if they fall.

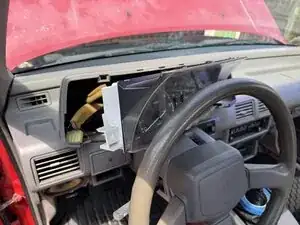

  10. 6SXHLShkmkQiDkKK
    6SXHLShkmkQiDkKK
    OHhc5aaEhkOMccPl

    • Slide the instrument cluster out, slowly. Rotate it, pulling the left side more than the right.

    • The bulb is on the left side.

    • The cluster is still connected with the stiff speedo cable and other connectors. Proceed slowly.

    • Continue pulling the cluster out, pulling the speedo cable slack you made earlier through the firewall.

    • Stop just when you can stick your hand behind the left side.

  11. C5Jw4ZbpNVuFgBXf

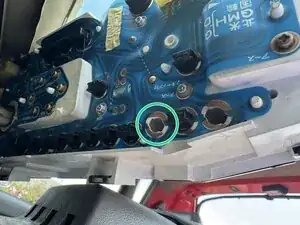

    • Use your fingers to gently twist and remove the O2 sensor bulb.

    • The O2 sensor bulb is the third from the left (or, third from the right when facing the back of the cluster).

Conclusion

To reassemble the dash, follow these steps in reverse order.

Fix didn't go as planned? Use our Answers community or ask over at planetisuzoo.com.
