Honda FC600 Tiller Throttle Lever Replacement

Written By: Craig Lloyd
  • Comments: 2
Honda FC600 Tiller Throttle Lever Replacement

Difficulty

Easy

Steps

6

Time Required

5 - 10 minutes

Introduction

Follow this guide to replace a broken throttle lever on the Honda FC600 tiller.

  1. afWWneI6nJJNnTSX
    afWWneI6nJJNnTSX
    aS1c2GhSauaImBWG
    NhrR5ZLy6WLc61ai

    • Before you begin, it's important that you completely cut power to the tiller by disconnecting the spark plug. This will prevent the engine from accidentally starting up while you're working on the tiller.

    • Grab the spark plug cap and pull it straight out to disconnect the spark plug from the engine.

  2. MjvpVHbF5QZShy1w
    MjvpVHbF5QZShy1w
    PiIODWQuQeBUiIOa

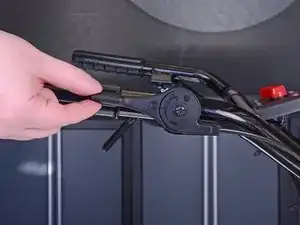

    • Push the throttle lever all the way down.

    where do i find the on/off switch in the picture?

    JEFFREY -

    The on/off switch is the red switch to the right of the photo. It is not needed for this repair.

    Craig Lloyd -

  3. IGGUSArVJUWHG1KR

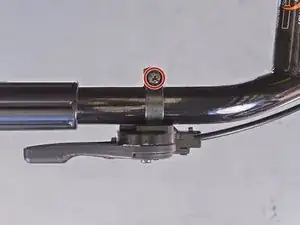

    • Remove the 23 mm-long Phillips #2 screw securing the throttle lever to the handlebar.

    • This screw is accompanied by a square nut. Be sure to retain it for reassembly.

  4. dCcOUJUbfpD1hIcX
    dCcOUJUbfpD1hIcX
    jenneQvDtUMTTkVO

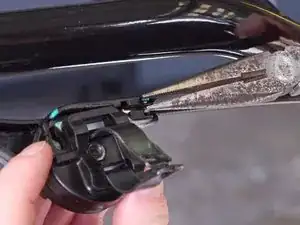

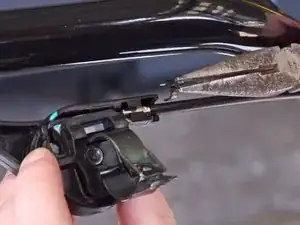

    • Use a pair of needle-nose pliers to remove the small clip attached to the throttle cable.

  5. sVRcxFcVWPcCErqx
    sVRcxFcVWPcCErqx
    sDEnY6JDfCwOsHq3

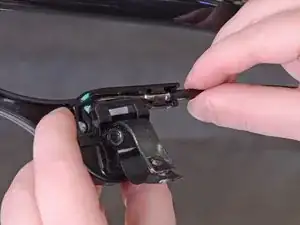

    • Grab the open end of the throttle cable and pull it out of the throttle lever to free it from its recess.

  6. 3HBZdrTtORhLgYVE
    3HBZdrTtORhLgYVE
    nilBcLYAS6hYeOqE
    rwxORc4IoU4sinjH

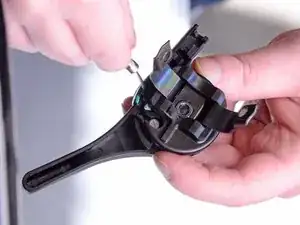

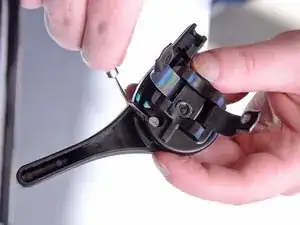

    • Continue to lift the throttle cable out of the throttle lever, making sure it clears the openings in the recess.

Conclusion

To reassemble your device, follow these instructions in reverse order.
