Honda EU2200IT A2 Muffler Replacement

Written By: Arthur Shi
  • Comments: 0
Honda EU2200IT A2 Muffler Replacement

Difficulty

Moderate

Steps

9

Time Required

No estimate

Introduction

This guide shows how to remove and replace the muffler on the Honda EU2200IT generator.

Note: There may be some visual differences between the photos and the device you’re working on. The differences are superficial and do not affect the repair procedure.

  1. 2RcWcdXnpuMICOPf

    • Before you begin, make sure the generator is switched off and the generator is cool to the touch.

  2. 4pUWZSMoPDsUsmgB
    4pUWZSMoPDsUsmgB
    ovqPPHBsYDOyPTWB

    • Lift and remove the spark plug cover.

  3. LBekvfGNewVuFSmt
    LBekvfGNewVuFSmt
    GSUCKM2i6mTB6bAt

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  4. IevjIFofarTfuvKQ

    • Remove the four Phillips screws securing the back cover.

  5. KMXm1ijxBJAWeUD4
    KMXm1ijxBJAWeUD4
    DGHwl5y2ljKY6Ujj

    • Remove the back cover.

  6. ynfUXaH52i3lIy2G

    • Use a 10 mm socket to remove the three bolts securing the muffler:

    • Two 50 mm-long bolts

    • One 75 mm-long bolt

    • During reassembly, these bolts should be tightened to 8.7 lb-ft.

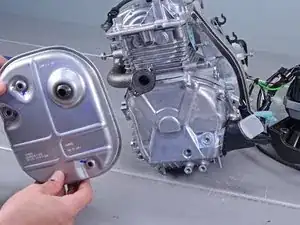

  7. xUJDTWJnpASCJNJM

    • Remove the muffler.

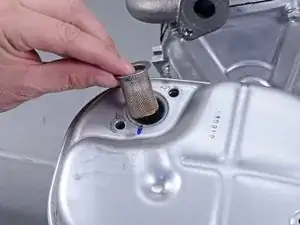

  8. KGoIiLiH3IfrVIvT

    • Use a wire brush to clean any deposits off the spark arrester.

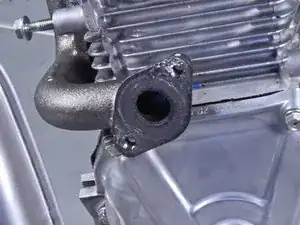

  9. DZdZCvq1ULDl3OIN

    • During reassembly, replace the muffler gasket if it shows signs of wear.

Conclusion

To reassemble your device, follow these instructions in reverse order.
