Hipstreet Titan Plus Motherboard Replacement

Written By: Kari Cannon
  • Comments: 0
Hipstreet Titan Plus Motherboard Replacement

Difficulty

Moderate

Steps

9

Time Required

25 minutes

Introduction

This motherboard replacement guide will walk you through the steps on how to remove necessary components in order to get to the motherboard. Replacing the motherboard is a moderate, four-step process using necessary tools, including a soldering iron.

  1. iVjtMKQ45fQ1XgqR
    iVjtMKQ45fQ1XgqR
    sRcysKS4kg1P5hDl

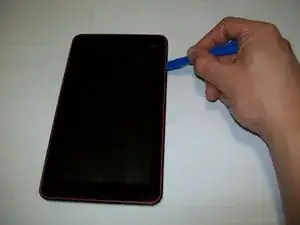

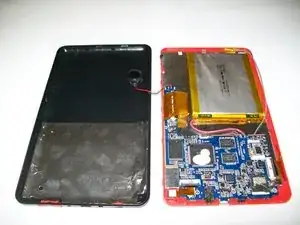

    • Use the plastic opening tools to pry the screen from the back of the device.

  2. M5npC5QwU1F2PPfC

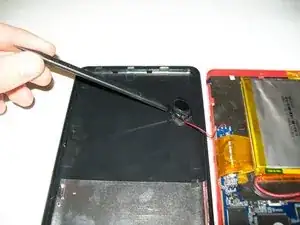

    • Use the spudger to remove the speaker from the back casing of the device.

  3. kSOKGF5vhIim2RiI

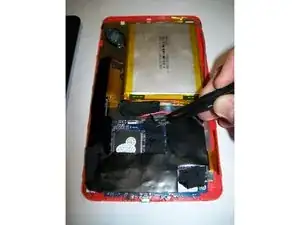

    • Remove the black adhesive strips from the wires using the tweezers, and set the strips aside.

  4. 6dCNoiwHslFpTSsg
    6dCNoiwHslFpTSsg
    QEp35ApxgDQyrmMU

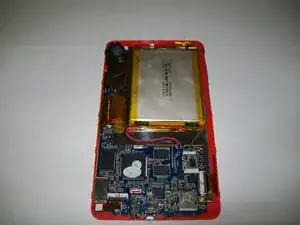

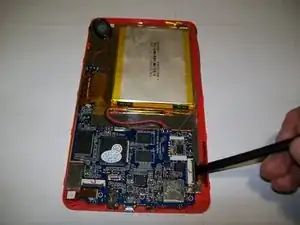

    • Use the spudger to release three (3) black clips connecting the components to the motherboard.

  5. FDlKjoKEFSoRQafX
    FDlKjoKEFSoRQafX
    Qn31g5WsMShBEmOd

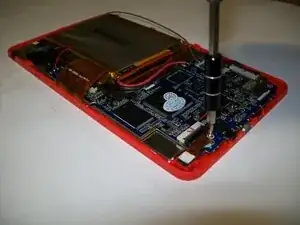

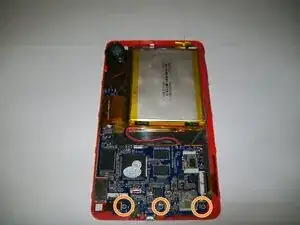

    • Unscrew the motherboard using a JIS #0 screwdriver.

  6. Y2BeISlHtrYxZRBa
    Y2BeISlHtrYxZRBa
    oKQE3PDCrRrZmPqX

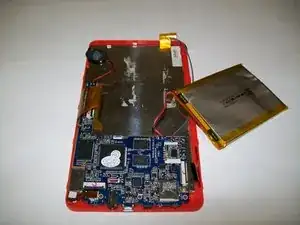

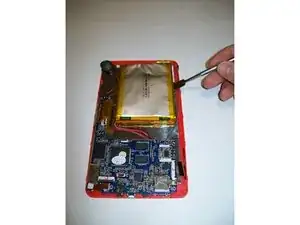

    • Use a nylon spudger to remove the battery from the back of the screen.

  7. DPoqnI2EfYGFDMVb
    DPoqnI2EfYGFDMVb
    tNDVHIQvDaeu3NsG

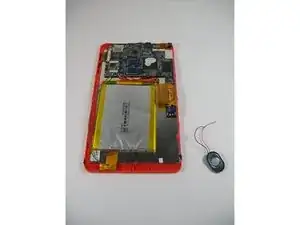

    • Use the soldering iron to heat the end of the wires connecting the speaker to the motherboard.

    • Apply heat until the wires are free.

  8. JXUggxHkqVWFW5rn
    JXUggxHkqVWFW5rn
    Nve2KO2LLU1VjsGi

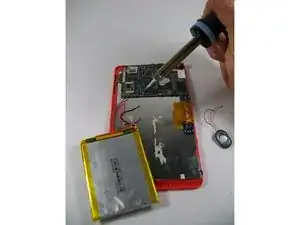

    • Using the soldering iron, apply heat to the end of the wires until they are free from the motherboard.

  9. A2LHY1hwEeZyovik
    A2LHY1hwEeZyovik
    XO4rNrZZdZKlTMcp

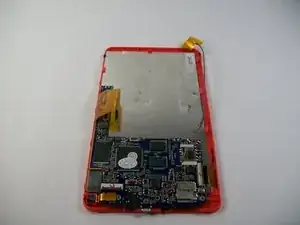

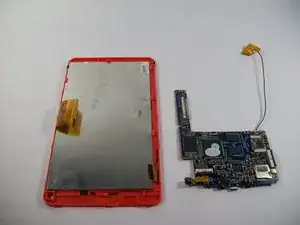

    • Now that the battery and speaker are removed, the black clips are undone, and the motherboard is unscrewed, remove the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
