Harman Kardon Invoke Service Port Replacement

Written By: Angel A. Grageda
  • Comments: 0
Harman Kardon Invoke Service Port Replacement

Difficulty

Easy

Steps

5

Time Required

10 minutes

Introduction

If your Invoke is not connecting to your computer in order to be serviced, there might be a problem with the service port and should be replaced. For this replacement you will need a metal spudger and a #10 Torx screwdriver.

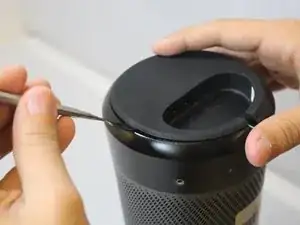

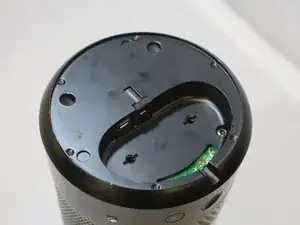

  1. 1WsketxROq6WTxhS
    1WsketxROq6WTxhS
    KGqXW2eLa1xlo1oD

    • Use a metal spudger to remove the rubber bottom.

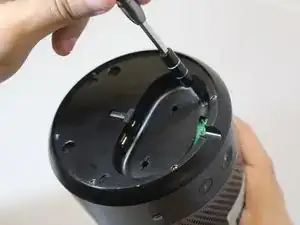

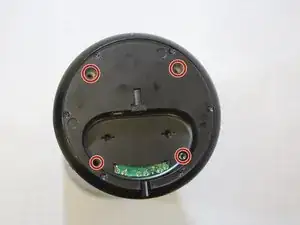

  2. IWyZANWUIRJlFM1j
    IWyZANWUIRJlFM1j
    YMQUECptVEMvABNA

    • Use a #10 Torx screwdriver to remove four 14 mm screws.

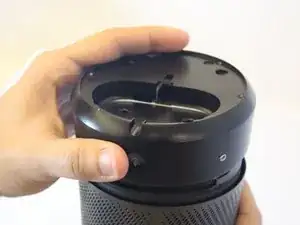

  3. CmLLe3aZMtTs22WC
    CmLLe3aZMtTs22WC
    uSATMsZW6Hl52gXP

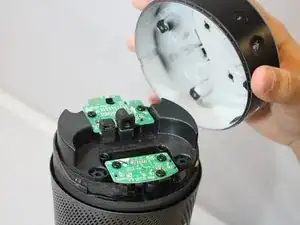

    • Firmly grip the bottom and wiggle upwards to remove the base.

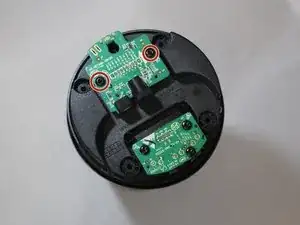

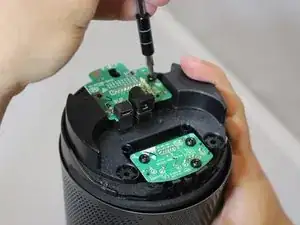

  4. hvVEpUgRHrpHiyVY
    hvVEpUgRHrpHiyVY
    GX5ifacm6NUFnRId
    TBblZVPP3ktlI6IV

    • Use a #10 Torx screwdriver to remove two 10 mm screws from board attached to ports.

    • Pull board up lightly.

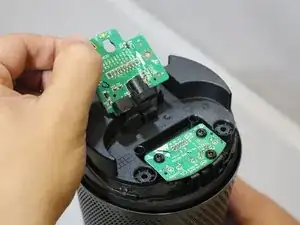

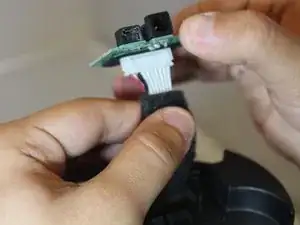

  5. snVFuhCj2I6M1qKR
    snVFuhCj2I6M1qKR
    FKrvR2mLI1RKJHBE

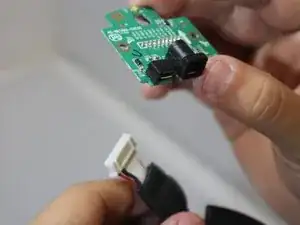

    • Pull cable to disconnect board from device.

    • For replacement of service port, you will have to replace whole board that the port is attached to.

Conclusion

To reassemble your device, follow these instructions in reverse order.
