Harman Kardon Invoke Power Port Replacement

Difficulty

Easy

Steps

5

Time Required

10 minutes

Introduction

This guide will help you to replace the power port of Harman Kardon Invoke. You may replace the power port if you faced a weak port that will affect the efficiency of the Invoke or a broken/old port that prevents the invoke from connecting to power. By replacing the power port, the Invoke should be connecting to the power perfectly.

  1. eWSdoL6XTHlRasxL
    eWSdoL6XTHlRasxL
    mPSDckDGEKFUfFKt

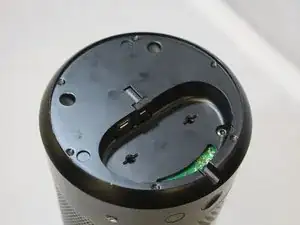

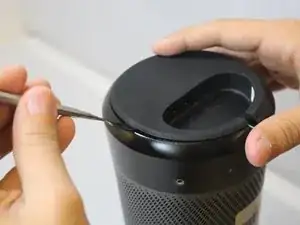

    • Use a metal spudger to remove the rubber base.

  2. cdUo5nNx5mIdYZoN
    cdUo5nNx5mIdYZoN
    D3KAAhqeU4PabEGu

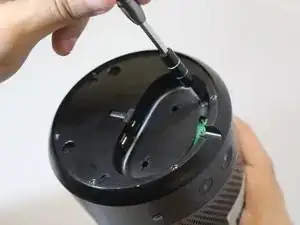

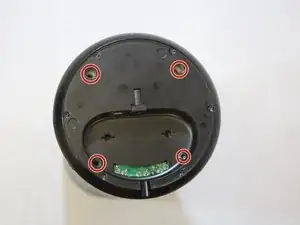

    • Use a T10 Torx screwdriver to remove the four 14 mm screws.

  3. YqhU3rc1ER5X5wxQ
    YqhU3rc1ER5X5wxQ
    UTn2SMhLfOGKDC6Q

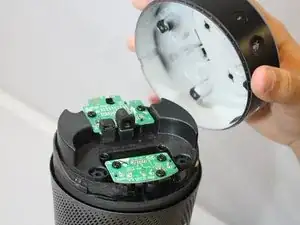

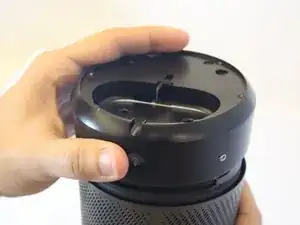

    • Grip the bottom firmly and wiggle upwards to remove it.

    Firmly grip the bottom

    Craig Blackwell -

  4. 4wKTqFAUkUEsXMJs
    4wKTqFAUkUEsXMJs
    Oob4hP4LlQmsdlno
    FSWRoLSyBoqOtDFS

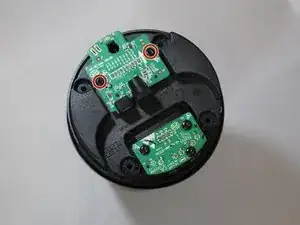

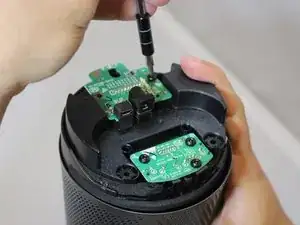

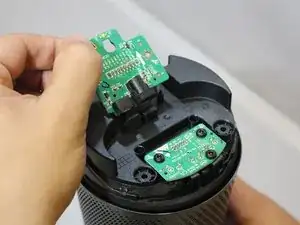

    • Use a T10 Torx screwdriver to remove two 10 mm screws from the board that is attached to the ports.

    • Pull the board up lightly.

    from the board that is attached to the ports.

    Craig Blackwell -

  5. n3bgmTLAsui2Ru3x
    n3bgmTLAsui2Ru3x
    YuK4RdtBEcLpE6SI

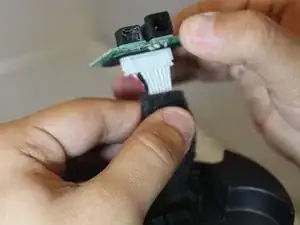

    • Pull the cable to disconnect the board from the device.

    • To replacement the service port, you will have to replace the whole board that the port is attached to.

Conclusion

To reassemble your device, follow these instructions in reverse order.
