HTC Desire 510 Front and Main Cameras Replacement

Written By: ZFix
  • Comments: 0
HTC Desire 510 Front and Main Cameras Replacement

Difficulty

Moderate

Steps

5

Time Required

10 - 15 minutes

Introduction

HTC Desire 510 / RIO - How to disassemble the device and replace the main or front camera.


  1. UXHTBLy2GQQOCJx6
    UXHTBLy2GQQOCJx6
    vDdmkfFDkITedenc
    6MMCFfXfJnG3V62w

    • Switch off the phone, remove the battery and any installed SIM and memory cards.

    • Remove 7x Torx T5 screws.

  2. PVDrCYyuOCKwVgqr
    PVDrCYyuOCKwVgqr
    ImVOoH3ovrHD3X4B
    N2iEx2scf1y3fcRx

    • Use a plastic tool to remove the rear bezel.

    • The loudspeaker is on the inner side of the rear bezel.

  3. XupsI5TPFwo6JaXM
    XupsI5TPFwo6JaXM
    YTQHyE6ehxVhTxpW
    CFGfCUHEBg4uty24

    • Disconnect the touch screen flex cable.

    • Disconnect the light sensor flex cable.

    • Unstuck the vibra-motor from the middle frame.

    • Remove the coaxial antenna cable from the middle frame.

    • The LCD display flex cable is connected to the bottom side of the board.

  4. lPlLhXstTrnPGpaW
    lPlLhXstTrnPGpaW
    JOhZcBolMFaqiJXt
    KCU6r5oXEcUV2cWR

    • At the upper left side, the board is held by a plastic locking clip. Use a plastic tool and start the separating from here.

    • Gently disconnect the LCD display flex cable.

    • Now remove the logic board.

  5. 33Hl4hcSbcMW4Isu
    33Hl4hcSbcMW4Isu
    xcKY2YnZIBg3Mpw1

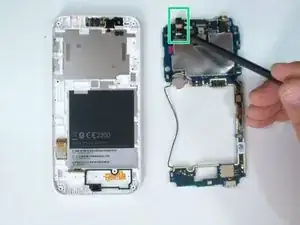

    • Main / Rear camera.

    • New line.

Conclusion

To reassemble your device, follow these instructions in reverse order.
