HP Photosmart c3180 Main Circuit Board Replacement

Written By: Jim
  • Comments: 15
HP Photosmart c3180 Main Circuit Board Replacement

Difficulty

Difficult

Steps

39

Time Required

20 - 30 minutes

Introduction

  1. OKnwwk4wKnmRT1TC
    OKnwwk4wKnmRT1TC
    4mMrqMtB2SbxGwDb

    • Before disassembling your printer, be sure that the printer has been unplugged to avoid any risk of injury.

    • Rotate the printer 90 degrees counter clockwise so that the side panel next to control panel is facing you.

    • Remove the two T10 12mm Torx screws from the left side panel.

  2. 6tGoCT5KMFM5Tujb
    6tGoCT5KMFM5Tujb
    sol1ObLCA3Fi5bCP

    • Firmly pull the the back of the side panel until it separates from the body of the printer.

    • Rotate the side panel upwards while pulling it towards yourself to remove the panel.

  3. CJLV3tKkxatgK3C6
    CJLV3tKkxatgK3C6
    VUrdBBDEuq3CDUmO

    • Rotate the printer 90 degrees clockwise.

    • Grasp the paper tray and rotate it down.

    • Insert your fingers into the slot in the printer door and pull to rotate the gate down.

  4. MQNKnT1dnoAeoGPb
    MQNKnT1dnoAeoGPb
    oeKScQC6qWbRxPgM

    • Rotate the printer 90 degrees clockwise.

    • Remove the two T10 12 mm Torx screws.

    • Grasp both sides of the side panel and pull it forward to remove the panel.

  5. lwpt6KWNfsIpZUtp
    lwpt6KWNfsIpZUtp
    ZfvKNRS54AeP1RaT

    • Rotate the printer 90 degrees counter clockwise.

    • Lift the scanner lid to expose the scanner glass.

  6. UATXBmLKNIQvWHWj

    • Remove the two T10 12 mm Torx screws.

    • Do not attempt to lift the top panel off the printer yet because it is still connected to the printer body by a cable.

  7. MCf1iKQovxZeKoOs
    MCf1iKQovxZeKoOs
    tRdaT6fmasSfwWJE

    • Rotate the printer 90 degrees counter clockwise.

    • Inside the printer is a small white tab. Press it inward with a spudger until a pop is heard.

    • Remove the front panel by grasping its front and pulling away from the printer.

    Änderung des Textes: die kleine Lasche verriegelt die kleine Frontblende: mit leichtem Druck Richtung “rechte Druckerseite entriegeln, gleichzeitig jene Blende nach vorn lösen.

    Garofalo -

  8. b4wmJyCQ4dGIfRQm
    b4wmJyCQ4dGIfRQm
    noxLPZnY6FFCoqRa

    • Rotate the printer 90 degrees clockwise.

    • Remove the cable connecting the top panel of the printer to the power button assembly.

  9. I5PMnusHEehpT52Y

    • Carefully lift the top panel of the printer away from the printer body.

    nur die dünne weiße Abdeckung, die graue bleibt noch; zuerst hinten anheben, vorn ist mittig eine Nase zu lösen.

    Garofalo -

  10. kdAjRMatOK2mBmrD
    kdAjRMatOK2mBmrD
    JZLIceFLlhVOXCqX

    • Set aside the top panel of the printer.

    • Remove the two T10 12 mm Torx screws from the top front of the printer

    zunächst links seitlich das feine weiße Flachbandkabel vorsichtig aus seinem Stecker ziehen: hat keine Verriegelung o.ä.

    Garofalo -

  11. HGdEHIiNLkGHByDV
    HGdEHIiNLkGHByDV
    aV6VwQ14HPqGDMoa

    • Rotate the Printer 90 degrees counter clockwise.

    • Remove the scanner cable from the main circuit board.

    • Grasp the bottom of the cable and pull straight up. Do not wiggle it from side to side or twist it as this can damage the connection.

  12. BULBbFvBBsStKXDS

    • Rotate the printer 90 degrees clockwise.

    • Using both hands, lift the scanner tray from the body of the printer.

  13. T5hqZRNUwDoBkZs5
    T5hqZRNUwDoBkZs5
    N1SIQlAJcXeARh6U

    • Remove the power button circuit board from the support frame by pinching the left side, and pulling forward and to the left simultaneously.

    • Push up on the tab holding the secondary control circuit board with the spudger and pull it forward to remove it.

    • Be careful not to pull too hard on the cable connecting the power button control circuit board and the secondary control circuit board to the main circuit board

  14. 3Kne5H4jvIjjgCiC
    3Kne5H4jvIjjgCiC
    abk3WcPVBWgCRHKu

    • Remove the two T10 12 mm Torx screws.

    • Lift the support frame off of the printer body with both hands.

  15. 2yyD1IHxOxHfVNvJ

    • Remove the printer door and paper tray by putting them in the closed position and not laying flat then rotating them upwards lift the left side up.

  16. 4HIndoooG1MmuXkR
    4HIndoooG1MmuXkR
    dDQf1VGFGp3Z2Mtf

    • Remove both of the ink cartridges by grabbing the front of the ink cartridge and pulling down.

    • Make sure that the printer carriage is pushed all the way to the right.

  17. oaZXWpoXOnw1s2fW
    oaZXWpoXOnw1s2fW
    YuiHkVcmw5wagsUM

    • Remove the T10 6 mm Torx screw on the left side of the track assembly.

    • Remove the T10 12 mm Torx screw on the left side of the track assembly.

  18. pqeRRLGGplOlrFGR
    pqeRRLGGplOlrFGR
    LGMLR5XRByYL3E5Y

    • Gently push the ink cartridge carriage to the left side of the printer.

  19. Tm5PSOSj61PQlb1J

    • Remove the two T10 12 mm Torx screws.

    • Remove the two T10 6 mm Torx screws.

  20. pOaymPSvpBRLTPwE
    pOaymPSvpBRLTPwE
    mZogFoRrU2TekTxK

    • Rotate the printer 90 degrees counter clockwise.

    • Remove the cable connecting the ink cartridge carriage to the main circuit board.

    • Pull straight up to free the cable from the main circuit board. Do not twist or wiggle the cable as doing so can damage it.

    • You may need to lift the carriage up with one hand in order to reach the cable with the free hand as shown.

  21. pnetJYHZRrhIQ6TU

    • Carefully remove the connector holding the drive motor wires to the main circuit board.

  22. sPKwuLZvRBCMgR3E
    sPKwuLZvRBCMgR3E
    VG4JWNWESLeVcnDK

    • Slide the ink cartridge carriage all the way to the right side of the printer.

    • Using both hands, carefully lift the ink cartridge track off of the main body of the printer.

  23. 2MZYvmhWOI2IqvFb
    2MZYvmhWOI2IqvFb
    thVSuV2OXoogAuEd

    • Set aside the ink cartridge carriage.

    • Remove the three T10 12mm Torx screws holding the paper guide to the printer body.

    • Lift the paper guide directly up to remove it and set it aside.

  24. TC62ZIFEYdsev32I
    TC62ZIFEYdsev32I
    YUwEAiRBP3K1Akcq
    RD1fsOhiHmHLTjAw

    • Remove the five T10 12mm Torx screws from the roller holder.

    • 5th screw is located in deeper crevice.

  25. pAYcyhSJ5wdZCOHl

    • Remove the plastic gear cover by pulling it away from the printer body and lifting it up.

  26. QlCmXL6LlVyWNGPn
    QlCmXL6LlVyWNGPn
    oKGPjijUhwwlktWD

    • Remove the metal tab by rotating it away from the body of the printer and pulling up.

    • Remove the brush by grasping it firmly by the base and lift straight up.

  27. oqFKGJ33dUeAXQTY

    • Remove the pad holder by lifting it straight up.

  28. KdfK4Anm6EKCjKNo
    KdfK4Anm6EKCjKNo
    wdirdarMIP4UTrwB

    • Remove the connector holding the feed roller motor to the logic board by pulling it strait up

    • Remove the T10 12mm Torx screw on the roller panel.

  29. IShvoJnvjpKUL46k
    IShvoJnvjpKUL46k
    BCUCFd3TuynBsry6

    • Disconnect the page sensor from the logic board by pulling straight up on the connector.

  30. DD3ocUGq5JftQS1r
    DD3ocUGq5JftQS1r
    pYWeYy4YBDEC2vnk
    MUdoHFBmMHRbCoWv

    • Rotate the printer 180 degrees and turn it up on to the front side, so that the back of the printer is facing up and the bottom facing you.

    • Be careful because the feed roller assembly is now loose, but it is still attached to the main body of the printer.

    • Push in the tab on the left side of the back panel and pull outward to remove the back panel.

    Doubtful many will read through steps beforehand to complete the tear down, but the rotation isn’t necessary. Back panel can be removed keeping the printer horizontal. In the next step, if this screw is removed at the beginning, parts will simply drop out if you lift printer up vertically (or might need a little help from you). No need to worry about the loose feed roller assembly.

    Brownbailey -

  31. TRog1xFUZWRYlgXU
    TRog1xFUZWRYlgXU
    EtEQOkNOH4L62qGF
    bFsPOPsRXQx23nIT

    • Tilt the printer up until the bottom of the printer can be seen.

    • Remove the T10 12mm Torx screw from the bottom panel.

    • Grasp the top edge of the bottom panel and pull to remove it.

  32. DxoP1OLcWYHu36mt
    DxoP1OLcWYHu36mt
    1cIOlBNRR4oAd3Yf

    • Remove the black plastic cross member from the bottom of the printer.

  33. KUSuqVb1oMDJmSca

    • Turn the printer back down so that it is sitting on the bottom panel and rotate the printer 180 degrees.

  34. CZ4gSl2xmpnGEfWU
    CZ4gSl2xmpnGEfWU
    3rgmXYHZbhyKemAK
    vamV3TPCETeuUopV

    • Remove the printer head cleaner by lifting the front of the printer head cleaner above the track and slide it forward.

    • This is an extremely difficult step. It can take quite a bit of force to lift the printer head cleaner above the track and it is easy to slip and hurt yourself.

    If you place a small screwdriver blade over the front left guide and under the print head cleaner and then slide the cleaner forward (so that it rides over the guide rail) it will come out easily.

    Simon Carter -

    That worked. Thank you. I thought I wasn’t going to be able to get it out without breaking something. But when I saw your comment I gave it a try and it worked perfectly.

    Diane Livingston -

  35. 6rSBcJEHTCfMLPFm
    6rSBcJEHTCfMLPFm
    ayTdSBt6Llv1mgih
    tC1YpYFaaCPjgIxt

    • This step can be performed with out rotating the printer, but we have rotated the printer for clarity.

    • Grasp the left side of the feed roller assembly and pull towards the front of the printer and up to free the metal tab from the slot.

    Thanks! Me sirvió

    Maletil Sh -

  36. qgs5GOdHn4rO2taa

    • Lift the feed roller assembly straight up to remove it.

    Dieser letzte Arbeitsschritt kann wohl nur zum endgültigen Zerlegen des Geräts dienen.

    Den Mechanismus der Transportrollen etc wieder zum Funktionieren zu bringen, erweist sich

    als höchst schwierig - nicht zu empfehlen.

    Dem Autor sei aber allerhöchster Dank gesagt, dass er sich die Mühe gemacht hat, alle Montageschritte

    klar zu beschreiben und auch mit Bildern zu ergänzen - sogar einige Pop-up Hinweise sind dabei.

    Bravo und nochmals Dank für eine so saubere Arbeit. Garofalo

    Garofalo -

    While removing this a small plastic shaft with gears on both ends fell out not sure where to put it back

    brandon_thomason -

    Same happened to me. Did you find out where to re-insert it?

    Mario Tornabene -

    Same thing with that gear assembly; if I can’t figure out where it goes, it means a new printer!

    trprowda -

  37. FFiNXQDq1GbvsylM
    FFiNXQDq1GbvsylM
    cYOcwXGyHn3ljJGc
    UPeUxuRenrntOTTV

    • Set aside the feed roller assembly.

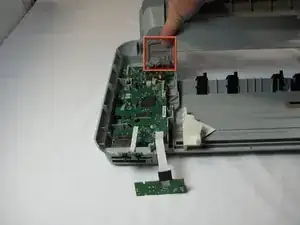

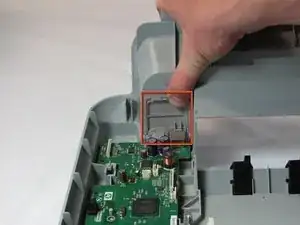

    • Push down on the tab that is on the power and USB back panel and then away from the printer to remove the power and USB back panel.

  38. C3voM6SLvOEyd3Wy
    C3voM6SLvOEyd3Wy
    Y1Ndegs56SGcgX6u

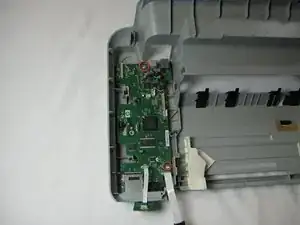

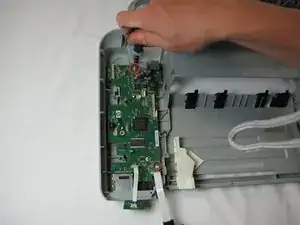

    • Remove the two T10 12mm Torx screws from the main circuit board.

  39. gStTCVQEsjwJoivR

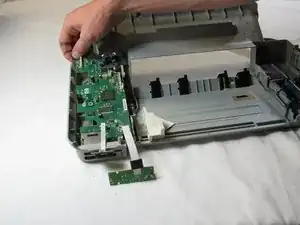

    • Remove the main circuit board by gently lifting it up from the back and pulling away from the front of the printer.

    • Be careful not to lift to fast, as doing so can cause damage to the main circuit board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
