HP Officejet J4550 All-in-one Paper-Feed Roller Replacement

Written By: Jiayin Zhu
  • Comments: 0
HP Officejet J4550 All-in-one Paper-Feed Roller Replacement

Difficulty

Easy

Steps

3

Time Required

4 minutes

Introduction

Is the paper not coming out of your printer correctly? Consider using this guide to replace the paper feed roller in your printer.

  1. nAkXrdySsMOXOISi
    nAkXrdySsMOXOISi
    PmREBlQkRMI2BSMU

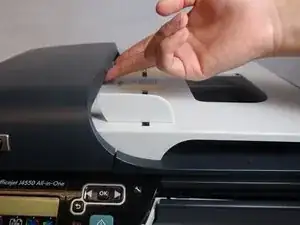

    • Open the document feeder cover by flipping it to the left with the front panel facing you.

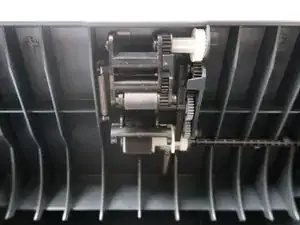

    • Locate the manual paper-feed roller end of the document feeder cover.

  2. Vcdr6DXIcFDVs45e

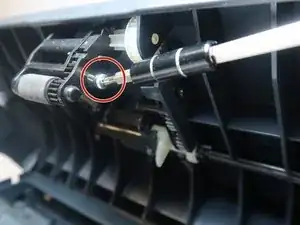

    • Remove the 10mm screw on the side of the roller with T8 torx security screwdriver.

  3. XJEMcFYorqKBYcVZ
    XJEMcFYorqKBYcVZ
    Dyj2DnTVUSUQwlnE

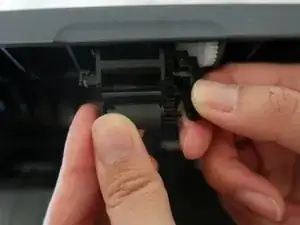

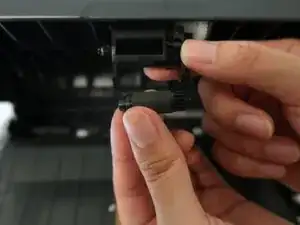

    • Pull the side cover of the paper-feed roller to the right and remove the paper roller.

Conclusion

To reassemble your device, follow these instructions in reverse order.
