HP Elite x2 1012 G2 Prop Stand Replacement

Written By: kefil
  • Comments: 1
HP Elite x2 1012 G2 Prop Stand Replacement

Difficulty

Very easy

Steps

3

Time Required

5 minutes

Introduction

  1. LNRZiBGZKART5Gub
    LNRZiBGZKART5Gub
    QRtXxVQVnkxKTHXP

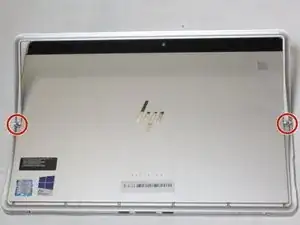

    • Lift the prop stand approximately 140 degrees from its home position to expose two T5 Torx head screws.

  2. RmriT6ACMJX1rDfN

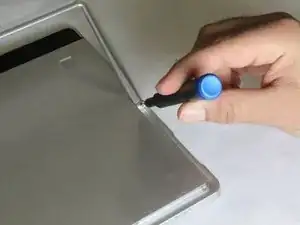

    • Use the T5 Torx bit to remove both screws from the prop stand pivot points.

  3. DPuWB6Sp5UmURQl1

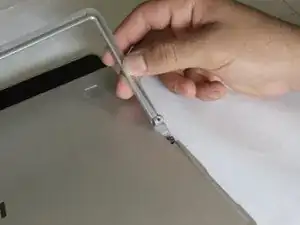

    • Gently pull the stand away from the device until you can lift the prop stand away from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
