HP Compaq Presario CQ56-110US Keyboard Replacement

Written By: Iyonna L. Tynes
  • Comments: 1
HP Compaq Presario CQ56-110US Keyboard Replacement

Difficulty

Difficult

Steps

9

Time Required

7 - 10 minutes

Introduction

Use this guide to replace the entire keyboard if it is unresponsive or not functioning properly.

  1. HZDO4ARCTQBZiO6f
    HZDO4ARCTQBZiO6f
    fAyaJAhZHnpXlJcQ

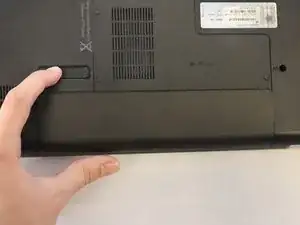

    • Ensure that the laptop is completely powered off, then flip it over to identify the battery latch located towards the bottom of the back panel.

    • Push the latch to the unlocked position.

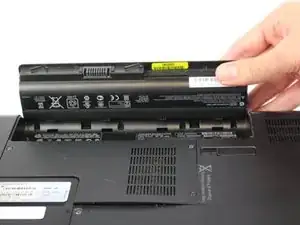

  2. TD1A5HCAIs2m4Cpa

    • Gently take out the battery.

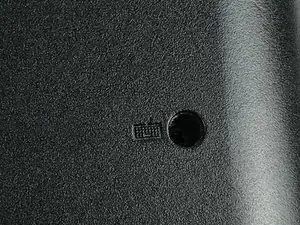

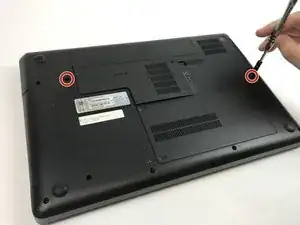

  3. xxphHADjgXIfefVV
    xxphHADjgXIfefVV
    4HVyOLxXT5h6wWad

    • On the back panel of the laptop are two screws which have a keyboard symbol next to them.

    • Using a Phillips screwdriver with a PH0 bit, remove both the 7mm and 5.5mm screws.

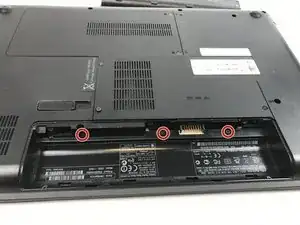

  4. IItnmUGWjsNys3PN
    IItnmUGWjsNys3PN
    ZSCtLP23K6CXqN2V

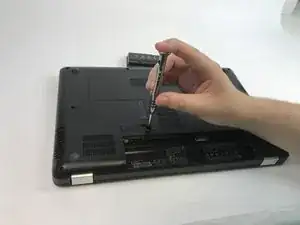

    • From left to right, unscrew the 5.5mm screw, the 7mm screw, and the 5.5mm screw located in the battery panel with the screwdriver.

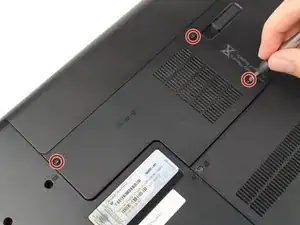

  5. eF5bQcQYmpFZIOeM
    eF5bQcQYmpFZIOeM
    jqKJHgLFWKBPcSLD

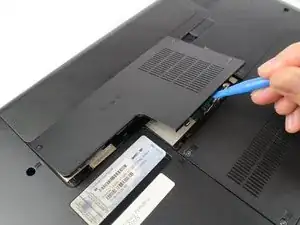

    • Remove the RAM panel by unscrewing the three screws with the PH0 Screwdriver Bit.

    • The screws do not come free from the panel. They only need to be loosened enough so that the panel can be lifted/pried using a plastic opening tool

    • Remove the RAM panel using a plastic opening tool.

  6. dEgHt4YGitDK2GPa

    • Inside the RAM panel, use the screwdriver to remove the 5mm screw pictured.

  7. gkvtAdjeUgA4ULpf

    • Flip the laptop back over and lift the lid to expose the keyboard.

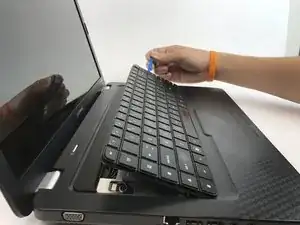

  8. Bl3Ye4H5uhDu2bHe
    Bl3Ye4H5uhDu2bHe
    CufWp54KJYLctjrN

    • Use a plastic opening tool to pry up the keyboard.

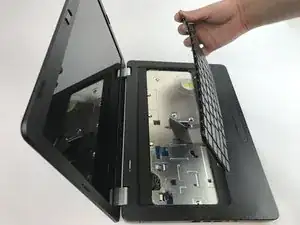

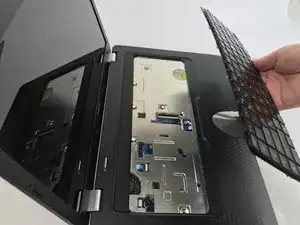

  9. nHahX5QsvbWRME2A
    nHahX5QsvbWRME2A
    SxZM3uAL2dcGpXtM

    • Once the keyboard is lifted, disconnect the band.

Conclusion

To reassemble your device, follow these instructions in reverse order.
