HP Chromebook 15a-nb0013dx Wi-Fi Module Replacement

Written By: Sahid
  • Comments: 0
HP Chromebook 15a-nb0013dx Wi-Fi Module Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 15 minutes

Introduction

If you are experiencing slow internet connection or an inability to connect to the internet and have ruled out software issues, use this guide to replace your HP Chromebook 15a-nb001dx's Wi-Fi module

The Wi-Fi module is the primary connector from your laptop to the internet. If you notice any problems with buffering apps, your laptop is most likely not connecting properly. Updating or replacing the Wi-Fi module should rectify these issues.

When replacing the Wi-Fi module, make sure the device is powered off.

  1. aPrPUuaLUSnd2fVH
    aPrPUuaLUSnd2fVH
    MdnpfsJJpxmLfneY

    • For your safety, unplug all peripheries, discharge the battery below 25%, and power down your device before beginning disassembly.

    • Lay the device down so the lower case is facing up.

  2. h23XgMhsGBoZChwM
    h23XgMhsGBoZChwM
    mpkBW6JBpce5ySww
    45ydgLME6DvnYkEq

    • Use a Phillips screwdriver to remove four 6.6 mm screws that secure the lower case.

  3. h5EqGGIaEmOZrR2p
    h5EqGGIaEmOZrR2p
    YJfKlgYQOXodTNBZ
    yBdZ35cshFLFg3bh

    • Insert an opening tool into the seam between the lower case and the chassis, near the hinge.

    • Pry around the entire perimeter of the lower case until it fully releases.

    • Remove the lower case.

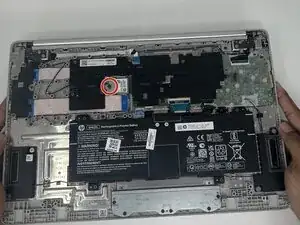

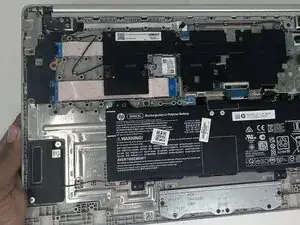

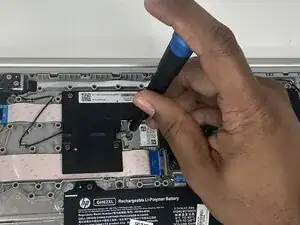

  4. MA4OlVZn3PWAUpXW
    MA4OlVZn3PWAUpXW
    IBYVL4ybbZjckJjR
    piMQA2JXXMoKJQWZ

    • Use a Phillips #0 screwdriver to remove the one 4.1 mm screw that secures the metal bracket on top of the Wi-Fi module.

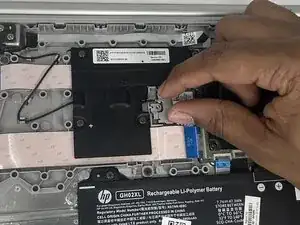

  5. ATUal1FsXEKIpCPw
    ATUal1FsXEKIpCPw
    yrCZgrr5CGlxMZTT

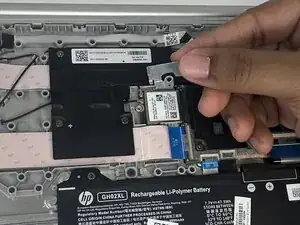

    • Grasp and remove the metal bracket.

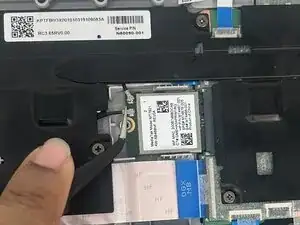

  6. YFR5MDosRPAbTAcK
    YFR5MDosRPAbTAcK
    dFYDvWfoNImgmSnX

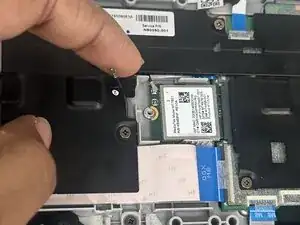

    • Use angled tweezers to lift up and disconnect the lower Wi-Fi module coaxial connector.

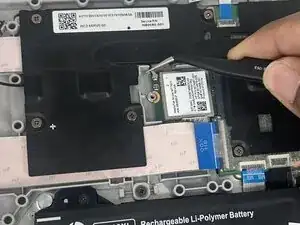

  7. yESBccFhd1IHtOZL
    yESBccFhd1IHtOZL
    LNRYQMsaUfoqMaoC
    eRn2aGIpZ1elYFiQ

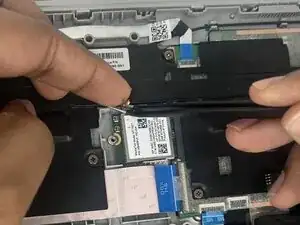

    • Use angled tweezers to lift up and disconnect the upper Wi-Fi module coaxial connector.

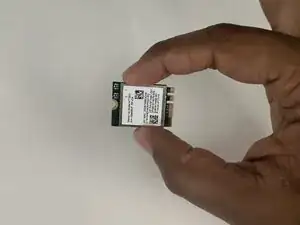

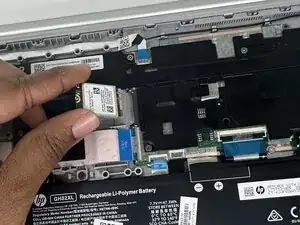

  8. vbjVtWFYqKhbDl4r
    vbjVtWFYqKhbDl4r
    1UkU5ehxedDgT1Et
    MXTNhVtPXIwMrWNX

    • Grasp the Wi-Fi module and pull it directly out of its socket.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
