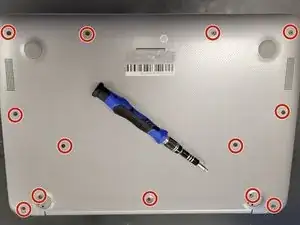

Starting with the laptop on its back, remove the 13 screws holding the keyboard in place with a P00 screwdriver (2 screws are hidden behind the rubber footers)
 -

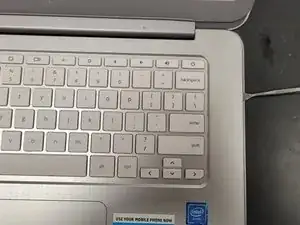

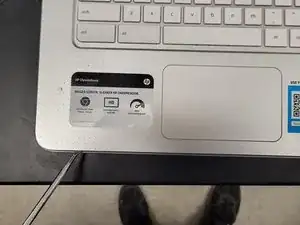

Open the screen, revealing the keyboard. Using a prying tool, 'pop' the keyboard out by sliding the tool around the edge

 -

 -


-

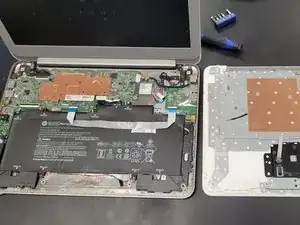

Gently raise the keyboard from the body, careful not to rip out the ribbons
 -

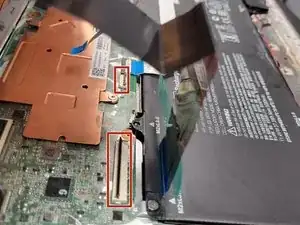

With light pressure, flip the black bar holding the ribbons in place, and remove the ribbons from the body

 -

 -


-

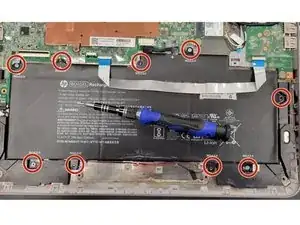

With a P00 Screwdriver, remove the 9 screws holding the battery in place
 -

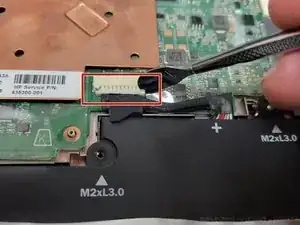

Gently pry the cable connecting the battery to the motherboard off
 -

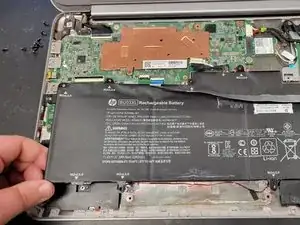

Battery will lift away from the body (screen will now be heavier than the body, be careful not to drop it)

 -

 -


-

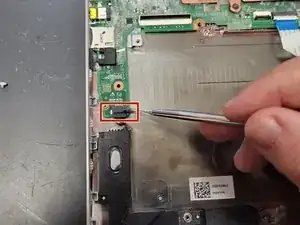

Gently disconnect the cable connecting the internal speaker to the motherboard
 -

Using a P00 Screwdriver, remove the final screw from the left speaker
 -

Using a prying tool, carefully remove the speaker out of the body

 -

 -


-

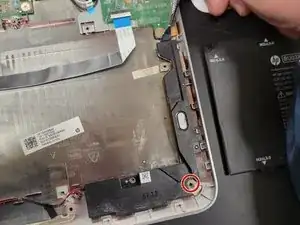

With a P00 Screwdriver, remove the final screw from the right speaker
 -

Carefully remove the right internal speaker from the body
 -

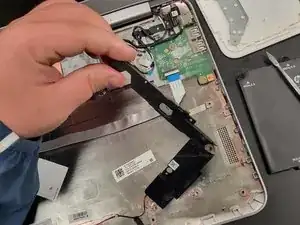

The entire speaker (barring some tape you may need to remove) should lift away from the body of the laptop

 -


To reassemble your device, follow these instructions in reverse order.
