Introduction
If you're having a problem with hearing your device and already determined that volume level was not the cause then this guide will show you how to change out the speaker.
-
-

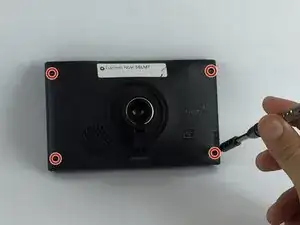

locate the crevice between the front and back panel.
-

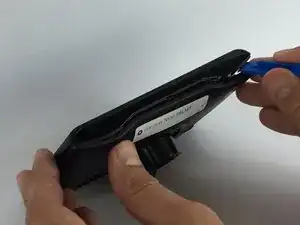

Use the plastic opening tool to wedge the device open.
-

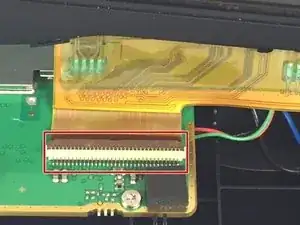

Carefully disconnect the ribbon from the ZIF connector.
-
-
-

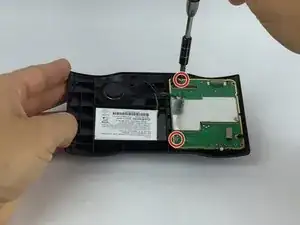

Locate the two 5.0 mm screws and use the T5 Torx screwdriver to remove them.
-
Once the screws are removed flip the motherboard over and locate the blue (+) and black (-) wires connected to the speaker.
-
-
-

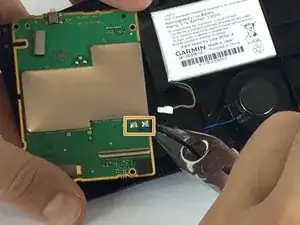

Use the crimping tool to cut the wires from the motherboard.
-

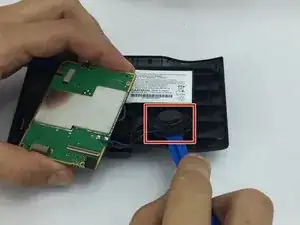

Use plastic opening tool or fingers to remove the speaker.
-
-
-

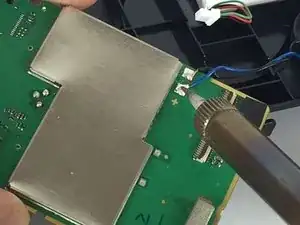

Replace speaker and solder the wires back to their original positions (Black negative and Blue positive). How To Solder and Desolder Connections
-
To reassemble your device, follow these instructions in reverse order.
