Introduction

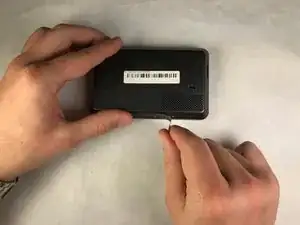

This device can be identified utilizing the criterion on the device page. When replacing the screen, be sure to set aside the following tools: T5 Torx screwdriver and plastic opening tool.
Tools
-

                  -

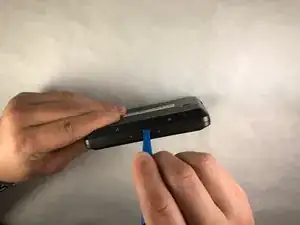

            Once the screws are removed, use the plastic opening tool to carefully separate the body from the screen encasing.

-

-

                  -

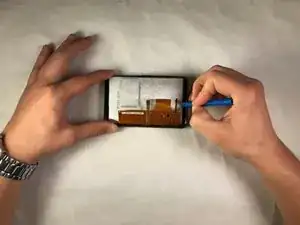

            Once the body of the nüvi is separated, carefully flip the tabs on the motherboard that secure the ribbon cable to the motherboard and disconnect.

-

-

                  -

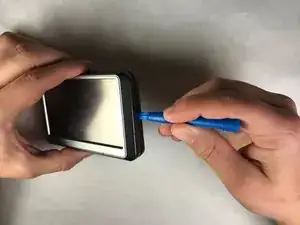

            Use a plastic opening tool to loosen the three clips located on the top of the screen encasing to a position that loosens the hold on the screen.

-

-

                  -

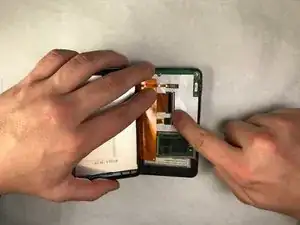

            Use a plastic opening tool to loosen the two clips on the short sides of the Nuvi screen encasing to a position that allows the removal of the screen.

-

To reassemble your device, follow these instructions in reverse order.
